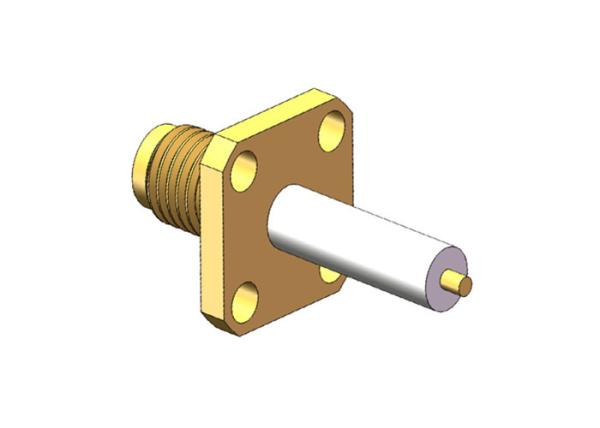

Four Holes Flange Panel Mount 50Ω 18GHz SMA RF Connector
Four Holes Flange Panel Mount 50Ω 18GHz SMA RF Connector
Four Holes Flange Panel Mount 50Ω 18GHz SMA RF Connector
Four Holes Flange Panel Mount 50Ω 18GHz SMA RF Connector
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMA-KFD1308
Certification :
ROHS, ISO-9001-2015
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1,000,00 Pieces Per Month
Delivery Time :
Within 3-4 weeks
Packaging Details :
Standard Export Carton
Item :
SMA RF Conector
Plating :
Gold Plating
Gender :
Female
Impedance :
50Ω
Frequency :
DC~18GHz
Lifetime :
500 Cycles
Body :
Brass
Application :
audio/vedio/microwave
Description

SMA Gold Plated Four Holes Flange Panel Mount RF Connector

SMA series is a miniature RF coaxial connector developed and produced according to Mil-C-39012. It has the characteristics of small volume, good bandwidth and excellent electrical performance.

SMA is the most widely used RF coaxial connector in microwave communication and microwave measurement equipment. The high performance connector developed by our company can reach 20GHz.

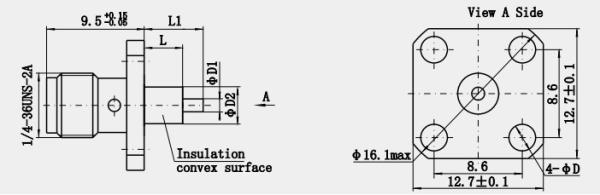

Interface Dimensions:

Four Holes Flange Panel Mount 50Ω 18GHz SMA RF Connector

Key Features:

  • With bulkhead, 2 holes panel, 4 holes panel or mountless options.
  • Frequency range up to 18GHz Sub-miniature coaxial connectors
  • Using a threaded interface
  • Available in passivation or gold plating
  • Brass and stainless steel material options
  • Wide variety of orientations and PCB terminations
  • Available in straight or right angle versions
  • Broad range with male, female and adapters variants.
  • RoHS compliant

Specifiacation of Sma Rf Connectors:

Interface according to IEC60169-15
Impedance 50Ω
Freqency Range DC to 18GHz
Insertion Loss ≤0.30dB
VSWR ≤1.3
Insulation Resistance ≥5000MΩ
Center Contact Resistance ≤3mΩ
Outer Contact Resistance ≤2mΩ
Mating Cycles ≥500
Temperature Range -65-+165℃
Dielectric PTFE

More Detail of SMA RF Coax Connectors:

Four Holes Flange Panel Mount 50Ω 18GHz SMA RF ConnectorFour Holes Flange Panel Mount 50Ω 18GHz SMA RF Connector

Model No. L L1 D D1 D2 Note
SMA-KFD1308 11.7 13.1 2.6 1.3 4.1
SMA-KFD1318 7 17 2.6 1.3 4.1
SMA-KFD1367 5 11 2.6 1.3 4.1
SMA-KFD1393 8.4 9.4 2.6 1.3 4.1
SMA(S)-KFD1414 23.9 27 2.6 1.3 4.1 Water proof

Product Cataloge:

RF Adapter
SMA RF Connector
SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
Millimeter Wave Connectors(2.4mm, 2.92mm)
RF Cable Assemblies
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints

Application:

  1. Microwave Systems Telecommunications
  2. Space
  3. 5G Solutions
  4. Measurement Systems
  5. Mobile Telephone WiFi Antennas Systems

Related Product

1.SMA Female Bulkhead Mount RF Connectors for PCB

Four Holes Flange Panel Mount 50Ω 18GHz SMA RF Connector

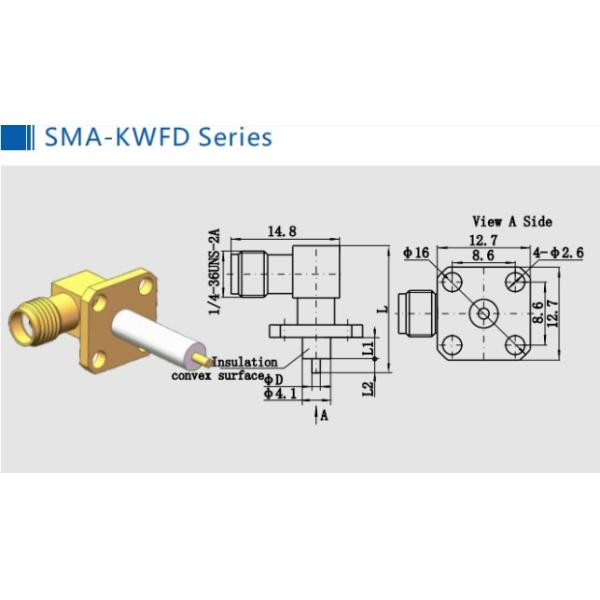

2.SMA 4-Holes Flange Mount Right Angle RF Coax Connectors

Four Holes Flange Panel Mount 50Ω 18GHz SMA RF Connector

Model No. L L1 L2 D Note
SMA-KWFD 29 15 2.9 1.3
SMA-KWFD8 15.1 3 1 1.3
SMA-KWFD103 22.4 5.4 5.7 1.3
SMA-KWFD113 34 20 2.9 1.3
SMA-KWFD118 20.1 4.8 4.2 1.3
SMA-KWFD120 16.1 4 1 1.3
SMA-KWFD122 17.4 2.3 4 1.3

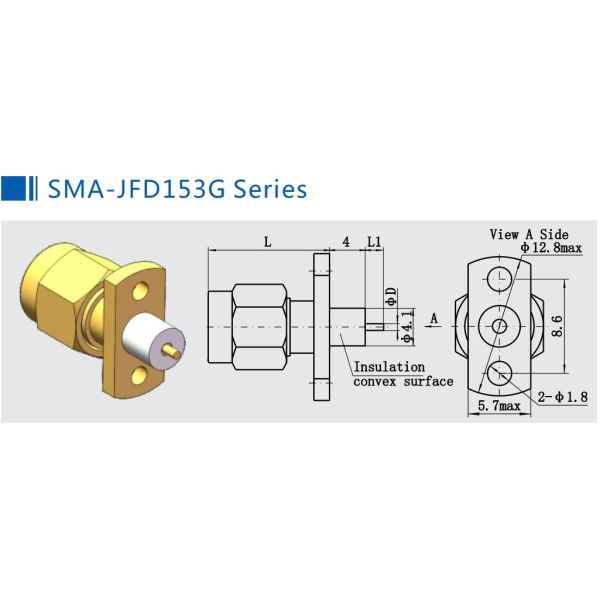

3.Brass 2 Holes Flange Mount SMA Plug RF Coax Connector

Four Holes Flange Panel Mount 50Ω 18GHz SMA RF Connector

Model No. L L1 D Note
SMA-JFD153G 13.2max 1.5 0.8 Stainless steel housing
SMA-JFD172 13.2max 3 1.3
SMA-JFD173 17.2max 3 1.3

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
