DC to 18GHz PCB Mount SMA RF Connector Female Jack Solder
DC to 18GHz PCB Mount SMA RF Connector Female Jack Solder
DC to 18GHz PCB Mount SMA RF Connector Female Jack Solder
DC to 18GHz PCB Mount SMA RF Connector Female Jack Solder
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMA-KHD2
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000,000pcs per week
Delivery Time :
within 3 weeks
Packaging Details :
Standard Export Carton
Product name :
RF Connector
Plating :
Gold Plated
Impedance :
50Ω
Certificate :
CE ROHS
Dielectric :
PTFE
Type :
RF Connector
Style :
Straight
Material :
Brass
Description

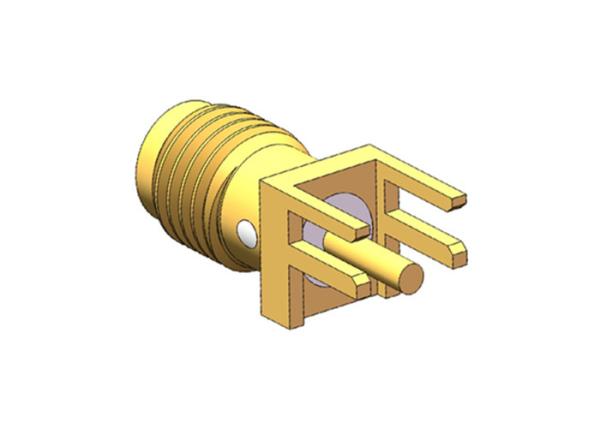

Female Jack Solder PCB Mount SMA RF Connector

TYPE SMA is a kind of RF coaxial connectors that is widely applied, with small sized thread coupling. Characteristic impedance is 50ohm. The characteristic of connectors is in wide frequency range, excellent performance, high reliability. They are used in connection with RF cable or microstrip line in RF circuit of the WLAN system, controlled program, microwave equipment and the digital communication system.The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.

Specifiacation:

Interface according to IEC60169-15
Impedance 50Ω
Freqency Range DC to 18GHz
Insertion Loss ≤0.30dB
VSWR ≤1.2(DC-6GHz)
Insulation Resistance ≥5000MΩ
Center Contact Resistance ≤3mΩ
Outer Contact Resistance ≤2mΩ
Mating Cycles ≥500
Temperature Range -65-+165℃
Dielectric PTFE

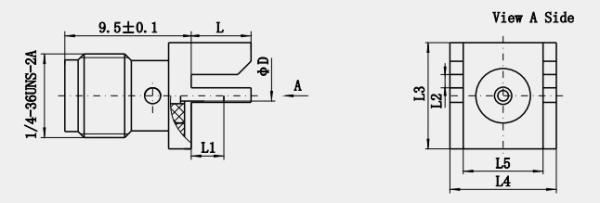

Detailed Drawing

DC to 18GHz PCB Mount SMA RF Connector Female Jack Solder

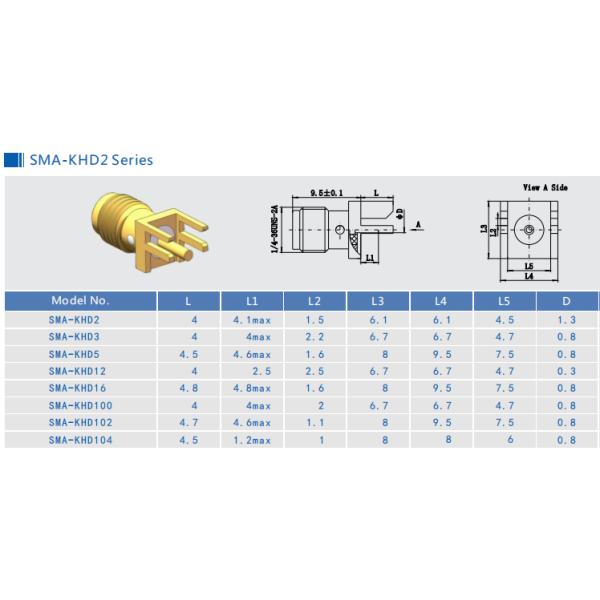

There also have other SMA RF Connector:

DC to 18GHz PCB Mount SMA RF Connector Female Jack Solder

Application:

- Wireless
- Antennas

- Broadband

- Instrumentation
- Phased array antennas

- Board-to-board interconnect

Product Cataloge:

RF Adapter
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
RF Cable Assemblies
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
TNC RF Connector
N Type RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
