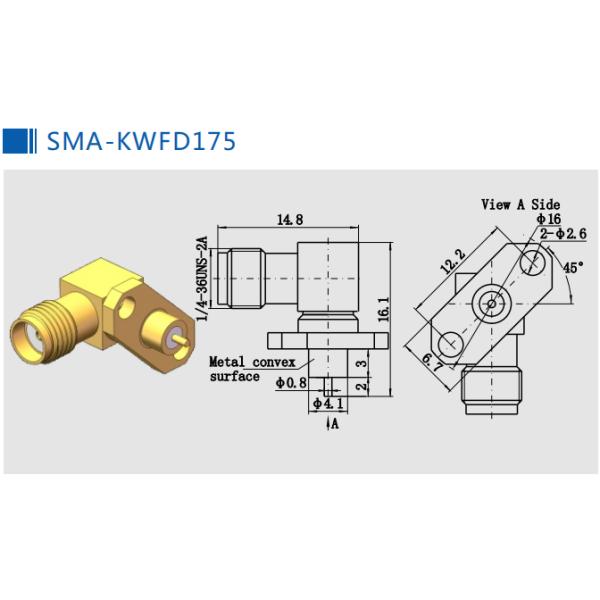

Gold Plated 1.3VSWR SMA RF Connector Right Angle SMA Connector Female 50Ohm
Gold Plated 1.3VSWR SMA RF Connector Right Angle SMA Connector Female 50Ohm
Gold Plated 1.3VSWR SMA RF Connector Right Angle SMA Connector Female 50Ohm
Gold Plated 1.3VSWR SMA RF Connector Right Angle SMA Connector Female 50Ohm
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMA-KWFD175
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 Pieces Per Month
Delivery Time :
Within in 3 weeks
Packaging Details :
Standard Export Carton
Product name :
SMA RF Coaxial Conector
Plating :
Gold Plated
Gender :
Female/Socket
Impedance :
50Ω
Frequency :
DC~18GHz
Durability :
500 Cycles
Application :
Antenna Microwave
Material :
Brass
Description

Gold Plated Right Angle SMA Connector Female 50Ohm

SMA series is a kind of mini high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012 by Xi'an Elite Electronic Industrial Co., Ltd. With characteristics of small volume,good bandwidth,superior electrical characteristics. It is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.

Advantages:

1. Quick connect, push-on or standard interface , straight, 90 degrees versions,as well as bulkhead or 4 holes panel configurations

2. High quality and quick combinations by simply screwing two connectors together with no soldering or crimping required

3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc

4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz

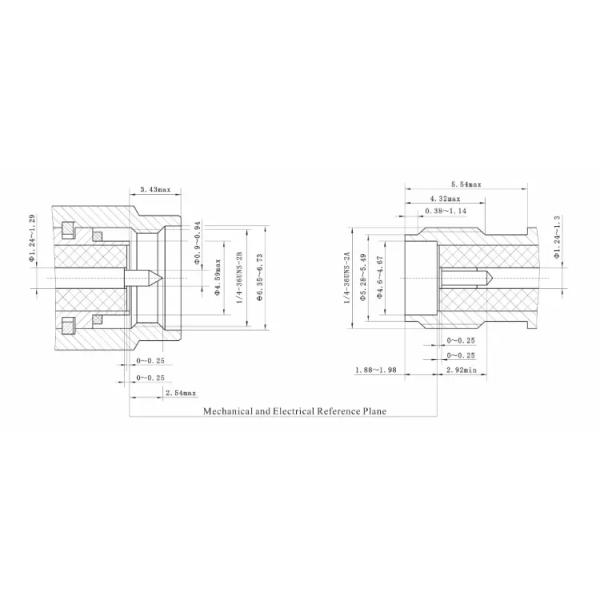

Interface Dimentions:

Gold Plated 1.3VSWR SMA RF Connector Right Angle SMA Connector Female 50Ohm

Specifications:

Electronic and Material Characterials
Impedance 50Ohm
Frequency Range DC~18GHz
Rated Voltage 335 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance 1000 VRMS (Maximum sea-level)
VSWR ≤1.3
Insulation Resistance ≥5000MΩ
Center conductor Male Brass gold plated
Female Beryllium copper gold plated
Shell and other metal parts Brass gold plated
Cable sheath Brass nickle plated
Insulator PTFE
Seal ring Silicon rubber
Mating torque 0.79 -1.13 N.m

More Pictures of

Gold Plated Right Angle SMA Connector Female 50Ohm:

Gold Plated 1.3VSWR SMA RF Connector Right Angle SMA Connector Female 50Ohm

Product Cataloge:

RF Cable Assemblies
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
BNC RF Connector
Millimeter Wave Connectors(2.4mm, 2.92mm)

Application:

*Medical
*Board-to-board interconnect
*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications

NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
