2.92mm Female Jack Millimeter Wave RF Bulkhead Connector
2.92mm Female Jack Millimeter Wave RF Bulkhead Connector
2.92mm Female Jack Millimeter Wave RF Bulkhead Connector
2.92mm Female Jack Millimeter Wave RF Bulkhead Connector
Specifications
Brand Name :
ELT
Model Number :
K-KFD3
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
35000pcs/year
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Insulator :
PTFE
Gender :
Jack
Product name :
2.92mm,K type,SMK
Key features :
4 Holes Flange Panel Connectors
Type :
Millimeter Wave Connectors
Plating :
Gold plated
Application :
Computer/LANs
Material :
Brass
Description

2.92mm Female Jack Millimeter Wave RF Bulkhead Connector


The high precision 50Ohm coaxial 2.92 mm (Female) connectors for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.

Specification:

Impedance 50 Ω
Frequency Range DC - 40GHz
Voltage Rating 250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage 750 VRMS (Max. Sea Level)
Voltage Standing Wave Ratio
VSWR		 ≤ 1.05 + 0.005f
Contact Resistance Center Conductor ≤ 3.0 mΩ
Outer Conductor ≤ 2.0 mΩ
Insulation Resistance ≥ 5000MΩ
Inner Conductor Male plug: Brass, Gold Plated
Female Jack: BeCu, Gold Plated
Resilient Contact BeCu, Nickel Plated
Body / Shell / Housing Brass, Gold Plated
Stainless Steel, Passivated
Insulator PEI
Gasket Silicone Rubber
Temperature -55℃ ~ +125℃
Durability 500 Cycles
Torque 0.79 ~ 1.13 N.m

Features:

  • Connector mating interface per MIL-STD-348
  • It can mate and interchange with SMA series, K series, 2.4mm, 3.5mm connectors.
  • Superior electrical performance up to 40GHz
  • It has the advantages of small volume, light weight, high use frequency, reliable connect.
  • Great for applications that require high frequency transmission
  • Female contacts have unique three-slot construction
  • An air dielectric with a loss-loss plastic center conductor support.
  • It have the high use frequency, reliable connection.

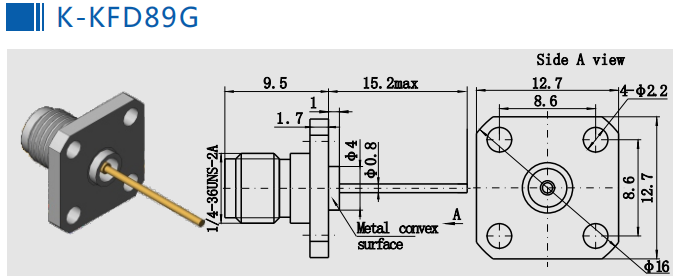

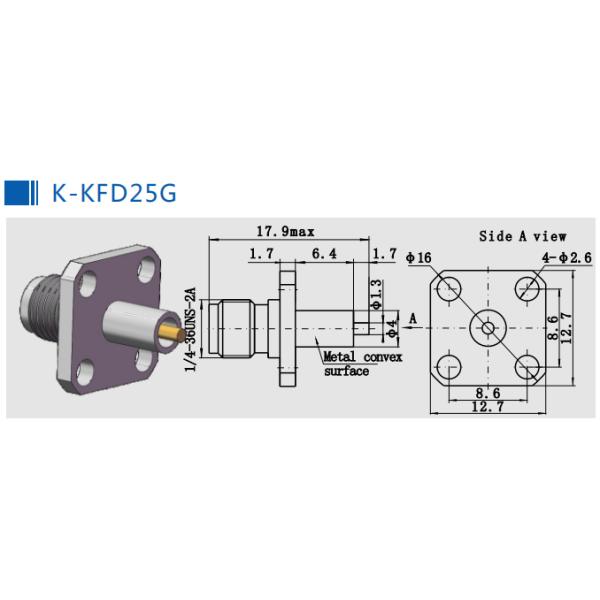

Outline Drawing of 2.92mm Female Jack Millimeter Wave RF Bulkhead Connector(mm):

2.92mm Female Jack Millimeter Wave RF Bulkhead Connector


Application:

Network Satcom
Computer/LANs Computer/LANs
Mobile communication Instrumentation
Base Station Mobile communication
Outdoor facilities Radar, microwave
Telecommunications Instrumentation
Automotive Jump line join
Basic facility Radio, TV aerial system

Other 2.92mm Male Female RF Connector

Part Number
Description
K-KFD21
2.92mm Type K Female RF Coaxial Connector
K-KFD89G
Stainless steel 2.92mm Type K Female RF Coaxial Connector
K-KFD25G
Stainless steel 2.92mm Type K Female RF Coaxial Connector

K-JFD9G
Stainless steel 2.92mm Type K Male RF Coaxial Connector

1.

2.92mm Female Jack Millimeter Wave RF Bulkhead Connector

2.

2.92mm Female Jack Millimeter Wave RF Bulkhead Connector

3.

2.92mm Female Jack Millimeter Wave RF Bulkhead Connector

4.

2.92mm Female Jack Millimeter Wave RF Bulkhead Connector

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
