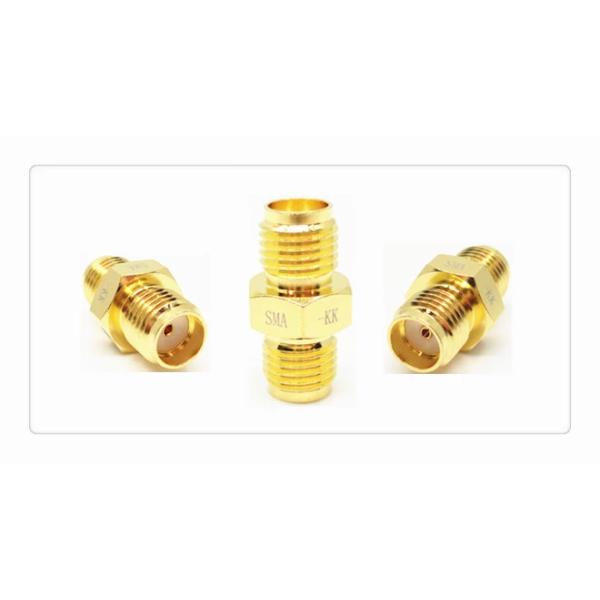

50Ohm Gold Plated SMA Straight Female to Female RF Coaxial Adapter
50Ohm Gold Plated SMA Straight Female to Female RF Coaxial Adapter
50Ohm Gold Plated SMA Straight Female to Female RF Coaxial Adapter
50Ohm Gold Plated SMA Straight Female to Female RF Coaxial Adapter
50Ohm Gold Plated SMA Straight Female to Female RF Coaxial Adapter
50Ohm Gold Plated SMA Straight Female to Female RF Coaxial Adapter
50Ohm Gold Plated SMA Straight Female to Female RF Coaxial Adapter
50Ohm Gold Plated SMA Straight Female to Female RF Coaxial Adapter
50Ohm Gold Plated SMA Straight Female to Female RF Coaxial Adapter
50Ohm Gold Plated SMA Straight Female to Female RF Coaxial Adapter
50Ohm Gold Plated SMA Straight Female to Female RF Coaxial Adapter
50Ohm Gold Plated SMA Straight Female to Female RF Coaxial Adapter
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMA-KK
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1,000,000 Pieces Per Month
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Product Name :
SMA RF Adapter
Plating :
Gold Plated
Impedance :
50Ω
Frequency Range :
DC~18GHz
Durability :
500 Cycles
Application :
RF, Satcom /Antenna/Audio
Material :
Brass
Certificate :
ROHS, ISO-9001-2015
Description

50Ohm Gold Plated SMA Straight Female to Female RF Coaxial Adapter

High Performance SMA RF Adapters:

1. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions as well as bulkhead or 4 holes panel configurations.
2. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
3. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18GHz (Our SMA RF connectors can be 20GHz).

Features:

  • Sub-miniature coaxial connectors
  • Screw-on coupling
  • Light weight, compact and vibration proof design
  • Available in nickel or gold plating , in a wide variety of orientations and PCB terminations
  • Broad range with male, female and adapters variants.
  • Frequency range up to 18GHz
  • Intermateable with SMA2.9.
  • Excellent return loss

50Ohm Gold Plated SMA Straight Female to Female RF Coaxial Adapter

Applicable Standard:

MIL-C-39012
IEC 60169-15

Our Advantanges:

  • 20 years experience on RF&Microwave Components
  • Qualified components supplier of China Spacecraft
  • Rich cooperation experience with national high tech projects
  • Military and commercial grade components for choice
  • Strict quality (QA Report),ISO9001,ROHS,CE,UL
  • Factory area 35,000 sq.m with almost 1,000 experience staff
  • 500+ national patents with 15 production lines
  • Annual output value above US$300 million
  • 50+ series products with 100,000 types
  • Short delivery and competitive price
  • Custom-made(ODM) orders are welcomed

Electrical Characteristics:

Impedance 50Ω
Frequency Range DC~18GHz
Rated Voltage 335VRMS*
Dielectrics Voltage-resistance 1000VRMS*
Insulation Resistance ≥5000MΩ
Center Resistance Center Conductor ≤3.0mΩ
Outer Conductor ≤2.0mΩ
VSWR ≤1.3
Crimping Sleeve 0.79－1.13N .m

Material & Mechanical Characteristics:

Material Plating
Body/Nut

Brass

Stainless Steel

Nickle Plated/Gold Plated

Passivated
Center Contacts

Brass (male)

Beryllium copper (female)

Gold plated

Gold plated
Outer Contact Beryllium copper Nickle Plated/Gold Plated
Gaskets Silicon rubber
Insulators PTFE

More Detail of

SMA Female to Female RF Coaxial Connector Adapter :

(Unit:mm)

50Ohm Gold Plated SMA Straight Female to Female RF Coaxial Adapter

Model Number Description
SMA-KK SMA female to female rf coaxial adapter
SMA-KKG Stainless steel SMA female to female rf coaxial adapter

Applications:

  • Microwave Systems Telecommunications
  • 5G Solutions
  • Measurement Systems
  • Mobile Telephone WiFi Antennas Systems

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
