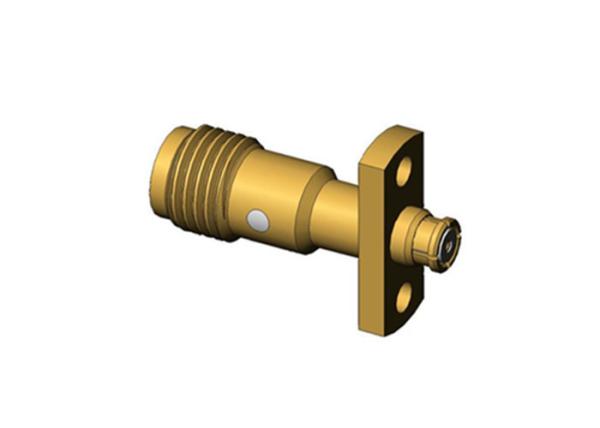

50Ω Flange Mount SMA Female to SMP Female Adapter
50Ω Flange Mount SMA Female to SMP Female Adapter
50Ω Flange Mount SMA Female to SMP Female Adapter
50Ω Flange Mount SMA Female to SMP Female Adapter
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMA/SMP-KFK18
Certification :
ROHS ISO-9001-2015
Place of Origin :
China
MOQ :
50
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000,000pcs per week
Delivery Time :
within 3 weeks
Packaging Details :
Standard Export Carton
Item :
SMA female to SMP female Adapter
Impedance :
50Ω
Dielectric :
PTFE
Type :
RF Adaptor
Application :
RF/Satcom/Network
Gender :
female to female
Material :
Gold Plated
Lifespan :
500 Circles
Insulator :
PTFE
Features :
flange mount
Description

2 Holes Flange Mount SMA female to SMP female RF Adapter connector

The SMA RF coaxial connector is a small, high frequency coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20 GHz.

SMP electrical connectors are snap-on RF coaxial connectors with subminiature size, light weight, good anti-vibration capability and wide frequency range up to 30 GHz (Our SMP coaxial RF connectors can reach up to 40 GHz or more), which makes them ideal RF connectors for intensive interconnection conditions where small size, high-performance and reliable connectors are needed.

As manufacturer, we can customize SMA SMP connectors and adapters as per your different requirement. Orientations in straight and right angle, with 2-hole or 4-hole flange or threaded bulkhead, hermetic and waterproof types are all available upon request.

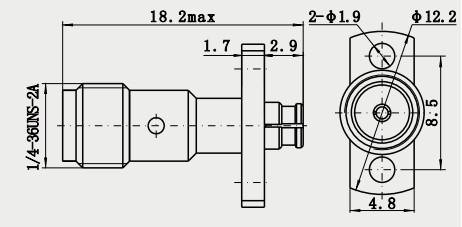

Outline Drawing and Picture(mm)

50Ω Flange Mount SMA Female to SMP Female Adapter

Electrical Characteristics of SMA RF Adapter

Impedance 50 Ω
Frequency Range DC - 18 GHz
Voltage Rating 335VRMS (Max. Sea Level)
Dielectric Withstand Voltage 1000 VRMS (Max. Sea Level)

VSWR

(Voltage Standing Wave Ratio)

 ≤ 1.3
Contact Resistance

Center Conductor ≤ 3.0 mΩ

Outer Conductor ≤ 2.0 mΩ
Insulation Resistance ≥ 5000 MΩ

Other SMA Male Female to SMA In-series Male Female RF Adapter

Part Number
Description
SMA/SMP-KFK1
SMA female to SMP female adapter
SMA/SMP-KFK11
SMA female to SMP female adapter
SMA/SMP-KFK2
SMA female to SMP female adapter
SMA/SMP-KFK12
SMA female to SMP female adapter

SMA/SMP-KFK14
SMA female to SMP female adapter
SMA/SMP-KFK20
SMA female to SMP female adapter

1.

50Ω Flange Mount SMA Female to SMP Female Adapter

2.

50Ω Flange Mount SMA Female to SMP Female Adapter

3.

50Ω Flange Mount SMA Female to SMP Female Adapter

4.

50Ω Flange Mount SMA Female to SMP Female Adapter

5.

50Ω Flange Mount SMA Female to SMP Female Adapter

6.

50Ω Flange Mount SMA Female to SMP Female Adapter

Application:

Network Satcom
Computer/LANs Computer/LANs
Mobile communication Instrumentation
Base Station Mobile communication
Outdoor facilities Radar,microwave
Telecommunications Instrumentation
Automotive Jump line join
Basic facility Radio, TV aerial system

Workshop & Exibition

50Ω Flange Mount SMA Female to SMP Female Adapter

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
