RF Coaxial Male Female SMA to BMA Adapter
RF Coaxial Male Female SMA to BMA Adapter
RF Coaxial Male Female SMA to BMA Adapter
RF Coaxial Male Female SMA to BMA Adapter
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMA-BMA-JK
Certification :
ROHS ISO-9001-2015
Place of Origin :
China
MOQ :
50
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000,000pcs per week
Delivery Time :
within 3 weeks
Packaging Details :
Standard Export Carton
Product name :
SMA Male to BMA Female RF Coaxial Adapter
Impedance :
50Ω
Type :
RF Adaptor
Feature :
Straight
Gender :
male to female
Durability :
500 Circles
Insulator :
PTFE
Plating :
gold Plated
VSWR :
≤1.3
Description

High Performance SMA Male to BMA Female RF Coaxial Adapter

1. SMP RF coaxial connector

SMP electrical connectors are snap-on RF coaxial connectors with subminiature size, light weight, good anti-vibration capability and wide frequency range up to 30GHz (Our SMP coaxial RF connectors can reach up to 40GHz or more), which makes them ideal RF connectors for intensive interconnection conditions where small size, high-performance and reliable connectors are needed.

2. BMA series

BMA series is a kind of blind-mate connector, it’s developed and produced according to IEC1169-33. Adopted new type spring plate structure, the connector with reliable contact and superior electrical characteristics. The advantage is axial and radial can float, every point connectors average space is small, weight is light, it can be used in the blind mate of chassis cabinets. BMA is widely used in chassis cabinets module connect.


As manufacturer, we can customize BMA SMP connectors and adapters as per your different requirement. Orientations in straight and right angle, with 2-hole or 4-hole flange or threaded bulkhead, hermetic and waterproof types are all available upon request.

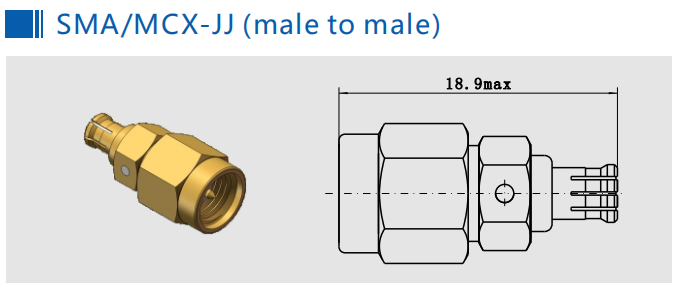

Outline Drawing and Picture(mm)

RF Coaxial Male Female SMA to BMA Adapter

Other SMA Male Female to D4/SMP/MCX Male Female RF Adapter

Part Number
Description
SMA/MCX-JJ
K Type 2.92mm male to SSMP female rf adapter

MCX/MMCX-KYK
MCX female to MMCX female rf adapter

SMA/BMA-KYJ
SMA female to BMA male rf adapter

K/SSMP-KK1
K female to SSMP female rf adapter

K/SSMP-KFKG
K female to SSMP female flange mount rf adapter
K/SSMP-KFJ1G
K female to SSMP male flange mount rf adapter

1.

RF Coaxial Male Female SMA to BMA Adapter

2.

RF Coaxial Male Female SMA to BMA Adapter

3.

RF Coaxial Male Female SMA to BMA Adapter

4.

RF Coaxial Male Female SMA to BMA Adapter

5.

RF Coaxial Male Female SMA to BMA Adapter

6.

RF Coaxial Male Female SMA to BMA Adapter

Application:

Network Satcom
Computer/LANs Computer/LANs
Mobile communication Instrumentation
Base Station Mobile communication
Outdoor facilities Radar,microwave
Telecommunications Instrumentation
Automotive Jump line join
Basic facility Radio, TV aerial system

Workshop & Exibition

RF Coaxial Male Female SMA to BMA Adapter

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
