Kovar Male Bulkhead Smooth Bore Connector SMP Plug
Kovar Male Bulkhead Smooth Bore Connector SMP Plug
Kovar Male Bulkhead Smooth Bore Connector SMP Plug
Kovar Male Bulkhead Smooth Bore Connector SMP Plug
Kovar Male Bulkhead Smooth Bore Connector SMP Plug
Kovar Male Bulkhead Smooth Bore Connector SMP Plug
Kovar Male Bulkhead Smooth Bore Connector SMP Plug
Kovar Male Bulkhead Smooth Bore Connector SMP Plug
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMP-JYD91G-S
Certification :
CE ROHS ISO-9001-2015
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000000 Pieces Per Month
Delivery Time :
Within in 3 weeks
Packaging Details :
Standard Export Carton
Product name :
SMP RF Coaxial Conector
Impedance :
50Ω
Durability :
500 Cycles
Gender :
Male
Body Style :
Straight
Frequency Range :
DC-40Ghz
Mount Method :
Bulkhead Mount
Certificate :
CE Rohs ISO-9001-2015
Description

Kovar Male bulkhead Smooth Bore Connector SMP Plug

SMP RF Connector Introduction

SMP is a miniature push-on RF coaxial connector,which has the characters of small volume,light weight,excellent seismic performance and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz) and the plug has three interface form with full detent, limited detent and unthreaded hole(including with braking).Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of broad to broad connectors. Apply for the install situation with the requirement of high reliability modular intensive.

Specification

Electrical Characteristics
Impedance
50Ω
Frequency Range
DC~40GHz
Rated Voltage
170VRMS*
Dielectrics Voltage-resistance
500VRMS*
Insulation Resistance
≥2000MΩ
Contact Resistance
Outer conductor
≤2.5mΩ
Center Cconductor
≤6mΩ
VSWR
DC~18GHz
18~26.5GHz
26.5~40GHz
Straight Connector
≤1.25
≤1.3
≤1.5
Adapter
≤1.2
≤1.3
≤1.5
Other ≤1.3

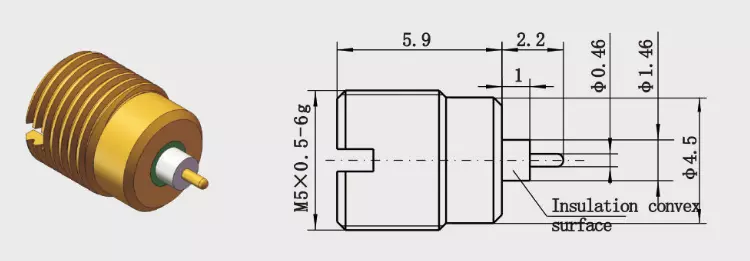

Detailed Drawing of Kovar Male Bulkhead Smooth Bore Connector SMP Plug :

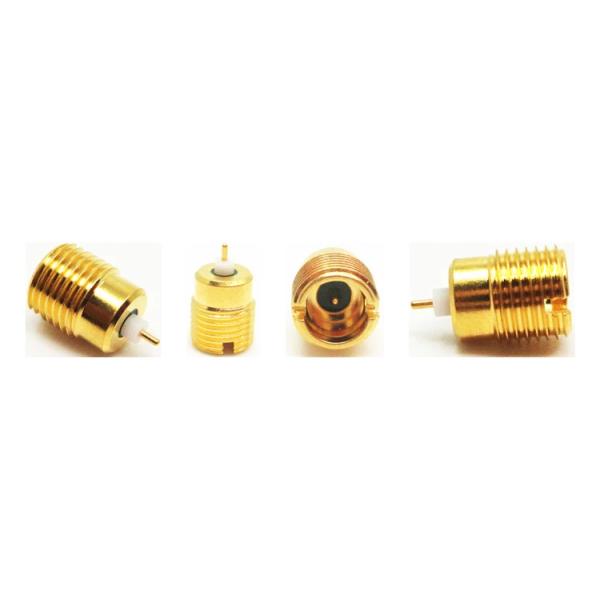

Kovar Male Bulkhead Smooth Bore Connector SMP Plug

Kovar Male Bulkhead Smooth Bore Connector SMP Plug
Features and Benefits

DC to 40GHz
Sub-miniature
Gold plated
Compact size
Male & Female, Straight & Right Angle choice
Push-on or snap coupling
PCB & cable mount connectors
Full detent, Limited detent and Smooth bore
Normal type and hermetic, Flange mount & Thread-In Mount choice
Cable mount versions for both flexible and semi-rigid cable Materials

Applications

- Antennas

- Instrumentation

- Broadband
- Board-to-board interconnect
- Phased array antennas

Product Cataloge:

RF Cable Assemblies
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
N Type RF Connector
TNC RF Connector
MCX/MMCX RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)


NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
