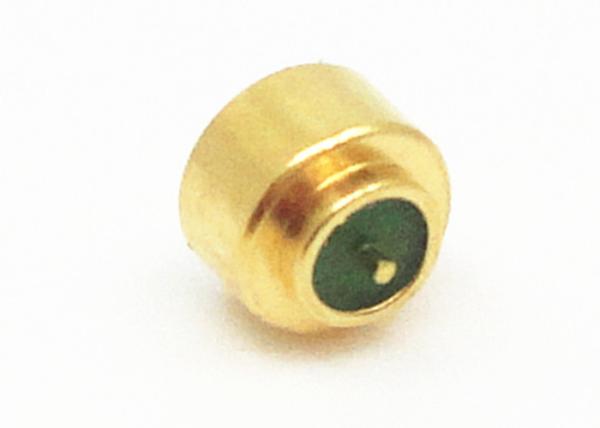

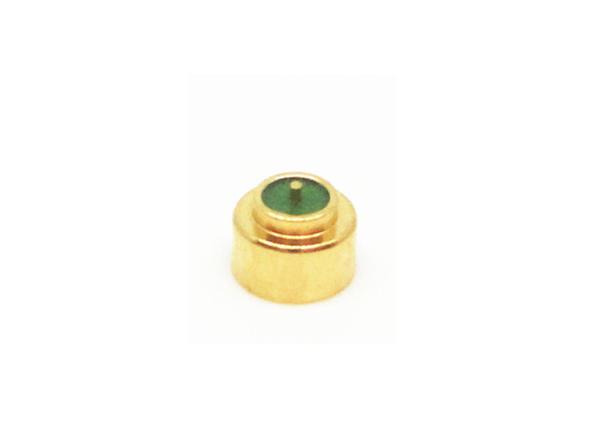

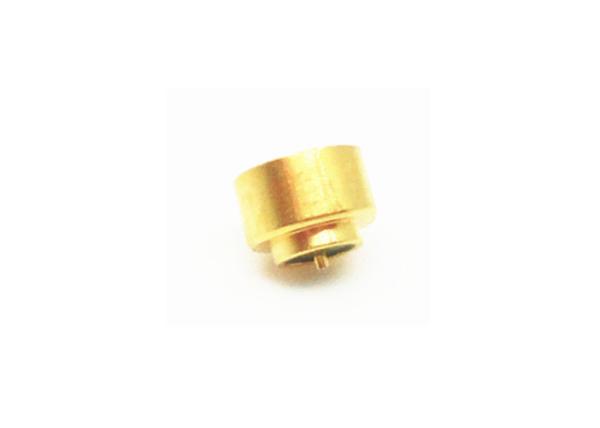

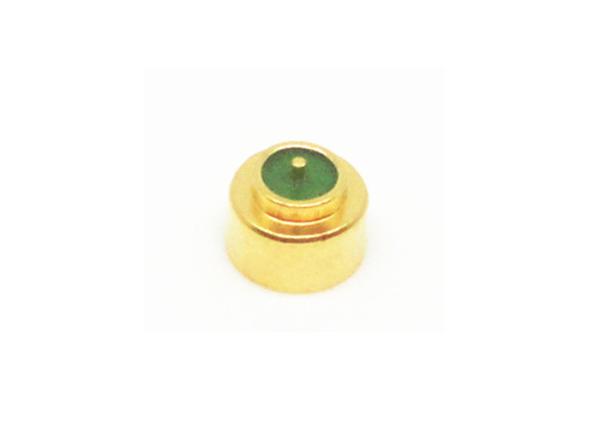

SMPM Coaxial Cable Connectors Hermetic Seal Limited Detent Female Connector
SMPM Coaxial Cable Connectors Hermetic Seal Limited Detent Female Connector
SMPM Coaxial Cable Connectors Hermetic Seal Limited Detent Female Connector
SMPM Coaxial Cable Connectors Hermetic Seal Limited Detent Female Connector
SMPM Coaxial Cable Connectors Hermetic Seal Limited Detent Female Connector
SMPM Coaxial Cable Connectors Hermetic Seal Limited Detent Female Connector
SMPM Coaxial Cable Connectors Hermetic Seal Limited Detent Female Connector
SMPM Coaxial Cable Connectors Hermetic Seal Limited Detent Female Connector
SMPM Coaxial Cable Connectors Hermetic Seal Limited Detent Female Connector
SMPM Coaxial Cable Connectors Hermetic Seal Limited Detent Female Connector
Specifications
Brand Name :
ELT (Elite)
Model Number :
SSMP(M)-JHD8
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1,000,000pcs per month
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Product name :
SSMP Connector
Rated Voltage :
170VRMS*
Material :
Brass
Plating :
Gold Plated/ Nickel Plated
Impedance :
50Ω
Frequency Range :
DC~50GHz
Gender :
Female
Lifespan :
500Cycles
Description

Hermetic Seal Limited Detent Female SMPM RF Connector Coaxial SSMP Connector

SMPM is a miniature push-on RF coaxial connector which have the characters of small volume(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting and the plug has two interface form with full detent and unthreaded hole.

Features

•Allows for axial and radial misalignment (blind mate applications)

•Excellent reliability where extreme shock & vibration conditions are experienced

•35% smaller size than the SMP connectors

•Performance up to 50 GHz

Specification
Electrical Characteristics
Impedance 50Ω
Frequency Range DC~50GHz
Rated Voltage 170VRMS*
Dielectrics Voltage-resistance 500VRMS*
Insulation Resistance ≥2000MΩ
Center Resistance Outer conductor Normal≤3.5mΩ, Sealing≤5mΩ
Center conductor Normal≤8mΩ, Sealing≤30mΩ
DC~18GHz 18~26.5GHz 26.5~40GHz 40~50GHz
VSWR ≤1.25 ≤1.3 ≤1.4 ≤1.5
Material & Mechanical Characteristics
Center Conductor Male Sn-P Bronze/Kovar, Gold plated
Female Beryllium bronze, Gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts

Brass/Kovar Gold plated

Stainless steel Passivation
Insulators Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate ≤1.01325×10-3Pa·cm3/s

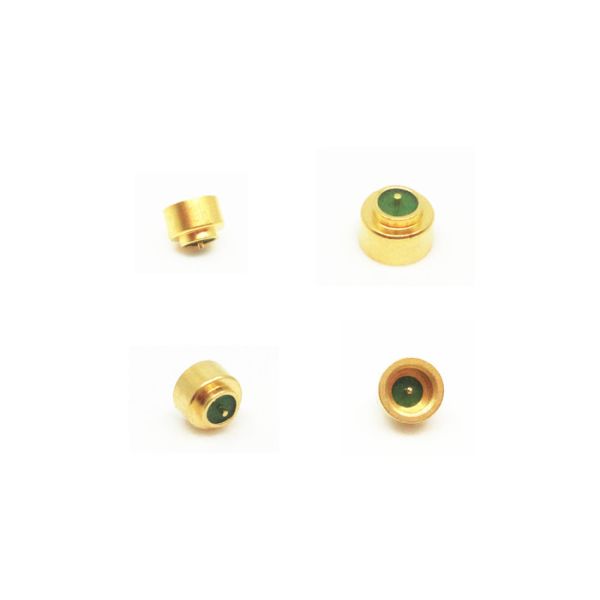

SMPM Coaxial Cable Connectors Hermetic Seal Limited Detent Female ConnectorSMPM Coaxial Cable Connectors Hermetic Seal Limited Detent Female Connector

Application:

* Network

* Satcom

* Computer/LANs

* Base Station

* Outdoor facilities

* Instrumentation

* Automotive

* Jump line join

* Basic facility

* Radar microwave

* Telecommunications

* Mobile communication

* Radio, TV aerial system

Product Cataloge:

RF Adapter
Waveguide to Coaxial Adapter
TNC RF Connector
N Type RF Connector
Microwave Rotary Joints
RF Cable Assemblies
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
J30J Series Connector
Glass-to-metal Hermetic Seals
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

Packaging Details:


* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
