SMPM Push On RF Connectors Cable Type Micro Coax Connector CXN3506 MF108A
SMPM Push On RF Connectors Cable Type Micro Coax Connector CXN3506 MF108A
SMPM Push On RF Connectors Cable Type Micro Coax Connector CXN3506 MF108A
SMPM Push On RF Connectors Cable Type Micro Coax Connector CXN3506 MF108A
SMPM Push On RF Connectors Cable Type Micro Coax Connector CXN3506 MF108A
SMPM Push On RF Connectors Cable Type Micro Coax Connector CXN3506 MF108A
Specifications
Brand Name :
ELT (Elite)
Model Number :
SSMP-K506-1
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1,000,000pcs per month
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Product name :
SSMP Connector
Gender :
Female
Material :
Brass
Plating :
Gold Plated/ Nickel Plated
Impedance :
50Ω
Frequency Range :
DC~50GHz
Rated Voltage :
170VRMS*
Model :
SSMP-K506
Description

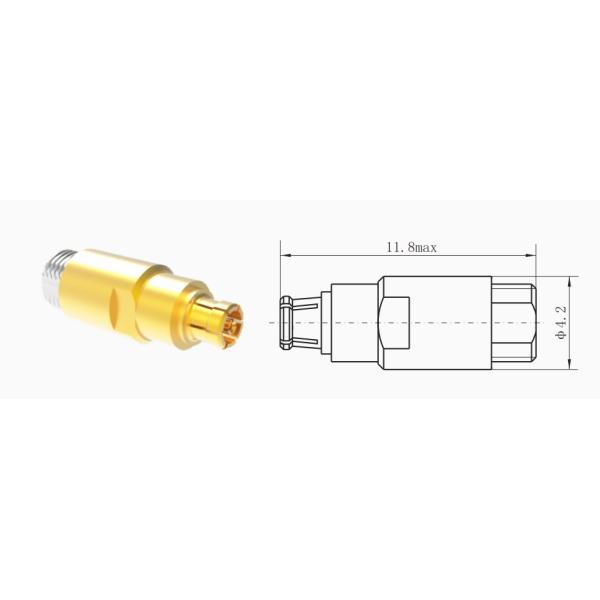

Female Straight SMPM RF Connector Mini Coaxial Connector Cable Type CXN3506, MF108A

SMPM is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting and the plug has two interface form with full detent and unthreaded hole.

Specification
Electrical Characteristics
Impedance 50Ω
Frequency Range DC~50GHz
Rated Voltage 170VRMS*
Dielectrics Voltage-resistance 500VRMS*
Insulation Resistance ≥2000MΩ
Center Resistance Outer conductor Normal≤3.5mΩ, Sealing≤5mΩ
Center conductor Normal≤8mΩ, Sealing≤30mΩ
DC~18GHz 18~26.5GHz 26.5~40GHz 40~50GHz
VSWR ≤1.25 ≤1.3 ≤1.4 ≤1.5
Material & Mechanical Characteristics
Center Conductor Male Sn-P Bronze/Kovar, Gold plated
Female Beryllium bronze, Gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts

Brass/Kovar Gold plated

Stainless steel Passivation
Insulators Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate ≤1.01325×10-3Pa·cm3/s

Features

•Performance up to 65GHz

•35% smaller size than the SMP connectors

•Allows for axial and radial misalignment (blind mate applications)

•Excellent extreme shock&vibration ability

SMPM Push On RF Connectors Cable Type Micro Coax Connector CXN3506 MF108A

SMPM Push On RF Connectors Cable Type Micro Coax Connector CXN3506 MF108A

Application:

* Network

* Satcom

* Computer/LANs

* Base Station

* Automotive

* Jump line join

* Basic facility

* Radio, TV aerial system

* Mobile communication

* Outdoor facilities

* Radar,microwave

* Telecommunications

* Instrumentation

Product Cataloge:

RF Adapter
MCX/MMCX RF Connector
Glass-to-metal Hermetic Seals
N Type RF Connector
Microwave Rotary Joints
RF Cable Assemblies
SMA/SSMA RF Connector
SMP/SSMP RF Connector
J30J Series Connector
TNC RF Connector
Waveguide to Coaxial Adapter
BNC RF Connector

NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
