SMA Male Gold Plated RF Coax Plug for 2#Semi-rigid/Semi-flexible Cable

The SMA RF coaxial connector is a compact, high-frequency coaxial connector designed in accordance with MIL-C-39012. It boasts several advantages, including its diminutive size, broad bandwidth, exceptional mechanical and electrical performance, and high dependability. It has become the most commonly used RF coaxial connector due to its widespread application in microwave communication, microwave measurement equipment, and other related areas. The range of high-performance connectors developed by our company can support frequencies up to 20GHz.

Specification:

Note:The specific data of the model are based on the data in the product specification sheet.

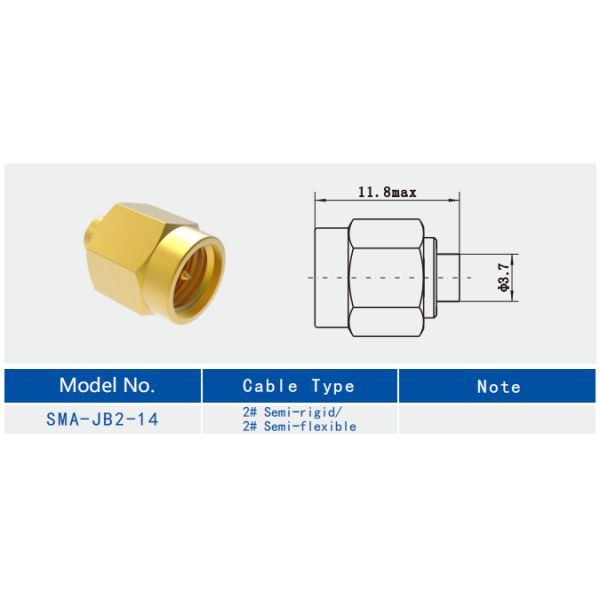

Outline drawing of SMA Male Gold Plated RF Coax Plug for 2#Semi-rigid/Semi-flexible Cable :

Product Features:

1. Small Size: SMA connectors are notably compact, making them useful in space-constrained applications.

2. Wide Bandwidth: SMA connectors are suitable for a broad range of frequencies, typically covering DC to 18 GHz or even higher.

3. High Performance: They exhibit excellent electrical performance, including low insertion loss and high return loss (reflection loss), which helps maintain signal integrity.

4. High Reliability: SMA connectors are designed to work reliably under various environmental conditions, including vibration, temperature changes, and other factors that could affect performance.

5. Mechanical Strength: Despite their small size, SMA connectors are mechanically robust and durable.

Application:

1. Microwave Communication: In point-to-point and point-to-multipoint microwave transmission systems, SMA connectors are used to connect antenna systems to transceiver equipment.

2. Test Equipment: SMA connectors are commonly found on RF test and measurement equipment such as network analyzers and signal generators because they ensure accurate signal transmission at high frequencies.

3. Satellite and Space Communication: Due to their reliability and ability to withstand environmental conditions, SMA connectors are very common in spacecraft and ground station communication equipment.

4. RF Components and Modules: SMA connectors can be used to connect RF amplifiers, converters, mixers, and other high-frequency electronic devices.

Product Cataloge:

NOTE:

We can supply over 1000 types of RF connectors, if it is not match with your request,pls contact us.
