Straight Gold Plated SMA Male to Female RF Connector Brass Adapter

The SMA RF coaxial connector stands out as an extremely compact and high-frequency suitable connector that conforms to the MIL-C-39012 specification. It is celebrated for its numerous benefits, which encompass a minimal size, wide frequency range, outstanding mechanical and electrical functionality, and increased dependability. Owing to its widespread usage in domains such as microwave communication and measurement apparatuses, it has achieved the status of the most frequently utilized RF coaxial connector. Our enterprise has engineered a range of these superior-performance connectors designed to withstand frequencies up to 20GHz.

Electrical Characteristics

Note:The specific data of the model are based on the data in the product specification sheet.

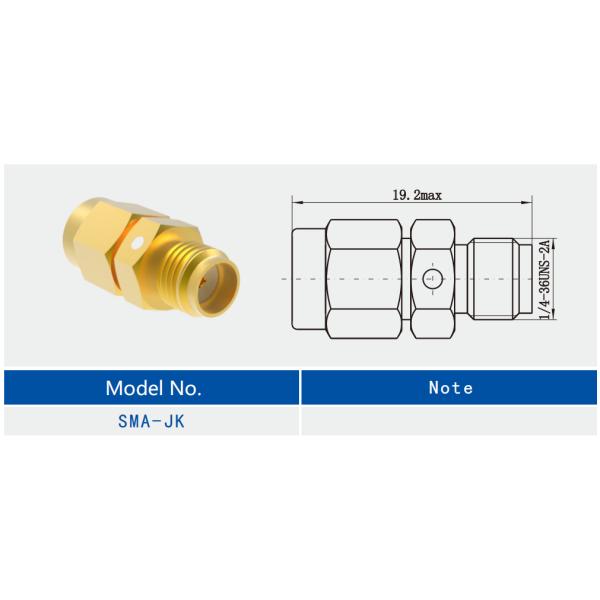

Product Drawing:

Product Features:

1. Durability: The brass construction provides considerable mechanical strength and durability, enabling it to withstand pressures and potential physical damage during normal use.

2. Surface Finish: To prevent oxidation and prolong life, brass adapters may be plated with gold or silver, among other surface treatments.

3. Applications: SMA brass adapters can be used in various RF applications, including microwave communications, radar systems, test equipment, and other electronic devices requiring high-frequency signal transmission.

4. Performance: Due to their design and material, SMA brass adapters offer low insertion loss and high return loss (reflection loss), which are crucial for maintaining signal integrity.

Application:

1. Wireless Networks: In establishing wireless infrastructure, such as Wireless Local Area Networks (WLANs), cellular base stations, and other wireless systems, SMA adapters might be utilized.

2. RF Amplifiers and Modules: In scenarios where signal input and output need to be connected to RF amplifiers, converters, or mixers, SMA adapters are a common choice.

3. Laboratory and Prototyping: In the development and testing of new RF circuits and devices, SMA adapters offer a reusable and reliable method of connection.

4. Medical Diagnostic Equipment: In some medical devices that use microwave frequencies for imaging or therapy inside the body, SMA adapters might be used to connect sensors or transmitters.

Packaging Details:

* Standard Export Carton

* According to customers' requirements

NOTE:

We can supply over 1000 types of RF connectors, if it is not match with your request,pls contact us.
