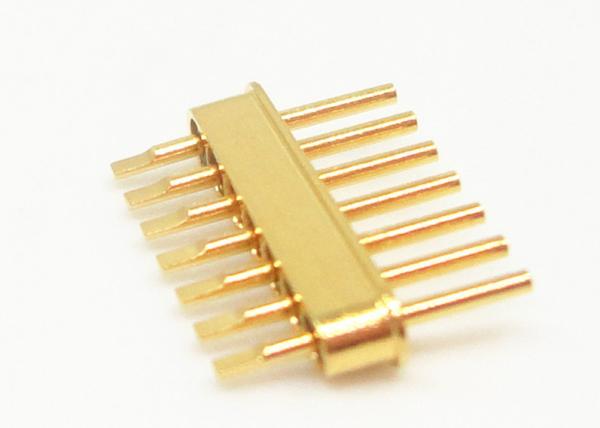

7 Pins Kovar 4j29 Hermetic Glass To Metal Seal Connectors Multi-pin Headers
7 Pins Kovar 4j29 Hermetic Glass To Metal Seal Connectors Multi-pin Headers
7 Pins Kovar 4j29 Hermetic Glass To Metal Seal Connectors Multi-pin Headers
7 Pins Kovar 4j29 Hermetic Glass To Metal Seal Connectors Multi-pin Headers
7 Pins Kovar 4j29 Hermetic Glass To Metal Seal Connectors Multi-pin Headers
7 Pins Kovar 4j29 Hermetic Glass To Metal Seal Connectors Multi-pin Headers
7 Pins Kovar 4j29 Hermetic Glass To Metal Seal Connectors Multi-pin Headers
7 Pins Kovar 4j29 Hermetic Glass To Metal Seal Connectors Multi-pin Headers
Specifications
Brand Name :
ELT
Model Number :
JMC-268
Certification :
ROHS ISO-9001-2015
Place of Origin :
China
MOQ :
200 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
30,000,000 pcs per year
Delivery Time :
Within 3 Weeks
Packaging Details :
Standard Export Carton
Product Name :
Glass To Metal Multi-pin Headers
Plating :
Gold Plated
Impedance :
other
Certificate :
ROHS ISO-9001-2015
Pin :
Multi-pin
Material :
Kovar 4J29
Glass :
7052,7070, DM308
Hermecity :
<1.01325 X 10E-08 std.cc/s
Description

7 Pins Kovar 4j29 Hermetic Glass To Metal Seal Connectors Multi-pin Headers

Hermetic Glass to Metal Seals RF/DC Feedthroughs /Multi-pin Headers /Connector is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components.

The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The center conductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.

7 Pins Kovar 4j29 Hermetic Glass To Metal Seal Connectors Multi-pin Headers

Specification:

Product Name Glass to Metal Multi-pin Headers
Impedance other
Type 7 pins
Rows 1 row
Color Gold plated
Housing and pin material Kovar 4J29
Glass material
Glass Color
7050 or 7070 type or DM308
Green or White
Freqecncy Range NA
VSWR NA
Withstand Voltage ≥300V
Hermecity <1.01325 X 10E-08 std.cc/s
Insulation Resistance ≥2000MΩ for single pin, ≥1000MΩ for multi-pin,
Operating temperature -65℃~+260℃

Features:

-Small size

-lightweight

-Hermetic

-Stable quality and high reliability

-Inner conductor: Gold wire bonding, soldering and mating method for choice


Application:

Wide application range of electronics packages, electronics countermeasures, satellites, missiles, radar and other in military, avionics, aerospace and automotive filed. It can be used with SMA, millimeter wave products.

Advantages:
-Military Grade with 1.27um gold plated
-Strict tolerance control
-Standard and custom design for choice.
-High cost-effective products and services
-Large stocks for standard sizes
-Fast delivery for custom products

Detailed Image

Unit:mm
7 Pins Kovar 4j29 Hermetic Glass To Metal Seal Connectors Multi-pin Headers

7 Pins Kovar 4j29 Hermetic Glass To Metal Seal Connectors Multi-pin Headers 7 Pins Kovar 4j29 Hermetic Glass To Metal Seal Connectors Multi-pin Headers

50Ω RF Single-pin JM Series Soldering Mating and Bonding choice
50Ω RF Single-pin JM Standard Series Soldering Mating and Bonding choice
50Ω RF Single-pin JM Non-Standard Series Soldering Mating and Bonding choice
DC Single-pin JK Series Soldering and Bonding choice
DC Single-pin JK Standard Series Soldering and Bonding choice
DC Single-pin JK Non-Standard Series Soldering and Nail Head Bonding choice
Multi-pin Header JMC Series
 1-9 pins with 1-3 rows choice
Custom dimensions

Wide range


NOTE:
We have over 100,000 types of Hermetic Glass To Metal Seal Connectors, if the connector you are using is not found, please contact us with your details.

7 Pins Kovar 4j29 Hermetic Glass To Metal Seal Connectors Multi-pin Headers

Samples and Customized sizes are available.

7 Pins Kovar 4j29 Hermetic Glass To Metal Seal Connectors Multi-pin Headers
