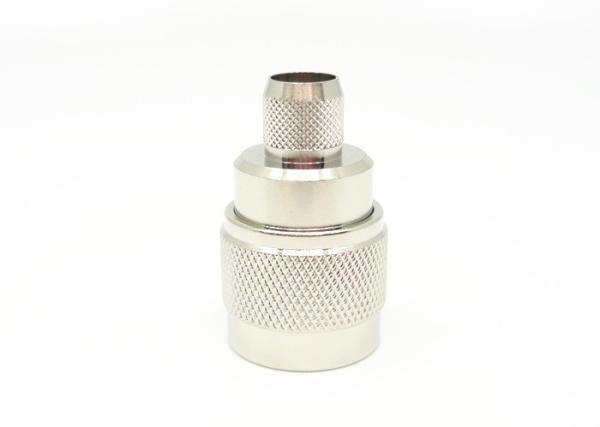

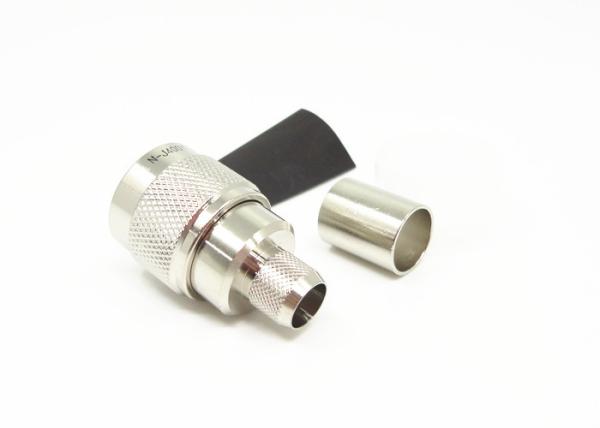

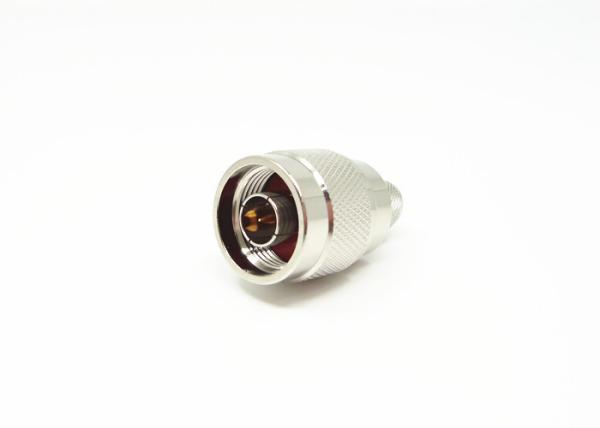

N-J400Y N Type Bulkhead Connector Straight Crimp Connector for LMR400
N-J400Y N Type Bulkhead Connector Straight Crimp Connector for LMR400
N-J400Y N Type Bulkhead Connector Straight Crimp Connector for LMR400
N-J400Y N Type Bulkhead Connector Straight Crimp Connector for LMR400
N-J400Y N Type Bulkhead Connector Straight Crimp Connector for LMR400
N-J400Y N Type Bulkhead Connector Straight Crimp Connector for LMR400
N-J400Y N Type Bulkhead Connector Straight Crimp Connector for LMR400
N-J400Y N Type Bulkhead Connector Straight Crimp Connector for LMR400
Specifications
Brand Name :
ELT (Elite)
Model Number :
N
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1,000,000 Pieces Per Month
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Product name :
N Type RF Coaxial Conector
Plating :
Gold Plated/ Nickel Plated
Impedance :
50Ω
Frequency Range :
DC~11GHz(Max.18GHz)
Model :
N-J400Y
VSWR :
≤1.3
Description

50Ohm N Type RF Connector Nickel Plated Straight Crimp Connector for LMR400

N type connectors are threaded coupling coaxial connectors with good anti-vibration capability and electrical characteristics and upto 11GHz typical frequency range. Our frequency range can be up to 18GHz. The threaded coupling incurs low noise and withstands shock and vibration. LTI N connectors are designed to conform to MIL-C-39012 specifications.They are applicable to different types of RF cables and commonly adopted in aviation, aerospace, radar, microwave and digital communications, test and measurement instrument etc.

We can customize various N-type connectors and adapters as per customers' different requirement. No matter what you need is straight or right angle, flange mount or bulkhead mount.

N-J400Y N Type Bulkhead Connector Straight Crimp Connector for LMR400

Specification

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~11GHz(Max.18GHz)
Rated Voltage 1000VRMS*(Max.Sea Level)
Dielectrics Voltage-resistance 1500VRMS*(Max.Sea Level)
Insulation Resistance ≥5000MΩ
Center Resistance Outer conductor ≤0.5mΩ
Center conductor ≤1.5mΩ
VSWR ≤1.3
Material & Mechanical Characteristics
Center Conductor Male Brass,

Nickel Plated
Female Phosphor Bronze,

Nickel Plated
Resilient Contact Phosphor Bronze Nickel Plated
Shell / Housing Brass Stainless steel

Nickel Plated
Cable Clamp Brass Nickel Plated
Insulator PTFE
Gasket Silicone Rubber
Durability 500 Cycles

Detailed Drawing

N-J400Y N Type Bulkhead Connector Straight Crimp Connector for LMR400

N-J400Y N Type Bulkhead Connector Straight Crimp Connector for LMR400

N Male Connector LMR-400 Cable RF Connector N type Plug Male Crimp for LMR400 RG8 Coaxial Cable


Product Cataloge:

RF Adapter
RF Cable Assemblies
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
Waveguide to Coaxial Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
TNC RF Connector
N Type RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

Applications:

* Computer/LANs

* Mobile communication

* Base Station

* Outdoor facilities

* Radar,microwave

* Telecommunications

* Instrumentation

* Automotive

* Jump line join

* Basic facility

* Radio, TV aerial system

* Mobile communication

Packaging & Delivery:

* Standard Export Carton
* According to customers' requirements

NOTE:

We are looking forward to receiving your inquiry at an early date .Please contact us what you need( Cable length/Connector)so we can offer you theSPEC,And the best quality and service , competitive price , timely response, delivery in time
