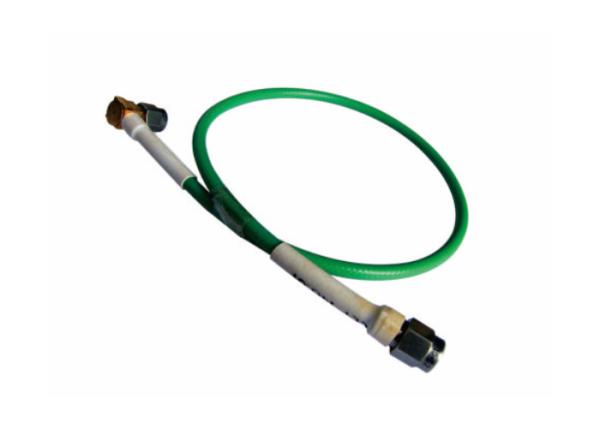

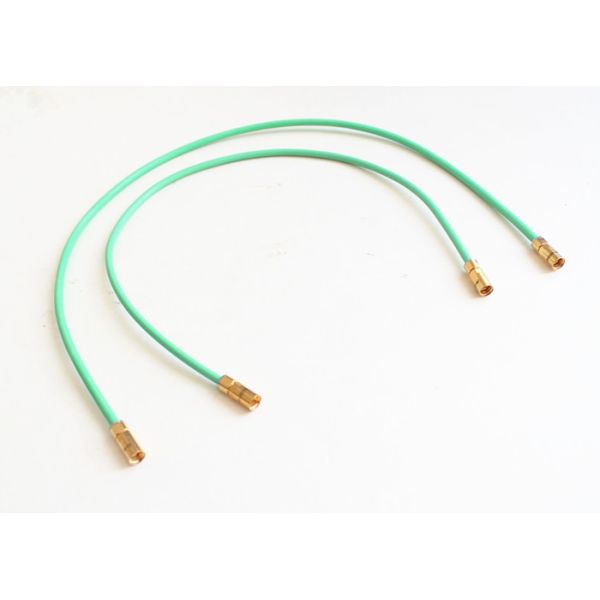

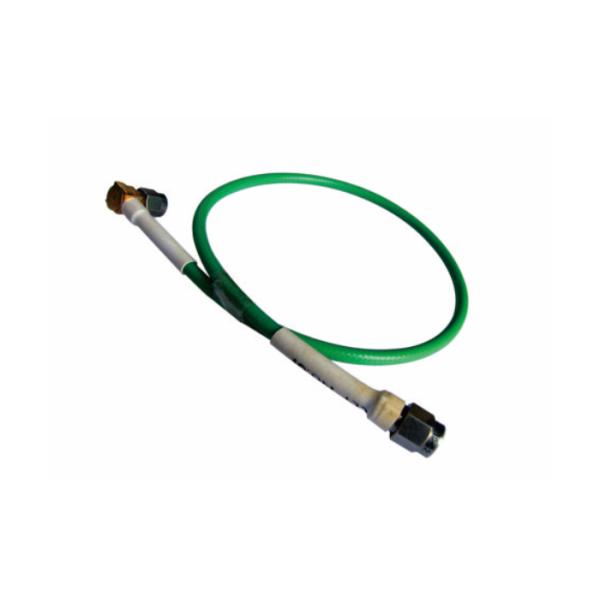

2.92mm K series Connector Millimeter Microwave MMW Cable Assembly

This cable assembly is consists of k-series millimeter-wave connectors with corresponding cables, the use frequency is up to 40GHz. With characteristics of wide bandwidth, well high-frequency performance, low loss, reliable connect. Because K series use air interface,1/4-36UNS threaded connect, volume is small and weight is light, K series can interchange with SMA, so it is widely used in microwave measurement and the occasion with high performance requirement and complex spatial position.

N-C-KY195/TNC-C-JW195

2.92mm K Series Male Female Connector / Millimeter Microwave Cable Assemblies2.92mm K Series Male Female Connector / Millimeter Microwave Cable Assemblies

Specifiacation:

mpedance 50 Ω
Frequency Range DC - 40 GHz
Voltage Rating 250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage 750 VRMS (Max. Sea Level)
Voltage Standing Wave Ratio
VSWR		 ≤ 1.05 + 0.005f
Contact Resistance Center Conductor ≤ 3.0 mΩ
Outer Conductor ≤ 2.0 mΩ
Insulation Resistance ≥ 5000 MΩ
Inner Conductor Male plug: Brass, Gold Plated
Female Jack: BeCu, Gold Plated
Resilient Contact BeCu, Nickel Plated
Body / Shell / Housing Brass, Gold Plated
Stainless Steel, Passivated
Insulator PEI
Gasket Silicone Rubber
Temperature -55℃ ~ +125℃
Durability 500 Cycles
Torque 0.79 ~ 1.13 N.m


Features:

• The2.9mm connector frequency is up to 40GHz.
• It can mate and interchange with SMA series, K series ,2.4mm,3.5mm connectors.
• Superior electrical performance up to 40 GHz
• It have the advantages of small volume, light weight, high use frequency, reliable connect.
• Great for applications that require high frequency transmission
• Connector mating interface per MIL-STD-348
• Superior electrical performance up to 40 GHz
• Female contacts have unique three-slot construction
• An air dielectric with a loss-loss plastic center conductor support.


Application:

* Instrumentation
* Automotive
* Satcom
* Computer/LANs
* Telecommunications
* Avionics, radars
* Missiles and guidance systems
* Telecommunication systems
* Navigation systems
* Research centres
* Satellite communications

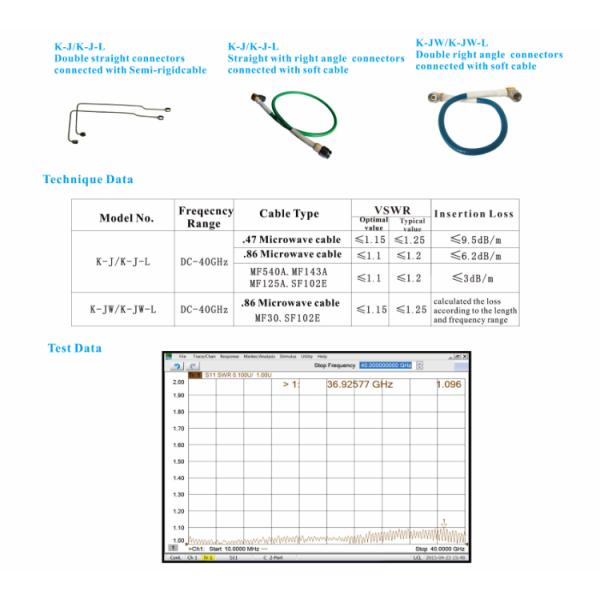

Detailed Data
2.92mm K Series Male Female Connector / Millimeter Microwave Cable Assemblies


Assembly shop capability:

*Automatic stripping

*Automatic laser stripping

*Temperature controlled soldering

*Clean room

*Laser marking

Purchasing of ready-made microwave cable assembly lines provides important benefits:


• Perfect assembly, no rejects
• No need for training assembly personnel
• No capital investment for assembly provisions
• Precisely matched cables and connectors from
the same manufacturer
• Xi'an Elite Electronic guaranties quality

Product Cataloge:

RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)
RF Cable Assemblies
Waveguide To Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
