High Reliable N Male to SMA Male RF Adapter 50Ohm Dielectric PTFE for Instrumentation
High Reliable N Male to SMA Male RF Adapter 50Ohm Dielectric PTFE for Instrumentation
High Reliable N Male to SMA Male RF Adapter 50Ohm Dielectric PTFE for Instrumentation
High Reliable N Male to SMA Male RF Adapter 50Ohm Dielectric PTFE for Instrumentation
High Reliable N Male to SMA Male RF Adapter 50Ohm Dielectric PTFE for Instrumentation
High Reliable N Male to SMA Male RF Adapter 50Ohm Dielectric PTFE for Instrumentation
High Reliable N Male to SMA Male RF Adapter 50Ohm Dielectric PTFE for Instrumentation
High Reliable N Male to SMA Male RF Adapter 50Ohm Dielectric PTFE for Instrumentation
Specifications
Brand Name :
ELT (Elite)
Model Number :
N/SMA-JJ
Certification :
ROHS ISO-9001-2015
Place of Origin :
China
MOQ :
50
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000,000pcs per week
Delivery Time :
within 3 weeks
Packaging Details :
Standard Export Carton
Product name :
N Male to SMA Male RF Adapter
Plating :
Gold Plated/ Nickel Plated
Impedance :
50Ω
Certificate :
ROHS ISO-9001-2015
Dielectric :
PTFE
Gender :
Male to Male Adapter
Type :
RF Adaptor
Application :
RF
Description

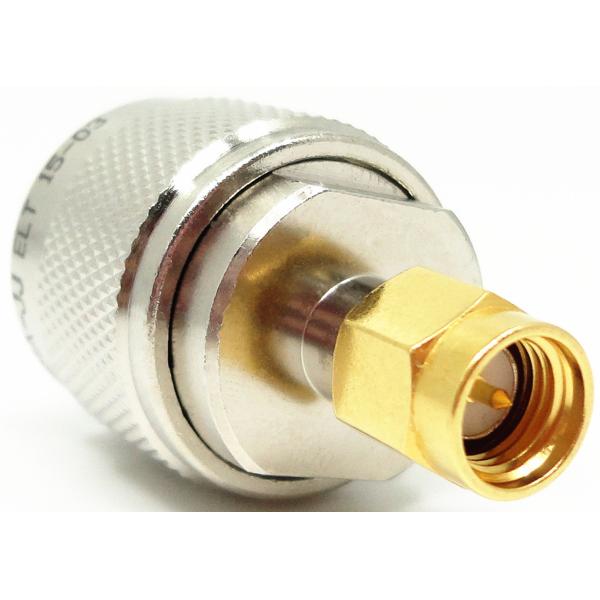

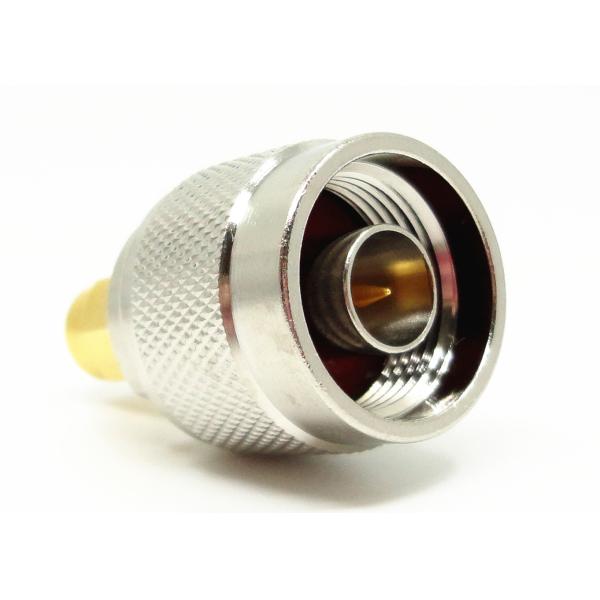

High Reliable 50Ohm N Male to SMA Male RF Adapter

N-type connectors are threaded coupling coaxial connectors with good anti-vibration capability and electrical characteristics and upto 11GHz typical frequency range. Our frequency range can be up to 18GHz. They are applicable to different types of RF cables and commonly adopted in aviation, aerospace, radar, microwave and digital communications, test and measurement instrument etc.

RF SMA is a kind of coaxial connector that is widely applied, with small sized thread coupling. Characteristic impedance is 50Ohm. The characteristic of connectors is in wide frequency range, excellent performance, high reliability. They are used in connection with RF cable or microstrip line in RF circuit of the WLAN system, controlled program, microwave equipment and the digital communication system.The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.

Specifiacation:

Interface according to IEC60169-15
Impedance 50Ω
Freqency Range DC to 11GHz
Insertion Loss ≤0.30dB
VSWR ≤1.2(DC-6GHz)
Insulation Resistance ≥5000MΩ
Center Contact Resistance ≤3mΩ
Outer Contact Resistance ≤2mΩ
Mating Cycles ≥500
Temperature Range -65-+165℃
Dielectric PTFE

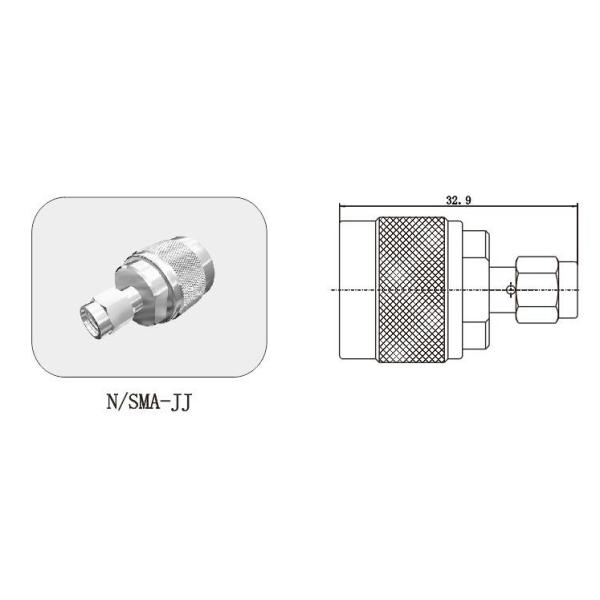

Detailed Drawing(mm)

High Reliable N Male to SMA Male RF Adapter 50Ohm Dielectric PTFE for Instrumentation

High Reliable N Male to SMA Male RF Adapter 50Ohm Dielectric PTFE for Instrumentation High Reliable N Male to SMA Male RF Adapter 50Ohm Dielectric PTFE for Instrumentation

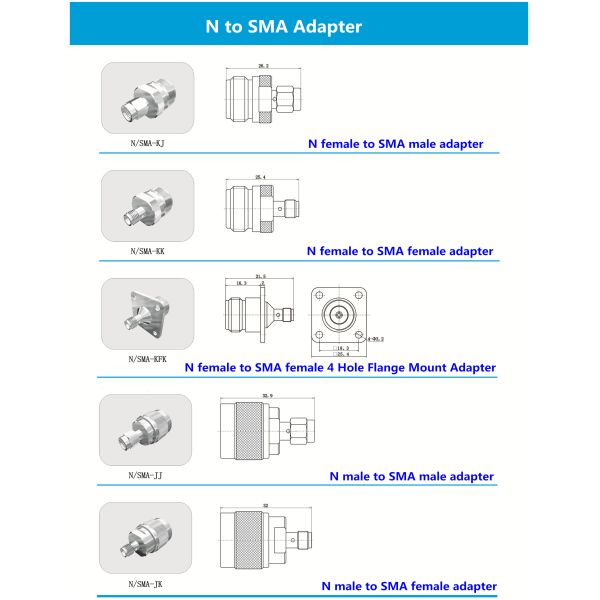

We also can provide below N/SMA adaptors:

Part Number
Description
N/SMA-KJ
N female to SMA male Adapter
N/SMA-KK
N female to SMA female Adapter
N/SMA-KFK
N female to SMA fmale 4 Holes Flange Mount Adapter
N/SMA-JJ
N male to SMA male Adapter
N/SMA-JK
N male to SMA female Adapter

High Reliable N Male to SMA Male RF Adapter 50Ohm Dielectric PTFE for Instrumentation

Application:

* Instrumentation
* Antennas
* Microwave Radio
* Surge Protection
* Telecommunications

Product Category:

RF Adapter
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
RF Cable Assemblies
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
TNC RF Connector
N Type RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
