RF Coaxial Cable Adapter TNC Socket to SMA Jack Female to Male Connector
RF Coaxial Cable Adapter TNC Socket to SMA Jack Female to Male Connector
RF Coaxial Cable Adapter TNC Socket to SMA Jack Female to Male Connector
RF Coaxial Cable Adapter TNC Socket to SMA Jack Female to Male Connector
RF Coaxial Cable Adapter TNC Socket to SMA Jack Female to Male Connector
RF Coaxial Cable Adapter TNC Socket to SMA Jack Female to Male Connector
Specifications
Brand Name :
ELT (Elite)
Model Number :
RF Adapter
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000,000pcs per week
Delivery Time :
within 3 weeks
Packaging Details :
Standard Export Carton
Product name :
RF Adapter
Plating :
Nickel Plated
Impedance :
50Ω
Certificate :
CE ROHS
Dielectric :
PTFE
Model :
TNC/SMA-JK
Type :
rf adaptor
Description

TNC-SMA adapter TNC Socket to SMA Jack RF Coaxial Female to Male Connector Adapter

TYPE SMA is one kind of RF coaxial connectors that is widely applied, with small sized thread coupling. Characteristic impedance is 50ohm. The characteristic of connectors is in wide frequency range, excellent performance, high reliability. They are used in connection with RF cable or microstrip line in RF circuit of the WLAN system, controlled program, microwave equipment and the digital communication system.The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.


TNC series product is designed as a threaded version of BNC connector, the TNC RF connectors features screw threads for mating.TNC connectors are miniature, threaded waterproof units with a constant 50ohm impedance,operating from DC-11GHz, there are two types of TNC connectors:standard and reverse polarity.these low cost connector typically utilize die cast and molded components.While performance will not be equal to the industrial or high quality grade products, these connectors are ideal for use on a varity of commercial applications

RF Coaxial Cable Adapter TNC Socket to SMA Jack Female to Male Connector

Specifiacation:

Interface according to IEC60169-15
Impedance 50Ω
Freqency Range DC to 11GHz
Insertion Loss ≤0.250dB
VSWR ≤1.2
Insulation Resistance ≥5000MΩ
Center Contact Resistance ≤3mΩ
Outer Contact Resistance ≤2mΩ
Mating Cycles ≥500
Temperature Range -65-+165℃
Dielectric PTFE

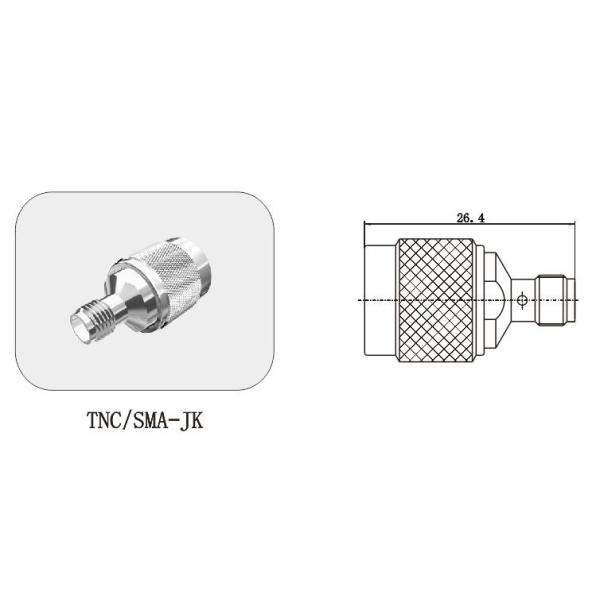

Detailed Drawing

RF Coaxial Cable Adapter TNC Socket to SMA Jack Female to Male Connector

There also have another type TNC MALE TO SMA MALE RF adaptor can be choose:

RF Coaxial Cable Adapter TNC Socket to SMA Jack Female to Male Connector

Application:

RF Coaxial Cable Adapter TNC Socket to SMA Jack Female to Male Connector

- Wireless
- Antennas

- Broadband

- Instrumentation
- Phased array antennas

- Board-to-board interconnect

Between Series Adapter list:

Types Description
SMA/SSMA SMA male/female to SSMA male/female adapter
SMA/SMP SMA male/female to SMP male/female adapter
RPSMA/SMA RP SMA male/female to SMA male/female adapter
SMA/BMA SMA male/female to BMA male/female adapter
BNC/SMA BNC male/female to SMA male/female adapter
SMA/SMB SMA male/female to SMB male/female adapter
N/SMA N type male/female to SMA male/female adapter
TNC/SMA TNC male/female to SMA male/female adapter
N/BNC N Type male/female to BNC male/female adapter
SMA/SSMC SMA male/female to SSMC male/female adapter
N/3.5 N Type male/female to 3.5mm male/female adapter
SMA/MCX SMA male/female to MCX male/female adapter
ODM ODM type is available

NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
