Gold Plated Straight SMA Female to SSMC Male RF Adapter 50Ohm Impedance
Gold Plated Straight SMA Female to SSMC Male RF Adapter 50Ohm Impedance
Gold Plated Straight SMA Female to SSMC Male RF Adapter 50Ohm Impedance
Gold Plated Straight SMA Female to SSMC Male RF Adapter 50Ohm Impedance
Gold Plated Straight SMA Female to SSMC Male RF Adapter 50Ohm Impedance
Gold Plated Straight SMA Female to SSMC Male RF Adapter 50Ohm Impedance
Gold Plated Straight SMA Female to SSMC Male RF Adapter 50Ohm Impedance
Gold Plated Straight SMA Female to SSMC Male RF Adapter 50Ohm Impedance
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMA/SSMC-KJ
Certification :
ROHS ISO-9001-2015
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000,000pcs per week
Delivery Time :
within 3 weeks
Packaging Details :
Standard Export Carton
Product Name :
SMA Female to SSMC Male RF Adapter
Application :
RF
Type :
Adapter
Gender :
Male to Female
Impedance :
50Ω
Material :
Brass
Plating :
Gold Plated
Insulator :
PTFE
Description

Gold Plated Straight SMA Female to SSMC Male RF Adapter 50 Ohm

Specifiacation:

Interface according to IEC60169-15
Impedance 50Ω
Freqency Range DC to 6GHz
Insertion Loss ≤0.30dB
VSWR ≤1.2(DC-6GHz)
Insulation Resistance ≥5000MΩ
Center Contact Resistance ≤3mΩ
Outer Contact Resistance ≤2mΩ
Mating Cycles ≥500
Temperature Range -65-+165℃
Dielectric PTFE

Gold Plated Straight SMA Female to SSMC Male RF Adapter 50Ohm Impedance

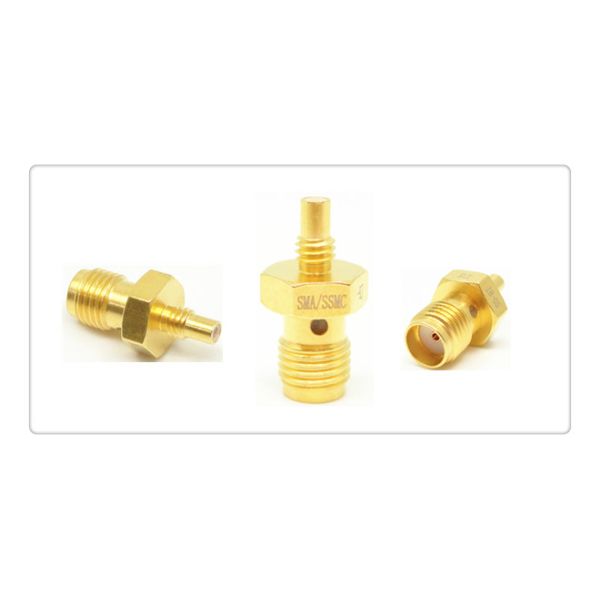

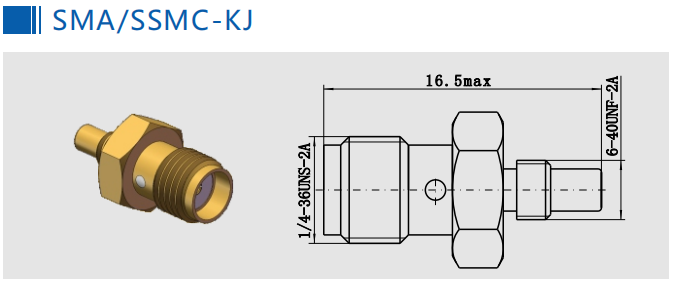

Outline Drawing and Picture of SMA Female to SSMC Male Adapter:

Gold Plated Straight SMA Female to SSMC Male RF Adapter 50Ohm Impedance

Application:

- Wireless
- Antennas

- Broadband

- Instrumentation
- Phased array antennas

- Board-to-board interconnect

Other SMA Male Female to SSMC Male Female RF Adapter:

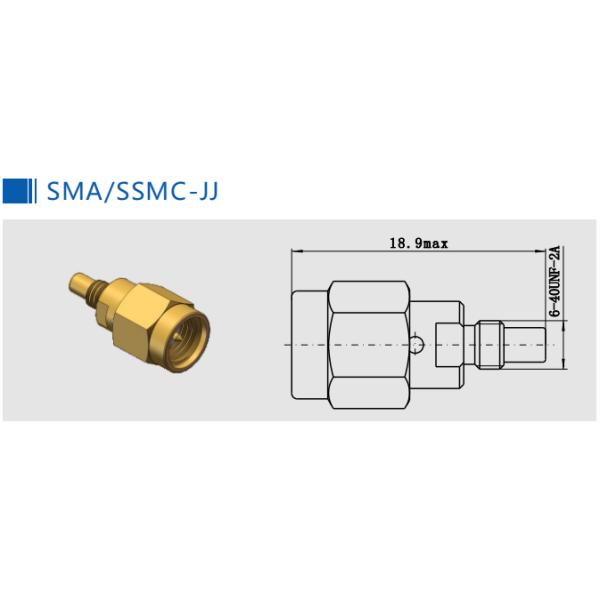

1. SMA/SSMC-JJ : SMA Male to Female Adapter

2. SMA/SSMC-JK: SMA Male to Female Adapter

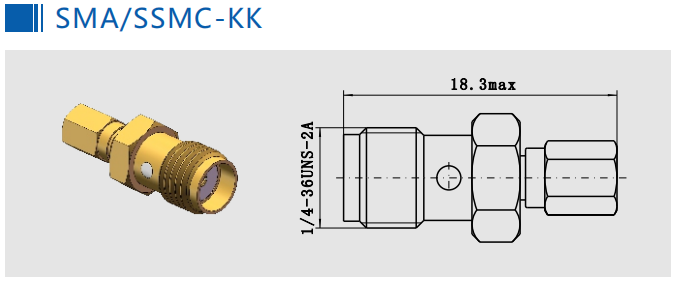

3. SMA/SSMC-KK: SMA Female to Female Adapter

Gold Plated Straight SMA Female to SSMC Male RF Adapter 50Ohm Impedance

Gold Plated Straight SMA Female to SSMC Male RF Adapter 50Ohm Impedance

Gold Plated Straight SMA Female to SSMC Male RF Adapter 50Ohm Impedance

Between Series Adapter list:

Types Description
SMA/SSMA SMA male/female to SSMA male/female adapter
SMA/SMP SMA male/female to SMP male/female adapter
RPSMA/SMA RP SMA male/female to SMA male/female adapter
SMA/BMA SMA male/female to BMA male/female adapter
BNC/SMA BNC male/female to SMA male/female adapter
SMA/SMB SMA male/female to SMB male/female adapter
N/SMA N type male/female to SMA male/female adapter
TNC/SMA TNC male/female to SMA male/female adapter
N/BNC N Type male/female to BNC male/female adapter
SMA/SSMC SMA male/female to SSMC male/female adapter
N/3.5 N Type male/female to 3.5mm male/female adapter
SMA/MCX SMA male/female to MCX male/female adapter
ODM ODM type is available

NOTE:
We have over 10,000 types of Adapters, if the connector you are using is not found, please contact us with your details.
