ROHS Female Brass Mini SMA SSMA RF Connector DC 18GHz
ROHS Female Brass Mini SMA SSMA RF Connector DC 18GHz
ROHS Female Brass Mini SMA SSMA RF Connector DC 18GHz
ROHS Female Brass Mini SMA SSMA RF Connector DC 18GHz
Specifications
Brand Name :
ELT (Elite)
Model Number :
SSMA-KFD11
Certification :
ROHS, ISO-9001-2015
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1,000,00 Pieces Per Month
Delivery Time :
Within 3-4 weeks
Packaging Details :
Standard Export Carton
Item :
SMA RF Conector
Plating :
Gold Plated
Gender :
Female
Impedance :
50Ω
Frequency :
DC~18GHz
Lifetime :
500 Cycles
Body :
Brass
Application :
Audio/Vedio/Microwave
Description

ROHS Female Brass Mini SMA SSMA RF Connector DC 18GHz

SSMA series RF coaxial connectors are miniaturized products of SMA connectors, which have the characteristics of small size, wide frequency bandwidth and high reliability. It is widely used in aviation, aerospace, microwave communications and other fields

Key Features:


  • Space saving alternative to standard SMA
  • Threaded coupling mechanism offers reliability for rugged designs
  • Ideal for high-frequency applications

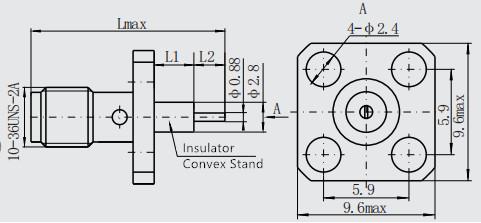

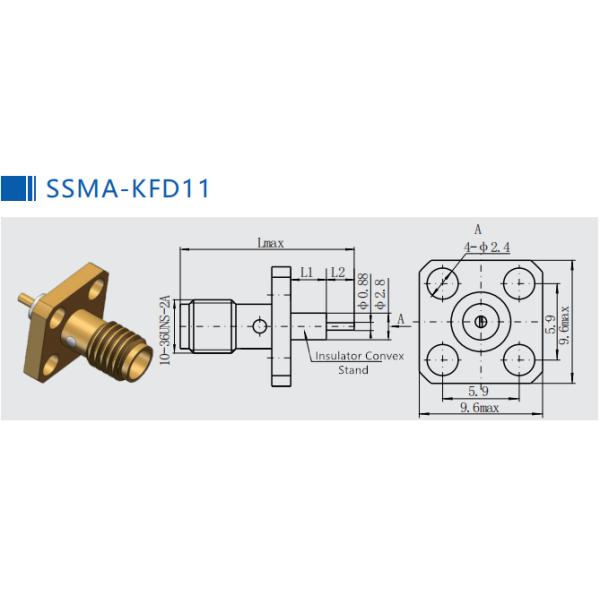

Outline Drawing:

ROHS Female Brass Mini SMA SSMA RF Connector DC 18GHz

Model Number L L1 L2 Description
SSMA-KFD11 14.4 2.5 2.2 max SSMA female 4-hole flange rf connector
SSMA-KFD101 22.6 9.5 3.4 max
SSMA-KFD114 14.9 3 2.2 max

Specifiacation of SSMA Rf Connectors:

Electronic and Material Characterials
Impedance 50Ω
Frequency Range DC~30GHz
Rated Voltage 250 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance 750 VRMS (Maximum sea-level)
VSWR ≤1.3
Insulation Resistance ≥5000MΩ
Center conductor Male Brass gold plated
Female Beryllium copper gold plated
Shell and other metal parts Brass gold plated
Stainless steel passivated
Cable sheath Brass nickle plated
Insulator PTFE
Seal ring Silicon rubber
Mating torque 0.79 -1.13 N.m

Application:

  1. Microwave Systems Telecommunications
  2. 5G Solutions
  3. Measurement Systems
  4. Mobile Telephone WiFi Antennas Systems

NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
