Male Stainless Steel Precision 2.92mm RF Connector MF30A Cable Coaxial Connectors SMK
Male Stainless Steel Precision 2.92mm RF Connector MF30A Cable Coaxial Connectors SMK
Male Stainless Steel Precision 2.92mm RF Connector MF30A Cable Coaxial Connectors SMK
Male Stainless Steel Precision 2.92mm RF Connector MF30A Cable Coaxial Connectors SMK
Specifications
Brand Name :
ELT
Model Number :
K-J130G-1
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
35000pcs/year
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Material :
Stainless Steel
Gender :
male
Product name :
2.92mm,K type,SMK
Keywords :
Cable Connector
Item :
Millimeter Wave Connectors
Plating :
Nickel Plated
Application :
RF
Surface Plating :
Passivate
Description

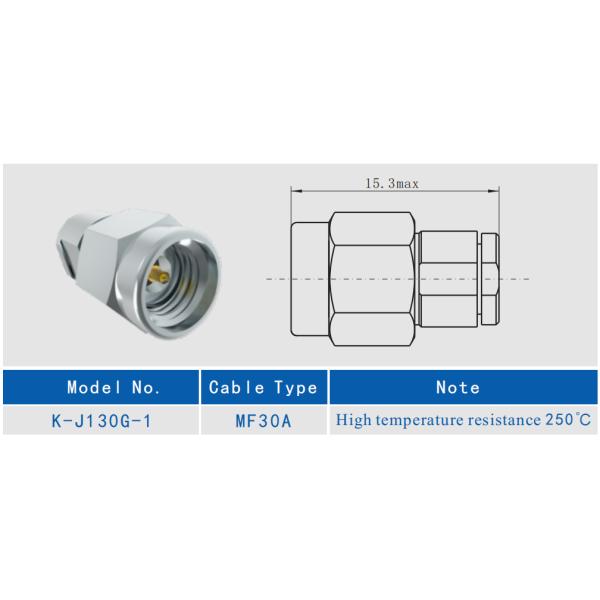

MF30A Cable Coaxial Connectors SMK 2.92mm Male Stainless Steel Precision K (2.92mm)

2.92mm (K) Connectors are RF/Microwave coaxial connectors that operate mode-free up to 40 GHz. These connectors are compatible to mate with SMA and 3.5mm connectors. The 2.92mm connectors were originally introduced by Mario Maury in 1974 and then re-introduced by Wiltron in 1984 as the K connector are ideal for high-frequency module and T&M applications.

Male Stainless Steel Precision 2.92mm RF Connector MF30A Cable Coaxial Connectors SMK
Specification:
Male Stainless Steel Precision 2.92mm RF Connector MF30A Cable Coaxial Connectors SMK

Impedance 50 Ω
Frequency Range DC - 40 GHz
Voltage Rating 250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage 750 VRMS (Max. Sea Level)

Voltage Standing Wave Ratio
VSWR

 ≤ 1.05 + 0.005f
Contact Resistance Center Conductor ≤ 3.0 mΩ
Outer Conductor ≤ 2.0 mΩ
Insulation Resistance ≥ 5000 MΩ
Inner Conductor Male plug: Brass, Gold Plated
Female Jack: Beryllium bronze, Gold Plated
Body / Shell / Housing

Brass, Gold Plated, Stainless Steel, Passivated
Insulator PEI/PLF
Gasket Silicone Rubber
Temperature -55℃ ~ +125℃
Durability 500 Cycles
Torque 0.79 ~ 1.13 N.m


Features:

*Precision manufacturing allows superior electrical performance to 40 GHz
*Female contacts have a unique three-slot construction, which enhances connectivity by creating a more rugged connector while reducing the chance of intermittent connections
*Precise assembly tooling assures excellent, repeatable contact, and support bead location on cabled connectors


Application:

*Optical test

*Laboratory and bench testing

*Military

*SATCOM

*Microwave

*Quantum computing

Related products:

Male Stainless Steel Precision 2.92mm RF Connector MF30A Cable Coaxial Connectors SMK

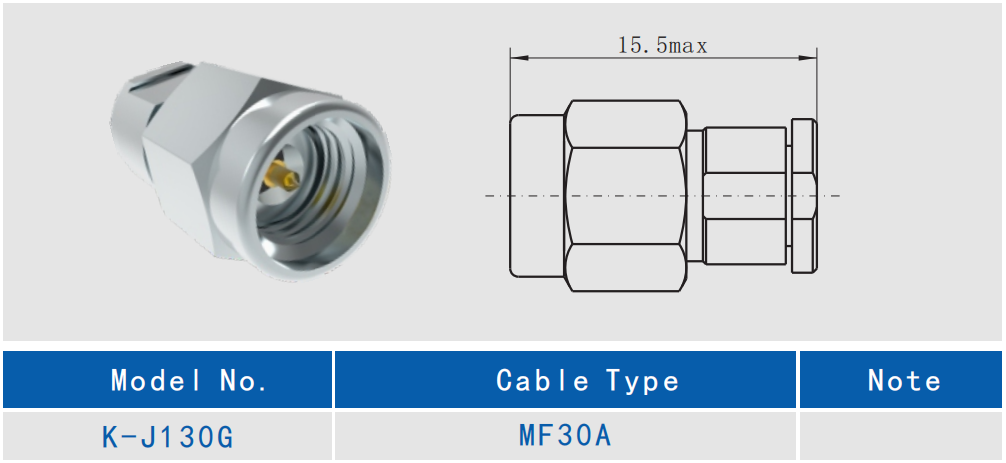

K-J130G K male straight stainless steel for MF30A

Male Stainless Steel Precision 2.92mm RF Connector MF30A Cable Coaxial Connectors SMK

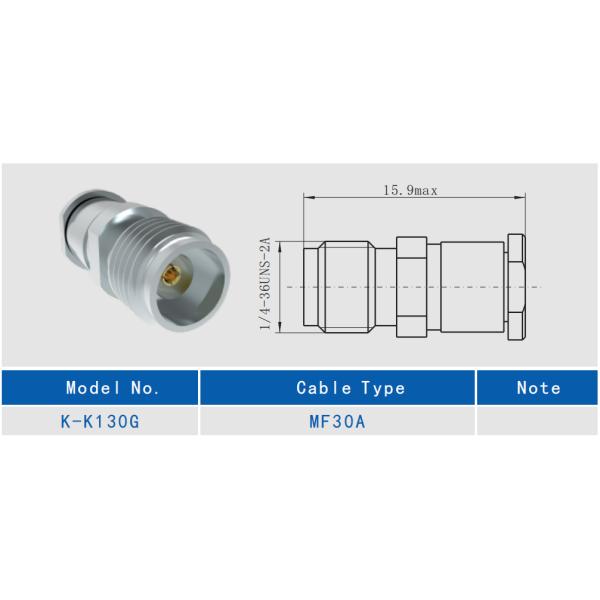

K-K130G K female straight stainless steel for MF30A

Male Stainless Steel Precision 2.92mm RF Connector MF30A Cable Coaxial Connectors SMK

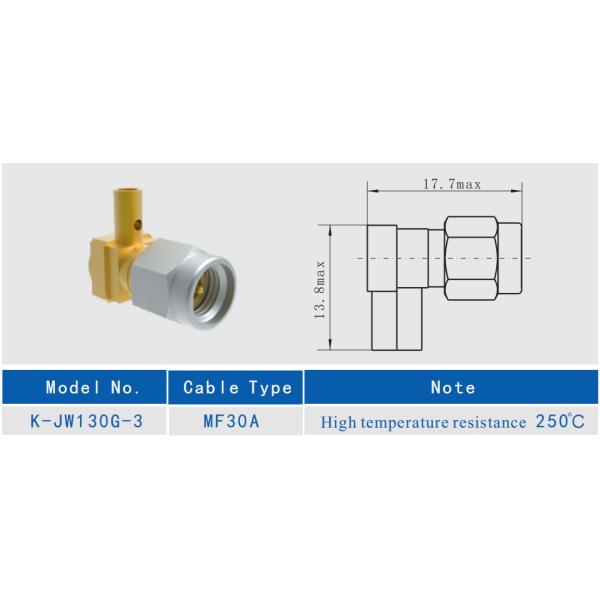

K-JW130G-3 K Male Right Angle Stainless Steel for MF30A High temperature resistance 250°C
