Female Stainless Steel Series K 2.92mm RF Connector for CXN3506/MF108A
Female Stainless Steel Series K 2.92mm RF Connector for CXN3506/MF108A
Female Stainless Steel Series K 2.92mm RF Connector for CXN3506/MF108A
Female Stainless Steel Series K 2.92mm RF Connector for CXN3506/MF108A
Specifications
Brand Name :
ELT
Model Number :
K-K506G
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
35000pcs/year
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Material :
Stainless Steel
Gender :
female
Product name :
2.92mm,K type,SMK
Keywords :
Cable Connector
Item :
Millimeter Wave Connectors
Plating :
Nickel Plated
Application :
RF
Surface Plating :
Passivate
Description

Male Right Angle Stainless Steel K(2.92mm) RF Coaxial Connector for CXN3506/MF108A Cable

Xi'an Elite Electronic’s right angle cable assemblies and connectors provide excellent electrical performance from DC up to 40GHz. No need to sacrifice performance for space, these high-performance connectors are compact in size and have outstanding durability. Currently available for CXN3506 and MF108A cable types and in SMA and 2.92mm series.

Series K(2.92mm) are precision connector designed for use with microwave applications requiring excellent performance up to 40GHz. It can crossing-over with SMA and 3.5mm connector series. Series K connector has many advantages, such as small size, light weight, high frequency and reliable connection etc.

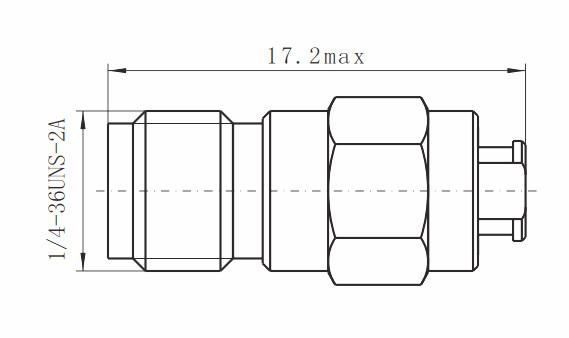

Female Stainless Steel Series K 2.92mm RF Connector for CXN3506/MF108A
Specification:
Female Stainless Steel Series K 2.92mm RF Connector for CXN3506/MF108A

Impedance 50Ω
Frequency Range DC - 40GHz
Voltage Rating 250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage 750 VRMS (Max. Sea Level)

Voltage Standing Wave Ratio
VSWR

 ≤ 1.05 + 0.005f
Contact Resistance Center Conductor ≤ 3.0 mΩ
Outer Conductor ≤ 2.0 mΩ
Insulation Resistance ≥ 5000 MΩ
Inner Conductor Male plug: Brass, Gold Plated
Female Jack: Beryllium bronze, Gold Plated
Body / Shell / Housing

Brass, Gold Plated, Stainless Steel, Passivated
Insulator PEI/PLF
Gasket Silicone Rubber
Temperature -55℃ ~ +125℃
Durability 500 Cycles
Torque 0.79 ~ 1.13 N.m


Features:

*Space saving design reduces stress on solder joint.
*Replaces the need for tight bend of cable in order to fit in a tight spot.
*Standard flexible or semi-rigid cable termination.


Application:

*Rugged high-frequency RF applications
*Rapid prototyping
*High speed digital component test
*5G wireless test applications

Related products:

Female Stainless Steel Series K 2.92mm RF Connector for CXN3506/MF108A

K-JW506G K male right angle stainless steel for CXN3506/MF108A

Female Stainless Steel Series K 2.92mm RF Connector for CXN3506/MF108A

K-J506G K male stainless steel for CXN3506/MF108A cable
