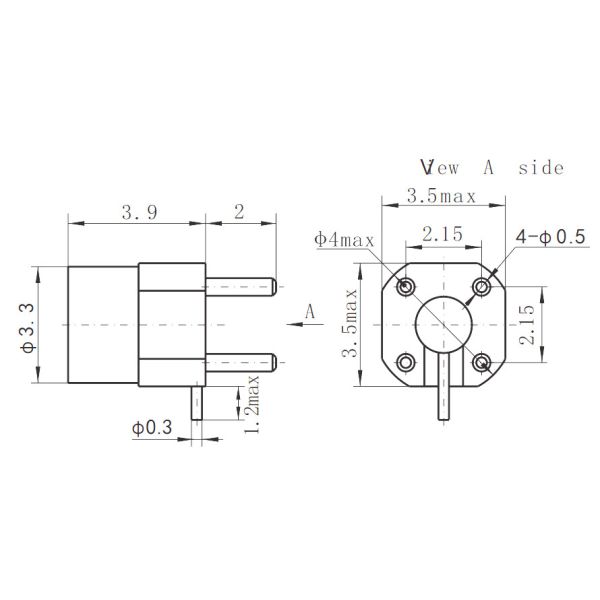

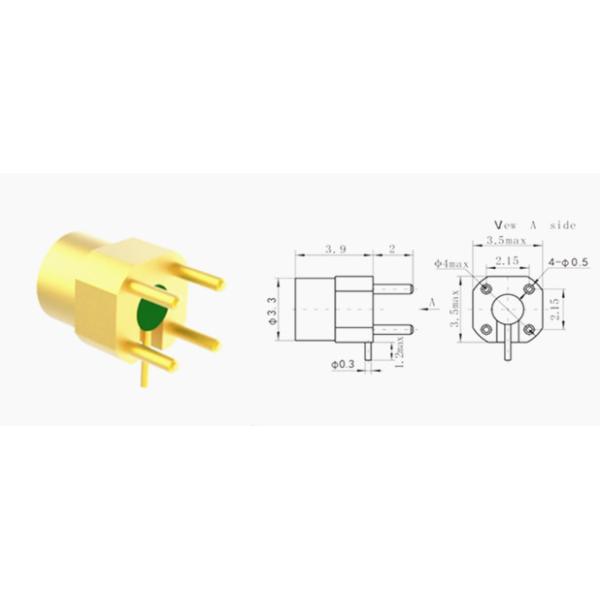

SSMP Male Right Angle RF Connector Surface Mount With Microstrip Full Detent
SSMP Male Right Angle RF Connector Surface Mount With Microstrip Full Detent
SSMP Male Right Angle RF Connector Surface Mount With Microstrip Full Detent
SSMP Male Right Angle RF Connector Surface Mount With Microstrip Full Detent
SSMP Male Right Angle RF Connector Surface Mount With Microstrip Full Detent
SSMP Male Right Angle RF Connector Surface Mount With Microstrip Full Detent
Specifications
Brand Name :
ELT (Elite)
Model Number :
SSMP-JWHD47
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1,000,000pcs per month
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Interface depth :
2.11mm
Rated Voltage :
85VRMS*
Material :
Brass
Plating :
Gold Plated
Impedance :
50Ω
Frequency Range :
DC~60GHz
Interface :
Full Detent
Lifespan :
500Cycles
Description

SSMP Male Right Angle Surface Mount with Microstrip Full Detent RF Connector

The SMPM interface is a micro-miniature interface with a frequency range of DC to 50 GHz. It is commonly used in miniaturized high frequency coaxial modules and is offered in both push-on and snap-on mating styles.

The full detent and smooth bore mating systems provide respective levels of engagement/disengagement forces. This family of interconnects addresses small package design needs; it can be utilized as a highly shielded interconnect for high data rate applications or in a board-to-board system using a floating bullet adapter. This floating bullet provides a link between mated pairs compensating for both radial and axial misalignment.

Features

  • Small package size
  • Push-on and snap-on mating styles for quick installation
  • Designs available for board-to-board and cable-to-board configuration
Specification
Electrical Characteristics
Impedance 50Ω
Frequency Range DC~60GHz
Rated Voltage 85VRMS*
Dielectrics Voltage-resistance 250VRMS*
Insulation Resistance ≥2000MΩ
Center Resistance Outer conductor Normal≤2mΩ, Sealing≤5mΩ
Center conductor Normal≤6mΩ, Sealing≤25mΩ
DC~18GHz 18~26.5GHz 26.5~40GHz 40~50GHz
VSWR ≤1.25 ≤1.3 ≤1.35 ≤1.4
Material & Mechanical Characteristics
Center Conductor Male Sn-P Bronze/Kovar, Gold plated
Female Beryllium bronze, Gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts

Brass/Kovar Gold plated

Stainless steel Passivation
Insulators Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate ≤1.01325×10-3Pa·cm3/s

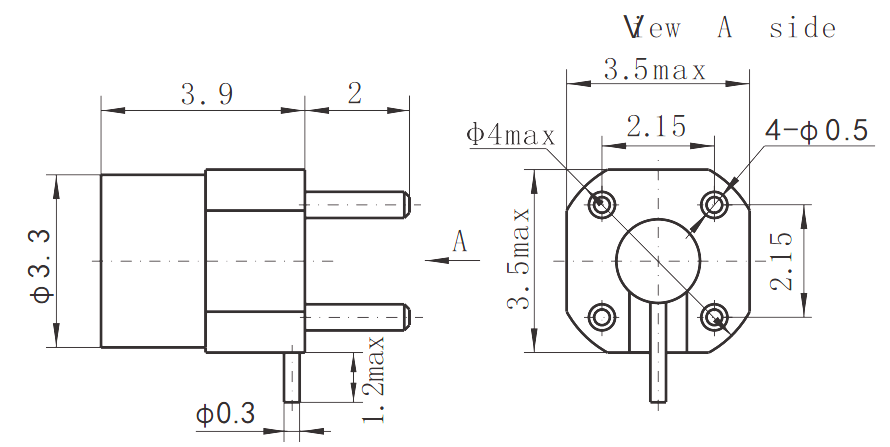

SSMP Male Right Angle RF Connector Surface Mount With Microstrip Full Detent

Application:

  • Antennas
  • Broadband
  • Wireless
  • Military
  • Instrumentation
  • Medical
  • Quantum Computing

Product Cataloge:

RF Adapter
Waveguide To Coaxial Adapter
TNC RF Connector
N Type RF Connector
Microwave Rotary Joints
RF Cable Assemblies
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
J30J Series Connector
Glass-to-metal Hermetic Seals
BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)

Packaging Details:


* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.

Related Products:

SSMP Male Right Angle RF Connector Surface Mount With Microstrip Full Detent

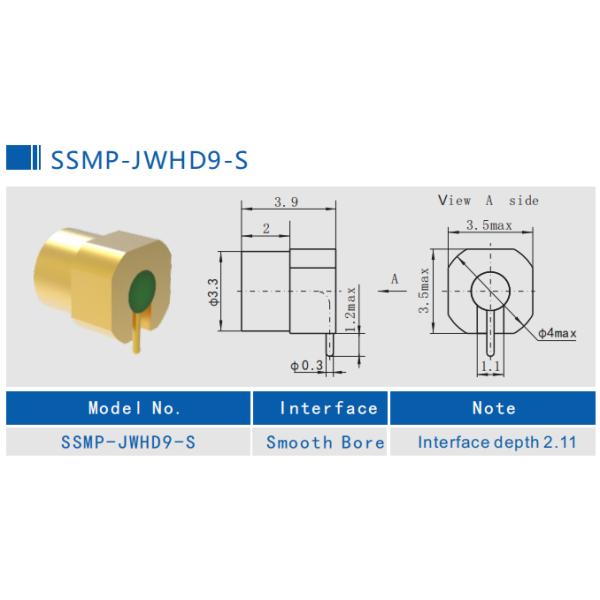

SSMP Male RA RF Cnnector Smooth Bore Interface depth 2.11mm
