WR90 BJ100 N Female Waveguide To Coax Adapter 8.2GHz - 15GHz
WR90 BJ100 N Female Waveguide To Coax Adapter 8.2GHz - 15GHz
WR90 BJ100 N Female Waveguide To Coax Adapter 8.2GHz - 15GHz
WR90 BJ100 N Female Waveguide To Coax Adapter 8.2GHz - 15GHz
WR90 BJ100 N Female Waveguide To Coax Adapter 8.2GHz - 15GHz
WR90 BJ100 N Female Waveguide To Coax Adapter 8.2GHz - 15GHz
WR90 BJ100 N Female Waveguide To Coax Adapter 8.2GHz - 15GHz
WR90 BJ100 N Female Waveguide To Coax Adapter 8.2GHz - 15GHz
WR90 BJ100 N Female Waveguide To Coax Adapter 8.2GHz - 15GHz
WR90 BJ100 N Female Waveguide To Coax Adapter 8.2GHz - 15GHz
Specifications
Brand Name :
ELT
Model Number :
N/BJ100-KF
Certification :
ISO 9001:2015, ISO 14001:2015
Place of Origin :
China
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C,Paypal
Supply Ability :
10,000 pcs per month
Delivery Time :
Within 5-7 workdays(for stocks)
Packaging Details :
Standard Export Carton
Product Name :
WR90 Waveguide to Coaxial Adapters
Material :
Brass
Frequency Range :
8.2-15GHz
Connector :
N
VSWR :
1.30
Impedance :
50 Ohm
Waveguide Size :
WR90,BJ100
Body Style :
Right Angle
Description

WR90 BJ100 To N Female Waveguide To Coax Adapter 8.2GHz~15GHz

The frequency of wave-guide to coax adapters processed by Elite Electronic (ELT) cover 5.4GHz-110GHz. With high reliability, small size and excellent performance, it is widely used in microwave measurement and millimeter wave equipment. The waveguide has standard rectangular and double-ridge waveguides, and non-standard waveguides can be customized according to user requirements. The coaxial end connection interface includes N, TNC, SMA, SMP, 3.5mm, K (2.92mm), 2.4mm, 1.85mm, 1.0mm and microstrip. Waveguide to coax adapters are divided into two types: end Launch and right angle launch from interface orientation. Among them, the RA launch type can also be used as a high-power structure.

Specification of N/BJ100-KF:

Product Name WR90 Waveguide to SMA Coaxial Adapters
Model No. N/BJ140-KF
Coaxial type N
Waveguide Size WR90
Body Style Right Angle
Frequency Range 8.2-15GHz
SMA Impedance 50 Ohm
VSWR 1.30

Advantages:
-Our waveguide adapters are of high reliability, miniature size and excellent performance etc, which makes them extensively adopted in microwave measurement and millimeter wave devices etc.
Outline Drawing of Model No. N/BJ100-KF:
WR90 BJ100 N Female Waveguide To Coax Adapter 8.2GHz - 15GHz

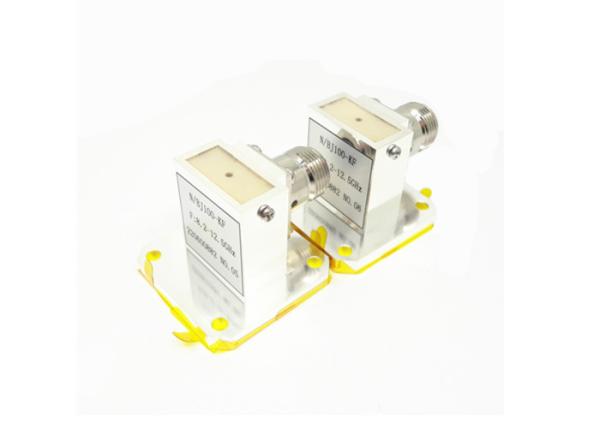

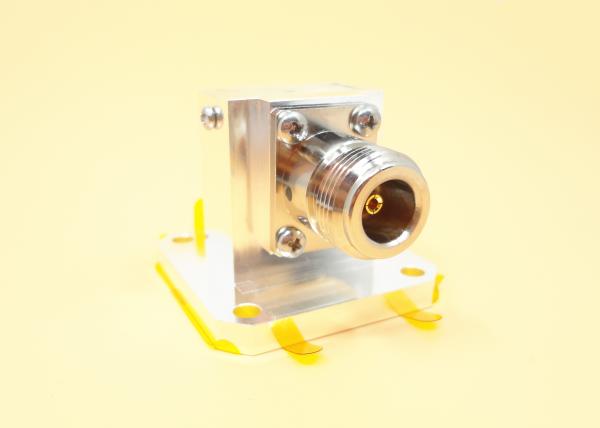

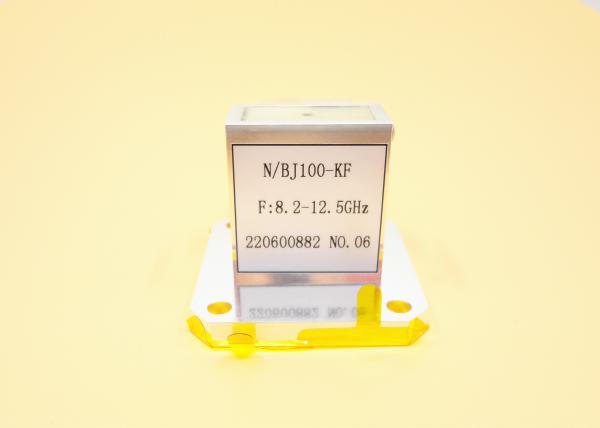

Pictures of WR90 BJ100 to N Female Waveguide to Coax Adapter N/BJ100-KF:
WR90 BJ100 N Female Waveguide To Coax Adapter 8.2GHz - 15GHz

List of Waveguide to N Coaxial Adapters:

Model Number Description Note
N/BJ100-KF WR90(BJ100) to N female end launch adapters BJ100=WR90
N/BJ120-KF WR75(BJ120) to N female end launch adapters BJ120=WR75
N/BJ140-KF1 WR62(BJ140) to N female right angle adapters BJ140=WR62

Cross-references of waveguide Standards

Chinese Standards International Standards Frequency Range (GHz)
BJ84 WR112 6.57~9.99
BJ100 WR90 8.20~12.5
BJ120 WR75 9.84~15.0
BJ140 WR62 11.9~18.0
BJ180 WR51 14.5~22.0
BJ220 WR42 17.6~26.7
BJ260 WR34 21.7~33.0
BJ320 WR28 26.3~40.0
BJ400 WR22 32.9~50.1
BJ500 WR18 39.2~59.6
BJ620 WR14 49.8~75.8
BJ740 WR12 60.5~91.9
BJ900 WR10 73.8~112

Waveguide to Coax Adapter-ELT 2024.pdf

NOTE:
We have over 1,000 types of Waveguide to Coaxial Adapters for choice, if the adapter you are using is not found, please contact us with your details. ODM dimension is welcomed.
