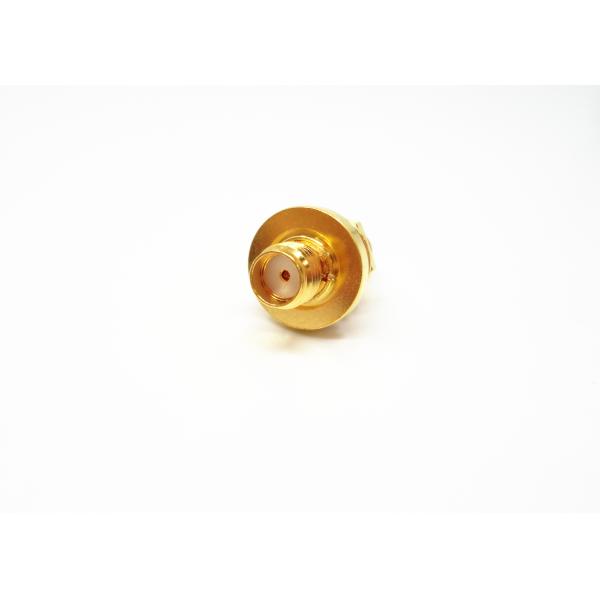

SMA Hermetic RF Cable Connector Female Bulkhead to Female Socket Coax Connector
SMA Hermetic RF Cable Connector Female Bulkhead to Female Socket Coax Connector
SMA Hermetic RF Cable Connector Female Bulkhead to Female Socket Coax Connector
SMA Hermetic RF Cable Connector Female Bulkhead to Female Socket Coax Connector
SMA Hermetic RF Cable Connector Female Bulkhead to Female Socket Coax Connector
SMA Hermetic RF Cable Connector Female Bulkhead to Female Socket Coax Connector
SMA Hermetic RF Cable Connector Female Bulkhead to Female Socket Coax Connector
SMA Hermetic RF Cable Connector Female Bulkhead to Female Socket Coax Connector
SMA Hermetic RF Cable Connector Female Bulkhead to Female Socket Coax Connector
SMA Hermetic RF Cable Connector Female Bulkhead to Female Socket Coax Connector
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMA(M)-KYK3
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
35000PCS/year
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Product name :
SMA RF Connector
Plating :
Gold Plated
Durability :
500 Cycles
Contact material :
Brass, BeCu
Material :
Brass
Design Standard: :
IEC60169-15
Type :
Straight
Gender :
Female
Description

SMA Hermetic RF Cable Connector Female to Female Coax Connector

SMA series is a kind of mini, high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012. With characteristics of small volume,good bandwidth,superior electrical characteristics. SMA is the most widely used RFcoaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.


Electrical Specification :

Impedance 50Ω
Frequency Range DC~18GHz
Rated Voltage 335VRMS*
Dielectrics Voltage-resistance 1000VRMS*
Insulation Resistance ≥5000MΩ
Center Resistance Center Conductor ≤3.0mΩ
Outer Conductor ≤2.0mΩ
VSWR ≤1.3

Material & Mechanical Characteristics:

Center Conductor Male Brass Gold plated
Female Sn-P Bronze Gold plated
Elastic Contact Beryllium bronze Nickel plated
Shell and other Metal Parts Brass Nickel plated
Stainless Passivation
Crimping Sleeve Brass Nickel plated
Tightening torque of connection 0.79－1.13N .m
Durability 500 cycles
Sealing Ring Silicone Rubber
Insulators PTFE

Environmental Specification:

Operating Temperature -40 to +85Deg C

Product Detail of SMA Coax Connector :

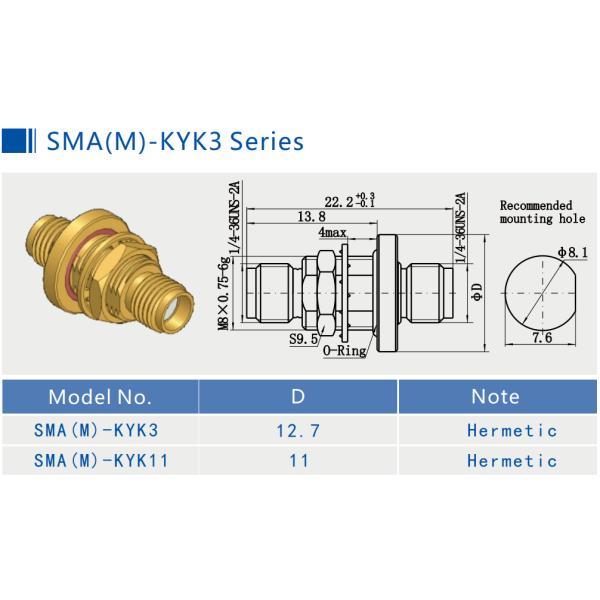

SMA Hermetic RF Cable Connector Female Bulkhead to Female Socket Coax Connector

SMA Hermetic RF Cable Connector Female Bulkhead to Female Socket Coax ConnectorSMA Hermetic RF Cable Connector Female Bulkhead to Female Socket Coax Connector

Features of SMA RF Connector:

1, SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead ,or 4 holes panel configurations
2, SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required
3, SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc
4, SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20GHz)

Application:
* Broadband
* Instrumentation
* Antennas
* Telecom
* Phased array antennas
* Telecommunications

* Board-to-board interconnect

Product Cataloge:

RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)
RF Cable Assemblies
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints


NOTE: We have over 4000 types of interconnect products, if the connector you are using is not found, please contact us with your details.
