SMA Female to SMP Female RF Adapter Connector
SMA Female to SMP Female RF Adapter Connector
SMA Female to SMP Female RF Adapter Connector
SMA Female to SMP Female RF Adapter Connector
SMA Female to SMP Female RF Adapter Connector
SMA Female to SMP Female RF Adapter Connector
SMA Female to SMP Female RF Adapter Connector
SMA Female to SMP Female RF Adapter Connector
SMA Female to SMP Female RF Adapter Connector
SMA Female to SMP Female RF Adapter Connector
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMA/SMP-KK13
Certification :
ROHS ISO-9001-2015
Place of Origin :
China
MOQ :
50
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000,000pcs per week
Delivery Time :
within 3 weeks
Packaging Details :
Standard Export Carton
Product name :
SMA female to SMP female Adapter
Impedance :
50Ω
Dielectric :
PTFE
Type :
RF Adaptor
Application :
RF
Gender :
female to female
Material :
Gold Plated
Lifespan :
500 Circles
Description

Rohs SMA Straight Female to SMP Female RF Adapter Connector

The SMA RF coaxial connector is a small, high frequency coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20 Ghz.


SMP electrical connectors are snap-on RF coaxial connectors with subminiature size, light weight, good anti-vibration capability and wide frequency range up to 30 GHz (Our SMP coaxial RF connectors can reach up to 40 GHz or more), which makes them ideal RF connectors for intensive interconnection conditions where small size, high-performance and reliable connectors are needed.

As manufacturer, we can customize SMA connectors and adapters as per your different requirement. Orientations in straight and right angle, with 2-hole or 4-hole flange or threaded bulkhead, hermetic and waterproof types are all available upon request.Please click and download attached Catalog SMA RF Adapter.pdf.

Electrical Characteristics of SMA RF Adapter

Impedance 50 Ω
Frequency Range DC - 18 GHz
Voltage Rating 335VRMS (Max. Sea Level)
Dielectric Withstand Voltage 1000 VRMS (Max. Sea Level)

VSWR

(Voltage Standing Wave Ratio)

 ≤ 1.3
Contact Resistance

Center Conductor ≤ 3.0 mΩ

Outer Conductor ≤ 2.0 mΩ
Insulation Resistance ≥ 5000 MΩ

Other SMA Male Female to SMP Male Female RF Adapter

Part Number
Description
SMA/SMP-KFK1
SMA female to SMP female adapter
SMA/SMP-KFK2
SMA female to SMP female adapter
SMA/SMP-KFK14
SMA female to SMP female adapter
SMA/SMP-KFK18
SMA female to SMP female adapter

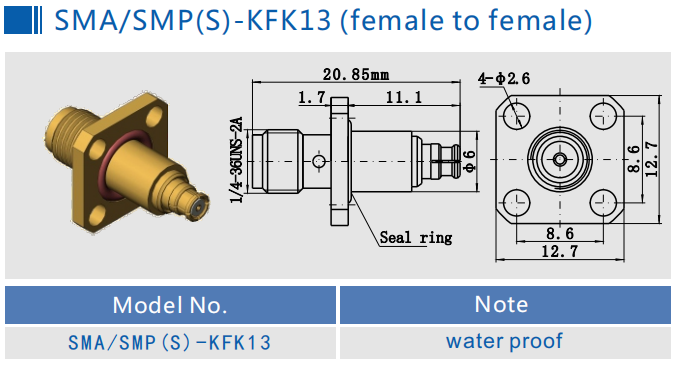

SMA/SMP(S)-KFK13
SMA female to SMP female adapter

1.

SMA Female to SMP Female RF Adapter Connector

2.

SMA Female to SMP Female RF Adapter Connector

3.

SMA Female to SMP Female RF Adapter Connector

4.

SMA Female to SMP Female RF Adapter Connector

5.

SMA Female to SMP Female RF Adapter Connector

Application:

Network Satcom
Computer/LANs Computer/LANs
Mobile communication Instrumentation
Base Station Mobile communication
Outdoor facilities Radar,microwave
Telecommunications Instrumentation
Automotive Jump line join
Basic facility Radio, TV aerial system

Workshop & Exibition

SMA Female to SMP Female RF Adapter Connector

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
