Female 2.4mm RF Connector 4 Holes Flange Mount MMW Cable Connector
Female 2.4mm RF Connector 4 Holes Flange Mount MMW Cable Connector
Female 2.4mm RF Connector 4 Holes Flange Mount MMW Cable Connector
Female 2.4mm RF Connector 4 Holes Flange Mount MMW Cable Connector
Specifications
Brand Name :
ELT (Elite)
Model Number :
2.4-KF130G
Certification :
CE ROHS
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
35000pcs/year
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Product name :
2.4mm RF Coaxial Conector
Impedance :
50Ω
Lifetime :
500Cycles
Application :
Computer/LANs
Material :
Stainless steel
Plating :
Passivated
Gender :
Female
Certificate :
CE Rohs
Description

Female 2.4mm RF Connector 4 Holes Flange Mount MMW Cable Connector


2.4 Type product is a high performance millimeter wave connector, the frequency is 50 GHz, use air interface threaded connect,with characteristics of small volume, light weight, high use frequency, reliable connect, it is widely used in high frequency microwave measurement and millimeter wave devices.

The high precision 50 ohm coaxial 2.4mm connectors for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.

Specification

Electrical Characteristics
Impedance
50Ω
Frequency Range
DC～50GHz
Rated Voltage
170VRMS (Maximum sea-level)
Dielectrics Voltage-resistance
500VRMS (Maximum sea-level)
Insulation Resistance
≥5000MΩ

Contact Resistance

Outer conductor
≤2mΩ
Center conductor
≤3mΩ
VSMR
≤1.05+0.005f

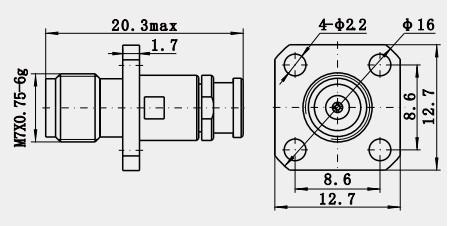

Detailed Drawing:
Female 2.4mm RF Connector 4 Holes Flange Mount MMW Cable Connector
Features:

• Great for applications that require high frequency transmission
• Connector mating interface per MIL-STD-348
• Superior electrical performance up to 50 GHz
• Excellent reliability where extreme shock & vibration conditions are experienced
• Quick connect cable plugs and adapter
• The 2.4mm connector is a precision microwave connectors.
• Stainless steel construction
• Superior electrical performance to 50 GHz
• Connectors in End Launch and Flange options
• Adapters to 2.4mm, SMP, 2.92mm, SMA.

Advantages:

Normal productsElite products
Frequency RangeDC~40GHzDC~65GHz
VSWR≤1.35≤1.3
Durability300 Cycles>500 Cycles


Application:

* Research centres
* Satellite communications
* Avionics, radars
* Navigation systems
* Missiles and guidance systems
* Telecommunication systems
* Instrumentation
* Automotive
* Computer/LANs
* Telecommunications

Our Main Products

RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)
RF Cable Assemblies
Waveguide To Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints


NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
