Micro Rectangle MDM D Sub 9 Pins Connector Hermetic Sockets
Micro Rectangle MDM D Sub 9 Pins Connector Hermetic Sockets
Micro Rectangle MDM D Sub 9 Pins Connector Hermetic Sockets
Micro Rectangle MDM D Sub 9 Pins Connector Hermetic Sockets
Micro Rectangle MDM D Sub 9 Pins Connector Hermetic Sockets
Micro Rectangle MDM D Sub 9 Pins Connector Hermetic Sockets
Micro Rectangle MDM D Sub 9 Pins Connector Hermetic Sockets
Micro Rectangle MDM D Sub 9 Pins Connector Hermetic Sockets
Micro Rectangle MDM D Sub 9 Pins Connector Hermetic Sockets
Micro Rectangle MDM D Sub 9 Pins Connector Hermetic Sockets
Specifications
Brand Name :
ELT
Model Number :
J30JM2-9ZK-JH
Certification :
CE, ROHS
Place of Origin :
China
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
35000pcs/year
Delivery Time :
Within in 3 weeks
Packaging Details :
Standard Export Carton
Out Shell :
aluminum alloy
Contact Pin :
9 pins
Material :
Metal
Contact Spacing :
1.27mm
Section area :
0.1-0.15mm²
Standard :
MIL-DTL-83513
Contact type :
micro twist pin, gold plating
Product name :
J30J,Mirco-D, D-sub, MDM
Ceritification :
ROHS ISO-9001-2015
Leak Rate :
≤1.01X10^-3 Pa.cm^3/s
Description

J30JM Hermiticlly D-sub Socket

J30JM micro rectangular female connectors are hermetic sockets with dielectric in glass and contact spacing 1.27mm. For end termination styles, they can be applicable to wires with sectional area Φ0.1-0.15mm2, or soldered onto PCB directly. These connectors are designed exclusively for the conditions where hermetic sealing is requested. They have characteristics of small size, light weight, reliable connection, excellent electromagnetic shielding effectiveness, vibration and shock resistance etc.

Contact Arrangements
(Face View of Pin insert)

Micro Rectangle MDM D Sub 9 Pins Connector Hermetic Sockets

Specification:

Micro Rectangle MDM D Sub 9 Pins Connector Hermetic SocketsMicro Rectangle MDM D Sub 9 Pins Connector Hermetic SocketsMicro Rectangle MDM D Sub 9 Pins Connector Hermetic Sockets

Current Rating 3A
Voltage Rating 300V
Insulation Resistance ≥ 5000 MΩ
Durability 500 cycles
Dielectric Withstand Voltage 800
Environmental Temperature -55℃ ~ + 125℃
Relative Humidity up to 95% at +40℃
Vibration 10Hz~ 2000Hz 196m/S²
Total acceleration RMS 23.1G
Impact 735m/S²

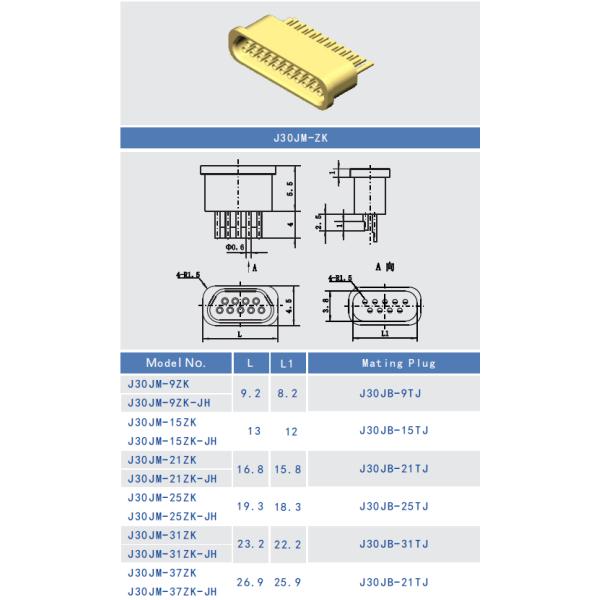

Outer Dimension Drawing

Micro Rectangle MDM D Sub 9 Pins Connector Hermetic Sockets

Features:

* Standard:equivalent MIL-DTL-83513
* The series of products including 9,15,21,25,31,37cores

* The termination style is right angle contact for PCB, and the reseau is 1.27×2.54(row ×line)

* Twist pin
* The section area of suitable cable is 0.1~0.15 mm2
* The cable of section area for 0.07 mm2
* 1, 2, 3 ,4-raw options
* High density connection
* There have straight, right-angle models choice
* Low contact resistance, high current capability, high dielectric strength.
* Custom designed connectors and cable assemblies.
* Straight, right-angle models choice
* Space and weight saving.
Types:

- J30J series
- J30JM( Hermetic) series
- J30(Plastic) series
- J50J series
- J55A series
- J55AM( Hermetic) series
- J56J series
Applications:

- Avionics, radars
- Missiles and guidance systems
- On-board equipment
- Telecommunication systems

- Research centres

- Military

- GPS

- UAV

- Communications

- Satcom

- Navigation systems
- Research centres
- Medical applications
- Surface Mount (SMT) Board to Cable
