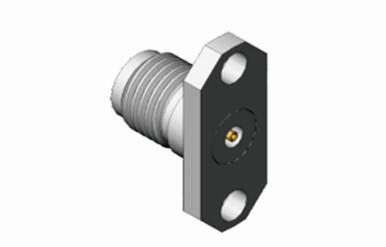

K2.92mm Female Stainless Steel 2-hole Flange RF Coaxial Connector With Micro-strip
K2.92mm Female Stainless Steel 2-hole Flange RF Coaxial Connector With Micro-strip
K2.92mm Female Stainless Steel 2-hole Flange RF Coaxial Connector With Micro-strip
K2.92mm Female Stainless Steel 2-hole Flange RF Coaxial Connector With Micro-strip
Specifications
Brand Name :
ELT
Model Number :
K-KFD38G
Certification :
ISO-9001-2015
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
35000pcs/year
Delivery Time :
Within 5-7 workdays(for stocks)
Packaging Details :
Standard Export Carton
Insulator :
PTFE
Gender :
Female
Product name :
2.92mm,K type,SMK
Key features :
2 Holes Flange Panel Connectors
Item :
Millimeter Wave Connectors
Plating :
Passivated
Application :
Computer/LANs
Material :
Stainless Steel
Description

K2.92mm Female Stainless Steel 2-hole Flange RF Coaxial Connector with Micro-strip

The K-type connector, also known as the 2.92-type connector, is a widely used millimeter-wave connector series with a frequency range of up to 40 GHz. It can be interchanged with SMA and 3.5 series products and features an air interface. This series offers advantages such as compact size, lightweight design, high-frequency operation, and reliable connectivity.

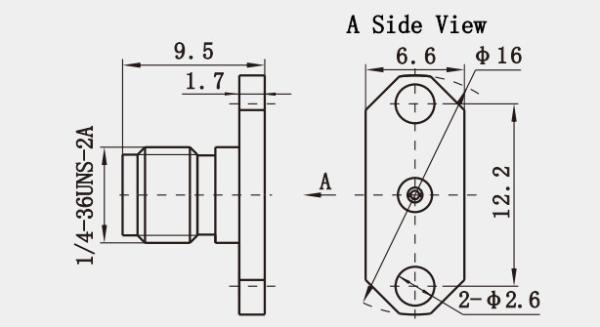

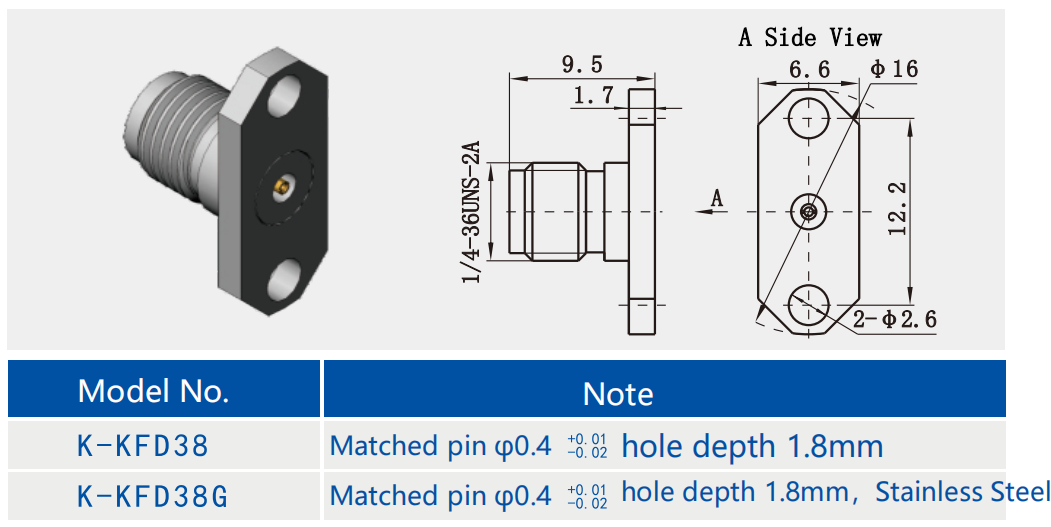

Outline Drawing of K2.92mm Female Stainless Steel 2-hole Flange RF Coaxial Connector with Micro-strip:(mm)

K2.92mm Female Stainless Steel 2-hole Flange RF Coaxial Connector With Micro-strip

Specification:

Note:The specific data of the model are based on the data in the product specification sheet.

Impedance 50 Ω
Frequency Range DC - 40GHz
Voltage Rating 250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage 750 VRMS (Max. Sea Level)
Voltage Standing Wave Ratio
VSWR		 ≤ 1.05 + 0.005f
Contact Resistance Center Conductor ≤ 3.0 mΩ
Outer Conductor ≤ 2.0 mΩ
Insulation Resistance ≥ 5000MΩ
Inner Conductor Male plug: Brass, Gold Plated
Female Jack: BeCu, Gold Plated
Resilient Contact BeCu, Nickel Plated
Body / Shell / Housing Brass, Gold Plated
Stainless Steel, Passivated
Insulator PEI
Gasket Silicone Rubber
Temperature -55℃ ~ +125℃
Durability 500 Cycles
Torque 0.79 ~ 1.13 N.m

Other 2.92mm Male Female RF Connector

Part Number
Description
K-KFD3
2.92mm Type K Female RF Coaxial Connector
K-KFD42
Stainless steel 2.92mm Type K Female RF Coaxial Connector
K-KFD62G
2.92mm Type K Female RF Coaxial Connector

K-JFD9G
Stainless steel 2.92mm Type K Male RF Coaxial Connector

1.

K2.92mm Female Stainless Steel 2-hole Flange RF Coaxial Connector With Micro-strip

2.

K2.92mm Female Stainless Steel 2-hole Flange RF Coaxial Connector With Micro-strip

3.

K2.92mm Female Stainless Steel 2-hole Flange RF Coaxial Connector With Micro-strip

4.

K2.92mm Female Stainless Steel 2-hole Flange RF Coaxial Connector With Micro-strip

Features:

  1. Durability and Reliability: Made from high-quality stainless steel, this connector exhibits excellent mechanical strength and corrosion resistance. These properties ensure long-term durability and reliable performance even in harsh environmental conditions, which is crucial for both outdoor communication infrastructure applications.
  2. Low Insertion Loss and Return Loss: The design of the 2.92mm connector minimizes signal loss during transmission, ensuring efficient signal transfer with minimal attenuation. Low return loss (reflection loss) further enhances the effectiveness of the connector by reducing signal reflections, thereby maintaining signal integrity over longer distances.
  3. Compatibility and Interchangeability: The 2.92mm connector is designed to be compatible with other industry-standard connectors such as SMA and 3.5 series connectors, allowing for seamless integration into existing systems. This interchangeability simplifies system upgrades and maintenance while providing flexibility in design choices.

Application:

1. Communication Systems:
Microwave Transmission: Used in transmitting high-frequency signals in microwave communication systems.
Base Stations: Integral in antenna arrays for cellular base stations where high-frequency signals are crucial.
Satellite Communications: Essential for connecting components in satellite transceivers and feed systems.

2.Aerospace :
Avionics Systems: Critical for aircraft communication and navigation systems.
Space Exploration: Employed in spacecraft communication and data transmission systems.

3.Industrial Automation:
Sensor Networks: Important for industrial sensor networks requiring high-reliability connections.
Control Systems: Used in control systems for manufacturing automation.

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
