N Male Stainless Steel RF Coaxial Connector Solder Clamp Mount
N Male Stainless Steel RF Coaxial Connector Solder Clamp Mount
N Male Stainless Steel RF Coaxial Connector Solder Clamp Mount
N Male Stainless Steel RF Coaxial Connector Solder Clamp Mount
Specifications
Brand Name :
ELT (Elite)
Model Number :
N-J417G
Certification :
ISO-9001-2015
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1,000,000 Pieces Per Month
Delivery Time :
Within 5-7 workdays(for stocks)
Packaging Details :
Standard Export Carton
Product name :
N Type RF Coaxial Conector
Plating :
Gold Plated/ Nickel Plated
Impedance :
50Ω
Frequency Range :
DC~11GHz(Max.18GHz)
Model :
N-J417G
VSWR :
≤1.3
Description

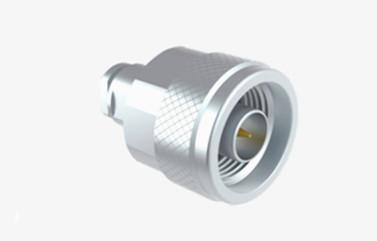

N Male Stainless Steel RF Coaxial Connector Solder Clamp Mount

N-type connectors feature threaded couplings, providing strong anti-vibration capabilities and excellent electrical performance, typically supporting frequencies up to 11GHz. Our advanced models extend this range to 18GHz. The threaded design minimizes noise and effectively withstands shock and vibration. Our LTI N connectors adhere to MIL-C-39012 standards. They are versatile, compatible with various RF cable types, and widely used in aviation, aerospace, radar systems, microwave communications, digital telecommunications, and test and measurement instruments.
We offer customization for various N-type connectors and adapters to meet diverse customer needs, whether you require straight or right-angle configurations, flange mount or bulkhead mount options.

N Male Stainless Steel RF Coaxial Connector Solder Clamp Mount


Specification
Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance50Ω
Frequency RangeDC~11GHz(Max.18GHz)
Rated Voltage1000VRMS*(Max.Sea Level)
Dielectrics Voltage-resistance1500VRMS*(Max.Sea Level)
Insulation Resistance≥5000MΩ
Center ResistanceOuter conductor≤0.5mΩ
Center conductor≤1.5mΩ
VSWR≤1.3
Material & Mechanical Characteristics
Center ConductorMaleBrass,

Nickel Plated

FemalePhosphor Bronze,

Nickel Plated

Resilient ContactPhosphor BronzeNickel Plated
Shell / HousingBrass Stainless steel

Nickel Plated

Cable ClampBrassNickel Plated
InsulatorPTFE
GasketSilicone Rubber
Durability500 Cycles

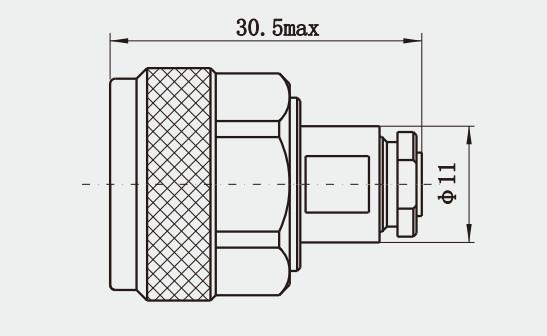

Detailed Drawing
N Male Stainless Steel RF Coaxial Connector Solder Clamp Mount

Product Cataloge:

RF Adapter
RF Cable Assemblies
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
Waveguide to Coaxial Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
TNC RF Connector
N Type RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)



Features:
1. Interchangeability: N-type connectors can be interchanged with international NG-type similar products, which increases its versatility and flexibility.
2. Application areas: Due to its excellent performance and reliability, N-type connectors are widely used in radar, communications, data transmission and aerospace equipment.

Applications:
RF laboratory: In the RF laboratory, N connectors are used to connect various RF instruments and test equipment to support high-frequency, high-power experiments.
Antenna testing: In antenna testing, N-type connectors are used to connect antennas and test equipment to ensure the accuracy and reliability of test data.

Packaging & Delivery:

* Standard Export Carton
* According to customers' requirements


NOTE:
We are looking forward to receiving your inquiry at an early date .Please contact us what you need( Cable length/Connector)so we can offer you theSPEC,And the best quality and service , competitive price , timely response, delivery in time
