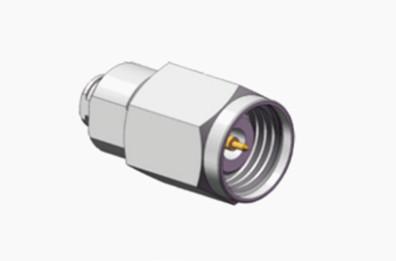

2.4 Millimetre Wave Male Stainless Steel Material RF Connector for CXN3506/MF108A Cable
2.4 Millimetre Wave Male Stainless Steel Material RF Connector for CXN3506/MF108A Cable
2.4 Millimetre Wave Male Stainless Steel Material RF Connector for CXN3506/MF108A Cable
2.4 Millimetre Wave Male Stainless Steel Material RF Connector for CXN3506/MF108A Cable
Specifications
Brand Name :
ELT (Elite)
Model Number :
2.4-J506G
Certification :
ISO-9001-2015
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
35000pcs/year
Delivery Time :
Within 5-7 workdays(for stocks)
Packaging Details :
Standard Export Carton
Product name :
2.4mm RF Coaxial Conector
Plating :
Passivated
Impedance :
50Ω
Certificate :
ISO-9001-2015
Type :
male
Lifetime :
500Cycles
Application :
Computer/LANs
Material :
Stainless steel
Description

2.4 Millimetre Wave Male Stainless Steel Material RF Connector for CXN3506/MF108A Cable


2.4 mm High-Frequency Adapters and Connectors

The 2.4 series connector is a high-performance millimeter wave connector designed for operations up to 50GHz, featuring an air interface threaded connection. It is characterized by its small size, lightweight, high usage frequency, and reliable connections. These connectors are extensively used in high-frequency microwave measurements and millimeter wave equipment.

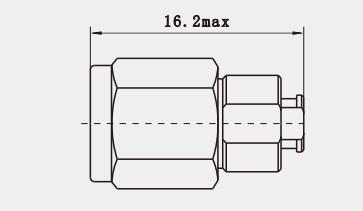

Outline Drawing of 2.4 Millimetre Wave Male Stainless Steel Material RF Connector for CXN3506/MF108A Cable
2.4 Millimetre Wave Male Stainless Steel Material RF Connector for CXN3506/MF108A Cable

Specification of 2.4mm Male Stainless Steel RF Connector for CXN3506/MF108A Cable(mm):

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance
50Ω
Frequency Range
DC～50GHz
Rated Voltage
170VRMS (Maximum sea-level)
Dielectrics Voltage-resistance
500VRMS (Maximum sea-level)
Insulation Resistance
≥5000MΩ

Contact Resistance
Outer conductor
≤2mΩ
Center conductor
≤3mΩ
VSMR
≤1.05+0.005f

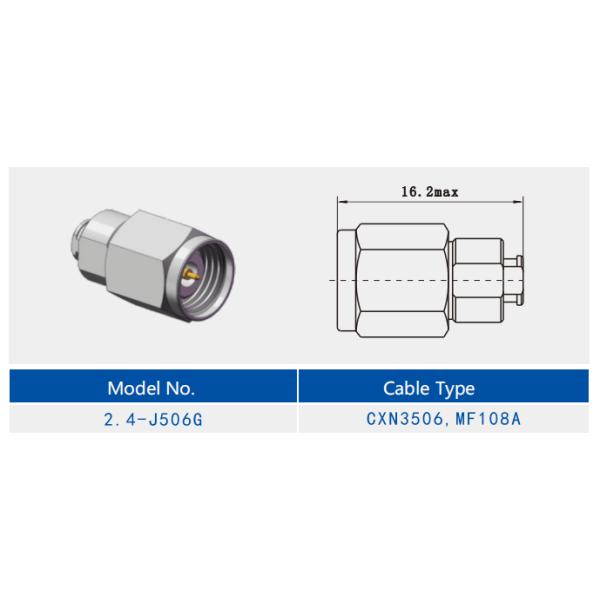

Detailed Drawing of 2.4 Millimetre Wave Male Stainless Steel Material RF Connector for CXN3506/MF108A Cable:
2.4 Millimetre Wave Male Stainless Steel Material RF Connector for CXN3506/MF108A Cable
Features:
Size and Structure: The 2.4mm connector is a precision millimeter wave connector with an external conductor diameter of 2.4mm. This small size allows it to be used in devices with high density while also reducing overall weight.

Compatibility: It can be interconnected with the 1.85mm connector, providing flexible application configurations suitable for various environmental requirements.

Application:
High-Frequency Network Analyzers
Performance Requirements: The 2.4mm connector can operate up to a frequency of 50GHz with a characteristic impedance of 50Ω, making it capable of handling the precise and high-frequency testing requirements of high-frequency network analyzers.
Millimeter Wave Instruments and Systems
Wide Application: The 2.4mm connector is widely used in wireless communications, aerospace, test measurement, and research institutions among other fields for millimeter wave systems. In these areas, it plays a critical role in accurately transmitting high-frequency signals.


Related Products:

2.4 Millimetre Wave Male Stainless Steel Material RF Connector for CXN3506/MF108A Cable

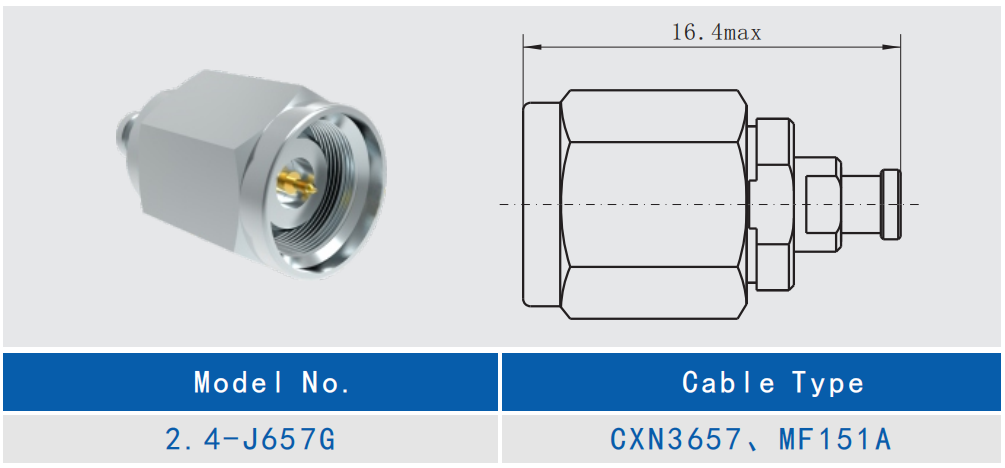

2.4-J657G 2.4mm male stainless steel rf connector for CXN3657/MF151A cable

2.4 Millimetre Wave Male Stainless Steel Material RF Connector for CXN3506/MF108A Cable

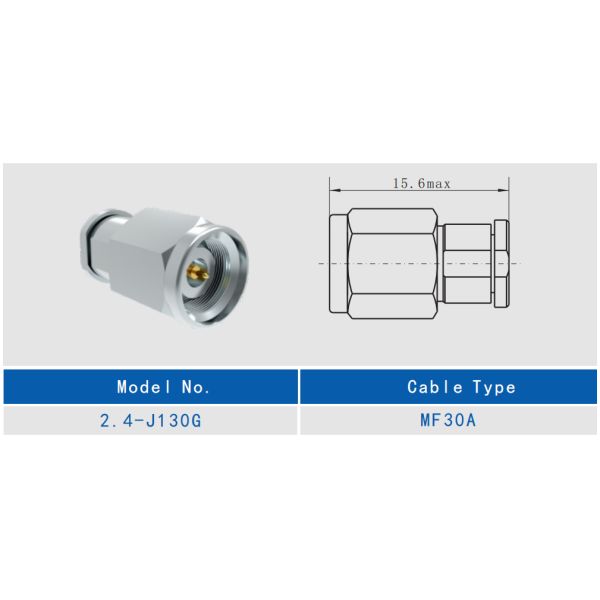

2.4-J130G 2.4mm male rf connector for MF30A cable

2.4 Millimetre Wave Male Stainless Steel Material RF Connector for CXN3506/MF108A Cable

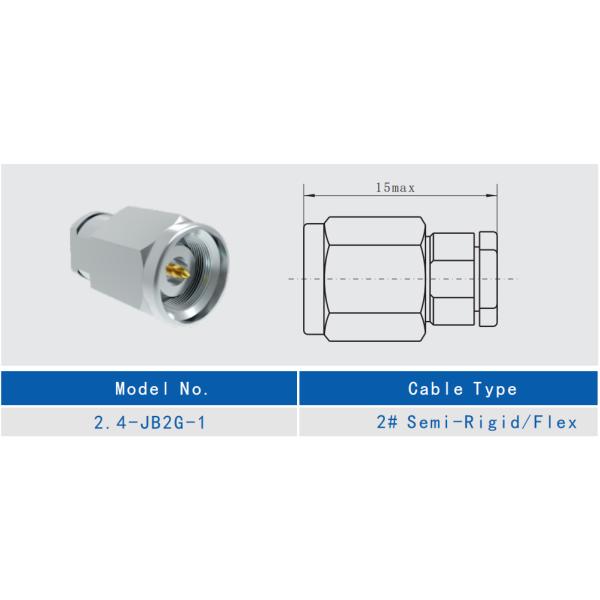

2.4-JB2G-1 2.4mm male stainless steel rf connector for 2#Semi-Rigid/Flex cable


NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.

Send your message to this supplier
