Stainless Steel RF Coaxial Connector Male Plug 2.4 Millimeter Wave for CXN3506/MF108A
Stainless Steel RF Coaxial Connector Male Plug 2.4 Millimeter Wave for CXN3506/MF108A
Stainless Steel RF Coaxial Connector Male Plug 2.4 Millimeter Wave for CXN3506/MF108A
Stainless Steel RF Coaxial Connector Male Plug 2.4 Millimeter Wave for CXN3506/MF108A
Specifications
Brand Name :
ELT (Elite)
Model Number :
2.4-J506G-2
Certification :
ISO-9001-2015
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
35000pcs/year
Delivery Time :
Within 5-7 workdays(for stocks)
Packaging Details :
Standard Export Carton
Product name :
2.4mm RF Coaxial Conector
Impedance :
50Ω
Lifetime :
500Cycles
Application :
Computer/LANs
Material :
Stainless steel
Plating :
Passivated
Gender :
Male
Certificate :
ISO-9001-2015
Item :
2.4mm Straight RF Connectors
Description

Stainless Steel RF Coaxial Connector Male Plug 2.4 Millimeter Wave for CXN3506/MF108A


The 2.4 series connector is a high-performance millimeter wave connector that is designed to operate up to 50GHz and features an air interface threaded connection. It is known for its small size, lightweight, frequent usage, and reliable connections. These connectors are widely used in high-frequency microwave measurements and millimeter wave equipment.

Specification

Electrical Characteristics
Impedance
50Ω
Frequency Range
DC～50GHz
Rated Voltage
170VRMS (Maximum sea-level)
Dielectrics Voltage-resistance
500VRMS (Maximum sea-level)
Insulation Resistance
≥5000MΩ

Contact Resistance
Outer conductor
≤2mΩ
Center conductor
≤3mΩ
VSMR
≤1.05+0.005f

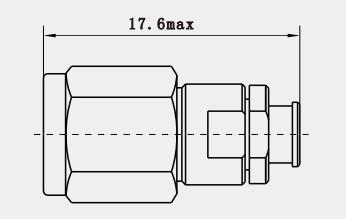

Detailed Drawing of Stainless Steel RF Coaxial Connector Male Plug 2.4 Millimeter Wave for CXN3506/MF108A(mm):
Stainless Steel RF Coaxial Connector Male Plug 2.4 Millimeter Wave for CXN3506/MF108A

Features:
Technological Innovation and Standardization Development: With the advancement of 5G and future 6G communication technologies, the demand for high-frequency, high-speed connectors will further increase. The 2.4mm connector needs continuous technological innovation to meet higher performance requirements. At the same time, standardization is key to future development, ensuring global unified standards to promote the healthy development of the industry.

Advantages:

Normal products Elite products
Frequency Range DC~40GHz DC~65GHz
VSWR ≤1.35 ≤1.3
Durability 300 Cycles >500 Cycles


Application:
High Precision Requirements: In the field of precision measurement, such as millimeter wave communication systems, there is a high demand for accurate signal transmission. The 2.4mm connector, with its high performance and low loss characteristics, ensures the integrity of the signal and the accuracy of the measurement.
Repeatability and Durability: The 2.4mm connector has a plugging number between 500 to 1000 times and features self-righting, effectively protecting the female socket. This improves the reusability and damage resistance of the connector, making it highly suitable for the long-term reliable operation needs of precision measurement equipment.


Our Main Products

RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)
RF Cable Assemblies
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints


NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
