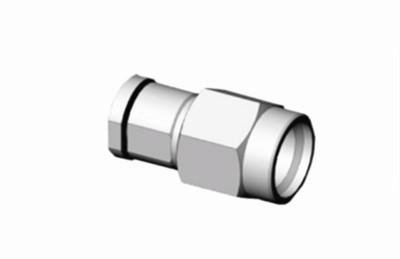

K2.92mm Waterproof Male Stainless Steel RF Coaxial Connector Plug

Our 50Ohm coaxial 2.92 mm (Female) connectors are meticulously crafted for precision and reliability, offering top-tier performance suitable for universal RF and microwave applications. They are ideal for a wide range of test and measurement scenarios, from cellular to satellite communications, ensuring optimal equipment and cable interconnect compatibility. Made from durable stainless steel, these connectors are designed to withstand frequent use. Their design features an air dielectric system and a low-loss plastic support for the center conductor, minimizing signal loss and enhancing durability.

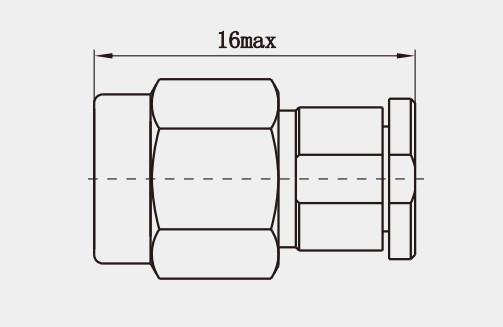

Outline Drawing of K2.92mm Waterproof Male Stainless Steel RF Coaxial Connector Plug

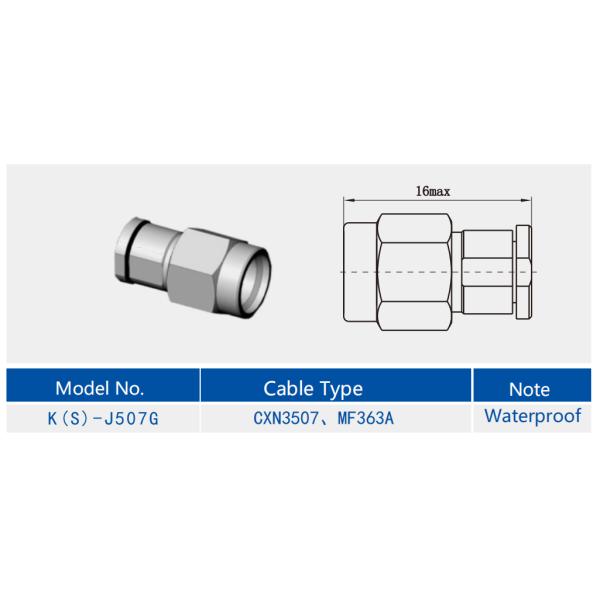

Specification:

Note:The specific data of the model are based on the data in the product specification sheet.

Features:

1. High Frequency and Wide Bandwidth: K-type connectors can be used across a frequency range from DC to 46GHz, making them widely applicable in high-frequency applications.
2. Mechanical and Electrical Compatibility: K-type connectors are mechanically and electrically compatible with existing SMA and APC-3.5 connectors, facilitating their use in various systems.
3. Structural Design for Waterproofing: Waterproof K-type RF coaxial connectors typically feature special designs, such as adding sealing rings or using waterproof materials, to ensure good connection performance in wet or underwater environments.

Application:

1. Wireless Communication: In wireless communication, waterproof K-type RF coaxial connectors are extensively used in base stations, antenna systems, and radio transmission equipment. Their superior waterproof performance and high-frequency broadband characteristics ensure stable signal transmission in harsh outdoor environments, guaranteeing the reliability and stability of wireless communication.
2. Satellite Communication: Satellite communication systems require highly reliable and durable connectors. Waterproof K-type RF coaxial connectors can withstand extreme environmental conditions, such as temperature changes and humidity variations, while maintaining excellent electrical performance, making them an indispensable component of satellite communication systems.

Other 2.92mm Male Female RF Connector:

2.

3.

4.

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
