2.4mm Water Seal Stainless Steel Female to Female RF Adapter Connector
2.4mm Water Seal Stainless Steel Female to Female RF Adapter Connector
2.4mm Water Seal Stainless Steel Female to Female RF Adapter Connector
2.4mm Water Seal Stainless Steel Female to Female RF Adapter Connector
Specifications
Brand Name :
ELT (Elite)
Model Number :
2.4(S)-KFK2G
Certification :
ISO-9001-2015
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
35000pcs/year
Delivery Time :
Within 5-7 workdays(for stocks)
Packaging Details :
Standard Export Carton
Item :
2.4mm RF Coaxial Conector
Impedance :
50Ω
Certificate :
ISO-9001-2015
Gender :
Female
Lifespan :
500Cycles
Application :
Computer/LANs
Material :
Stainless steel
Plating :
Passivated
Description

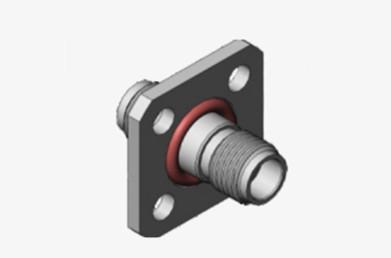

2.4mm Water Seal Stainless Steel Female to Female RF Adapter Connector


The precision 50Ohm coaxial 2.4mm connectors are designed for general-purpose RF and microwave applications. These high-performance connectors are utilized in various test and measurement environments, from cellular to satellite communications, ensuring proper equipment and cable interconnect matching. Made from durable stainless steel, these connectors are built to endure repeated use. They also feature an air dielectric with a low-loss plastic center conductor support.

Specification :

Electrical Characteristics
Impedance
50Ω
Frequency Range
DC～50GHz
Rated Voltage
170VRMS (Maximum sea-level)
Dielectrics Voltage-resistance
500VRMS (Maximum sea-level)
Insulation Resistance
≥5000MΩ

Contact Resistance

Outer conductor
≤2mΩ
Center conductor
≤3mΩ
VSMR
≤1.05+0.005f

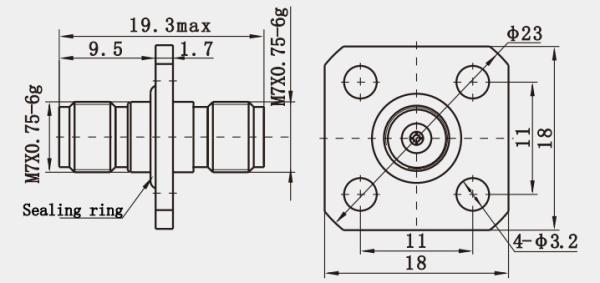

Detailed Drawing :
2.4mm Water Seal Stainless Steel Female to Female RF Adapter Connector

Features:
1. Low Insertion Loss: The design of the 2.4mm waterproof RF adapter focuses on optimizing electrical performance, with low insertion loss being one of its notable features. This means that the energy loss of the signal when connecting or disconnecting is minimized, which is crucial for maintaining signal integrity and system performance.
2. Durability: Made from high-quality materials and precise manufacturing processes, the adapter's durability and long-term stability are ensured. This durability is reflected in its ability to withstand multiple plugging and unplugging operations without damage, thereby ensuring equipment reliability and reducing maintenance costs.
3. Corrosion Resistance: The 2.4mm waterproof RF adapter possesses strong corrosion resistance, making it suitable for various harsh environmental conditions. Whether in high humidity, high salinity, or other corrosive environments, this adapter can maintain stable performance.

Advantages:

Normal productsElite products
Frequency RangeDC~40GHzDC~65GHz
VSWR≤1.35≤1.3
Durability300 Cycles>500 Cycles


Application:
1. High-Frequency Network Analyzers: In the field of precision measurement and network analysis, the 2.4mm waterproof RF adapter is widely used in high-frequency network analyzers. This adapter can provide stable connections up to frequencies of 50GHz, making it particularly suitable for measurements requiring high accuracy and reliability.
2. Millimeter Wave Instrument Systems: Thanks to its small size and high-frequency performance, the adapter is also widely used in various millimeter wave instruments and systems. These systems include high-frequency communication equipment and scientific research instruments, where there are strict limitations on the size and weight of connectors, and the 2.4mm waterproof RF adapter meets these requirements perfectly.
