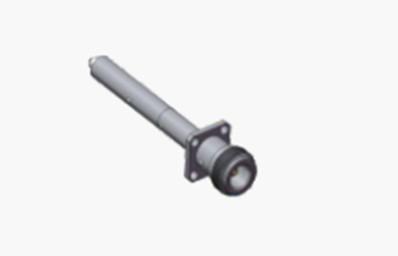

Detailed Drawing

Features:

1. Wide bandwidth transmission: supports a wide range of signal frequencies, ranging from 0 to 11 GHz, and the enhanced type can even cover up to 18 GHz. this makes it capable of meeting the needs of a wide range of RF applications.

2. Low Loss: The use of high quality materials and precise manufacturing process produces very low loss during signal transmission, which helps to improve the efficiency and quality of signal transmission.

Applications:

Structural Design

Threaded Connection: Adopting the threaded method to realize fast and reliable connection, this kind of connection makes the connector maintain stable connection even under the vibration or shock environment, which is suitable for all kinds of occasions that require frequent plugging and unplugging or use in harsh environments.
Components: mainly composed of outer conductor, inner conductor, insulator and locking mechanism and other parts. The outer conductor is usually made of metal materials, with good electrical conductivity and mechanical strength, as a signal transmission loop at the same time, can also play a role in fixing and protecting the internal parts; the inner conductor is also made of metal materials, and the outer conductor together constitute a signal transmission channel, the design needs to ensure that the signal transmission of low-loss and high-efficiency; insulator is located in the inner and outer conductor between, used to isolate the two, to prevent the signal from shorting out! The insulator is located between the inner and outer conductors and is used to isolate the two and prevent short-circuiting of the signal. The materials used are usually those with stable dielectric constants and good temperature resistance; the locking mechanism is rotated and locked to achieve a stable connection.

Product Cataloge:

NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
