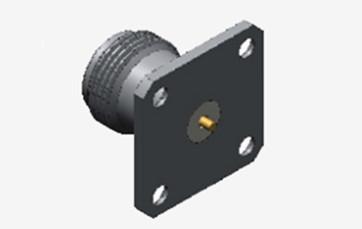

High Performance N Type Female RF Coaxial Connector with Microstrip
High Performance N Type Female RF Coaxial Connector with Microstrip
High Performance N Type Female RF Coaxial Connector with Microstrip
High Performance N Type Female RF Coaxial Connector with Microstrip
Specifications
Brand Name :
ELT (Elite)
Model Number :
N-KFD506
Certification :
ISO-9001-2015
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1,000,000 Pieces Per Month
Delivery Time :
Within 5-7 workdays(for stocks)
Packaging Details :
Standard Export Carton
Product name :
N Type RF Coaxial Conector
Plating :
Gold Plated/ Nickel Plated
VSWR :
≤1.3
Frequency Range :
DC~11GHz
Model :
N-KFD506
Impedance :
50Ω
Description

High Performance N Type Female RF Coaxial Connector with Microstrip

The N series connectors are designed and produced in accordance with MIL-C-39012 standards, featuring threaded connections that utilize air as the dielectric medium. They deliver exceptional electrical performance with frequency capabilities up to 11 GHz. Our company's precision connectors can achieve frequencies of up to 18 GHz and are compatible with various radio frequency cable types. Owing to their outstanding resistance to shocks, high dependability, broad frequency range, and other merits, they are extensively utilized in sectors such as aviation, aerospace, radar systems, microwave communications, digital communication, and microwave measurements. Furthermore, N-type connectors serve as widely used test interface connectors in testing instruments.

Specification

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~11GHz(Max.18GHz)
Rated Voltage 1000VRMS*(Max.Sea Level)
Dielectrics Voltage-resistance 1500VRMS*(Max.Sea Level)
Insulation Resistance ≥5000MΩ
Center Resistance Outer conductor ≤0.5mΩ
Center conductor ≤1.5mΩ
VSWR ≤1.3
Material & Mechanical Characteristics
Center Conductor Male Brass, Gold plated
Female Phosphor Bronze, Gold plated
Resilient Contact Phosphor Bronze Nickel Plated Passivated
Shell / Housing Brass Stainless steel Gold plated Passivation
Cable Clamp Brass Nickel Plated
Insulator PTFE
Gasket Silicone Rubber
Durability 500 Cycles

Features

Gold plated
Sub-miniature
DC to 40GHz
Compact size
Push-on or snap coupling
Full detent, Limited detent and Smooth bore
PCB & cable mount connector
Male and Female, Straight and Right Angle choice
Cable mount versions for both flexible and semi-rigid cable Materials
Normal type and hermetic, Flange mount & Thread-In Mount choice

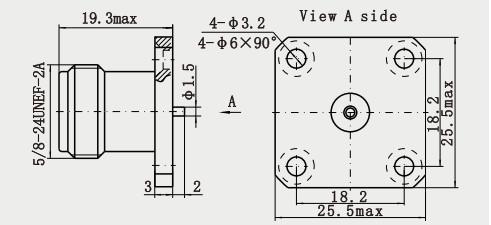

Detailed Drawing

High Performance N Type Female RF Coaxial Connector with Microstrip

High Performance N Type Female RF Coaxial Connector with Microstrip

Features:

1. High shielding: the shell is usually made of metal material with good electromagnetic shielding performance, which can effectively prevent the influence of external electromagnetic interference on signal transmission.

2. Strong durability: After special treatment and testing, it can work stably under harsh environmental conditions (such as high temperature, low temperature, humidity, etc.) and has a long service life.

3. Good compatibility: Compatible with many types of cables, including semi-rigid cables and flexible cables, etc., which makes it more widely applicable in practical applications.

Applications:

1. Compatibility: Compatible with many types of cables, including semi-rigid cables and flexible cables, etc., which makes it more widely applicable in practical applications.

2. Appearance diversity: The shape is divided into straight or right angle type and 4-hole flange type, press-in type, spacer type, 2-hole panel type, 4-hole panel type or no-loading type and other styles, which can satisfy the installation needs of different application scenarios.

3. High shielding: the shell is usually made of metal material with good electromagnetic shielding performance, which can effectively prevent the influence of external electromagnetic interference on signal transmission.

Product Cataloge

RF Adapter
RF Cable Assemblies
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
Waveguide to Coaxial Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
TNC RF Connector
N Type RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)

Packaging & Delivery

* Standard Export Carton
* According to customers' requirements

NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
