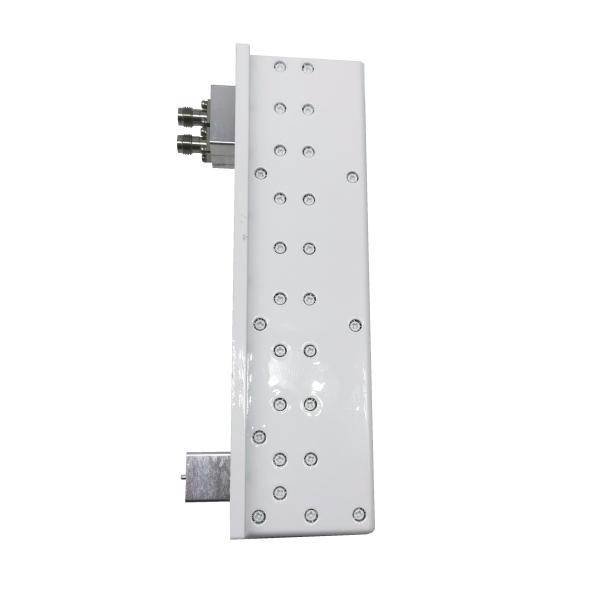

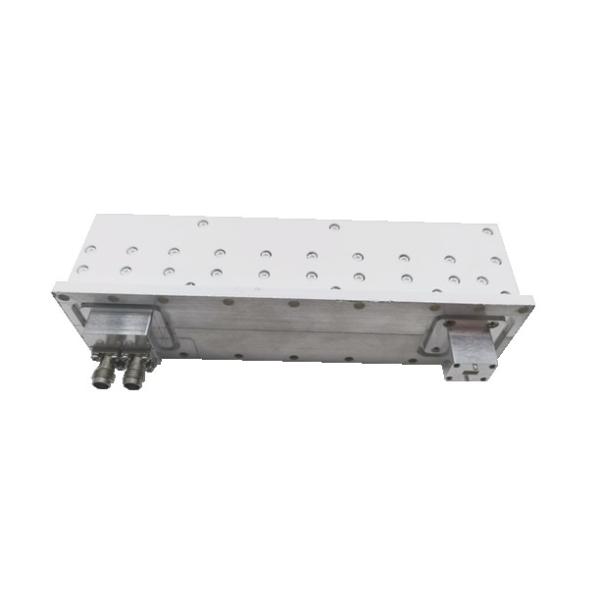

40dB 47.3 51.4 GHz RF Microwave Directional Coupler
40dB 47.3 51.4 GHz RF Microwave Directional Coupler
Specifications
Brand Name :
Sinoscite
Model Number :
CP47.3 51.4GW 3117
Certification :
ISO 9001:2015
Place of Origin :
Sichuan, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Piece per month
Delivery Time :
Less than 4weeks
Packaging Details :
Standard exporting carton , each product individually wrapped, high density foam protection professional packing.
Operation frequency :
13.75-14.5GHz
Coupling :
40dB
Directivity :
≥15dB
VSWR (main line) :
≤1.1
VSWR (sub line) :
≤1.25
Average Power :
250W
Description
High Performance Customization 47.3 51.4 GHz RF Microwave Directional Coupler
Model CP47.3 51.4GW 3117
Operating Frequency 47.3-51.4 GHz
Insertion Loss 0.3dB
Positive and negative coupling 32±0.5dB
Reverse coupling 40±0.5 dB
Main line VSWR 1. 2
Sub line VSWR 1.4
Isolation 18dB
Interface mainline BJ500, subline 1.85mm-K
Surface treatment spraying (refer to the color plate for details)
40dB 47.3 51.4 GHz RF Microwave Directional Coupler40dB 47.3 51.4 GHz RF Microwave Directional Coupler
40dB 47.3 51.4 GHz RF Microwave Directional Coupler
