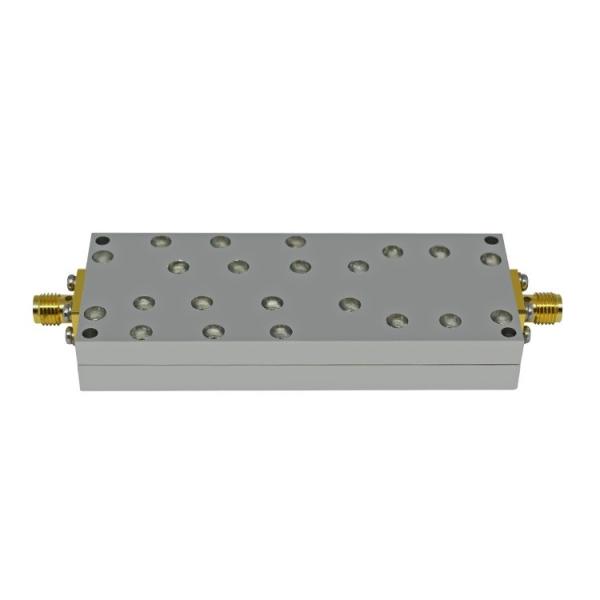

DC 2850MHz Low Pass RF Cavity Filter
DC 2850MHz Low Pass RF Cavity Filter
DC 2850MHz Low Pass RF Cavity Filter
DC 2850MHz Low Pass RF Cavity Filter
Specifications
Brand Name :
Sinoscite
Model Number :
LPF8032A2850SF
Certification :
ISO 9001:2015
Place of Origin :
Sichuan, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Piece per month
Delivery Time :
Less than 4weeks
Packaging Details :
Standard exporting carton , each product individually wrapped, high density foam protection professional packing.
Pass Band Range :
DC ~ 2850MHz
Insertion loss :
1.5dB@ DC~2800MHz
VSWR :
1.8
Rejection :
45dB @3.2 ~ 18GHz
Power :
5W
Connector Type :
SMA Female
Temperature :
-40~+85°C
Customize :
available
Description

Customized RF Cavity Filter DC-2850MHz Low Pass Filter RF Cavity Filter

Product Details

Product Name
Low Pass Filter
Model No.
UIYLPF8032A2850SF
Pass Band Range
DC-2850MHz
Insertion Loss
1.5dB@ DC~2800MHz
VSWR
1.8
Rejection
45dB @3.2 ~ 18GHz
Reverse Power
5W
Connector Type
SMA Female
Temperature
-40~+85°C

Dimension&Specification

DC 2850MHz Low Pass RF Cavity Filter

DC 2850MHz Low Pass RF Cavity FilterDC 2850MHz Low Pass RF Cavity FilterDC 2850MHz Low Pass RF Cavity Filter
