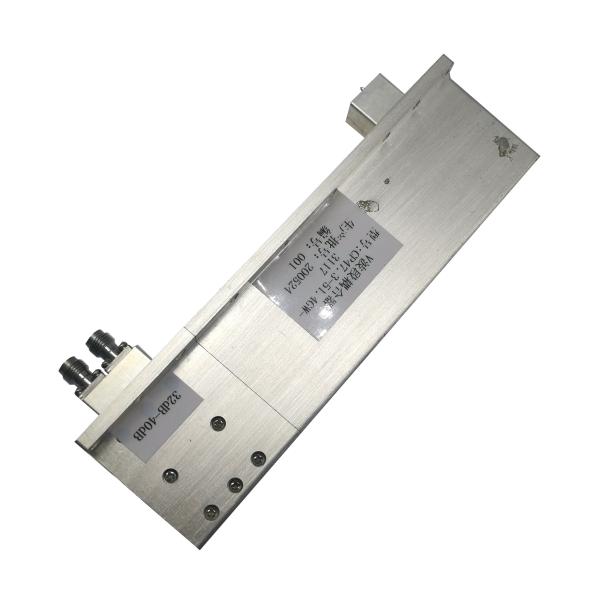

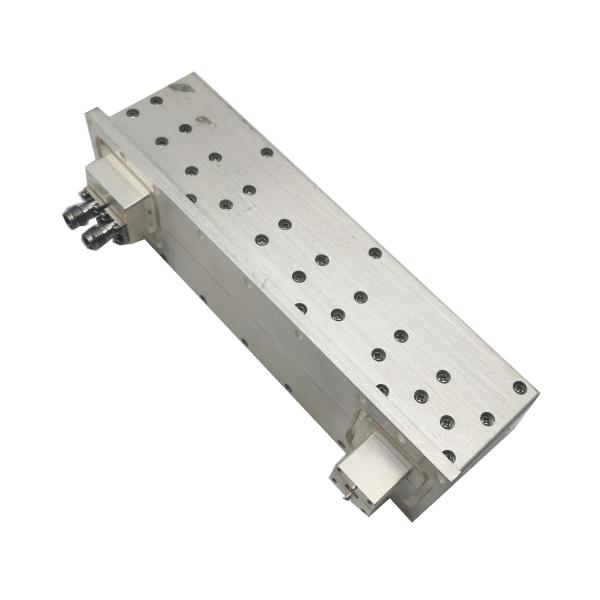

250W 51.4 GHz RF Directional Coupler In Microwave
250W 51.4 GHz RF Directional Coupler In Microwave
250W 51.4 GHz RF Directional Coupler In Microwave
250W 51.4 GHz RF Directional Coupler In Microwave
Specifications
Brand Name :
Sinoscite
Model Number :
CP47.3 51.4GW 3117
Certification :
ISO 9001:2015
Place of Origin :
Sichuan, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Piece per month
Delivery Time :
Less than 4weeks
Packaging Details :
Standard exporting carton , each product individually wrapped, high density foam protection professional packing.
Operation frequency :
13.75-14.5GHz
Coupling :
40dB
Directivity :
≥15dB
VSWR (main line) :
≤1.1
VSWR (sub line) :
≤1.25
Average Power :
250W
Description
High Performance Customization 47.3 51.4 GHz RF Microwave Directional Coupler
detail
1.Model: CP47.3 51.4GW 3117
2.Operating Frequency: 47.3 51.4 GHz
3.Insertion Loss: 0.3dB
4.Positive and negative coupling: 32±0.5dB
5. Reverse coupling: 40±0.5 dB
6. Main line VSWR: 1. 2
7. Sub line VSWR: 1.4
8.Isolation: 18dB
9. Interface: mainline BJ500, subline 1.85mm-K
10.Surface treatment: spraying (refer to the color plate for details)
250W 51.4 GHz RF Directional Coupler In Microwave250W 51.4 GHz RF Directional Coupler In Microwave250W 51.4 GHz RF Directional Coupler In Microwave
