4.3-10 N Female Wideband Hybrid Coupler RoHS Compliant Stable Performance
4.3-10 N Female Wideband Hybrid Coupler RoHS Compliant Stable Performance
Specifications
Place of Origin :
Sichuan, China
Brand Name :
Sinoscite
Certification :
ISO 9001:2015
Model Number :
SNSD
MOQ :
1 Piece
Price :
Negotiable
Packaging Details :
Standard exporting carton , each product individually wrapped, high density foam protection professional packing.
Delivery Time :
Less than 4weeks
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Piece per month
Frequency Range :
698-2700MHz
Insertion Loss(dB :
6.1±0.9dB
Isolation :
30dB min, 32dB type
VSWR :
1.15
Power Handling :
500W per port
Impedance :
50Ω
PIM :
-160dBc@2x43dBm inputs
Connector :
4.3-10 type female
Description

Stable Performance 4.3-10 N Female Low VSWR Low PIM Hybrid Coupler

It is a 4in4out Low PIM Hybrid Coupler, covering frequency bands from 698 to 2700MHz. It offers a low insertion loss, high isolation and low PIM. It's widely used in distributed antenna system for mobile communication.


Products Features:

• Low Insertion Loss
• High isolation
• Low PIM as -160dBc@2x43dBm inputs
• Available for all indoor and outdoor applications
• Connectors: 4.3-10 type female
• RoHS compliant
• Applications: wireless base station, indoor DAS, metro coverage etc.

Parameter
Specifications
Frequency Range
698-2700MHz
Insertion Loss
≤6.1±0.9dB
Power Handling
500W per port
Isolation
30dB min, 32dB typ
VSWR
≤1.15
PIM
≤-160dBc at 2x43dBm inputs
Impedance
50Ω
Weight
4.2Kg
Dimensions
355.2mm * 143.8mm * 57.4mm
Connector
4.3-10 type female
Colour
Aluminum colour
Operating Temperature
-35 to 70ºC
Application
Outdoor
Mounting
Wall Mount
Waterproof Grade
IP65

4.3-10 N Female Wideband Hybrid Coupler RoHS Compliant Stable Performance

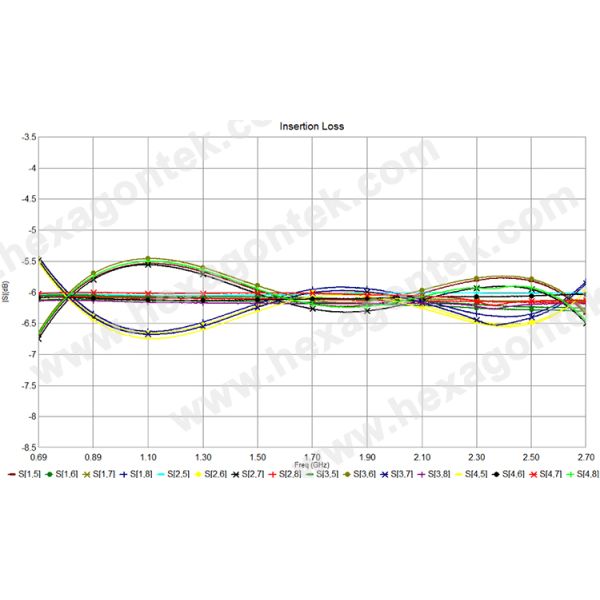

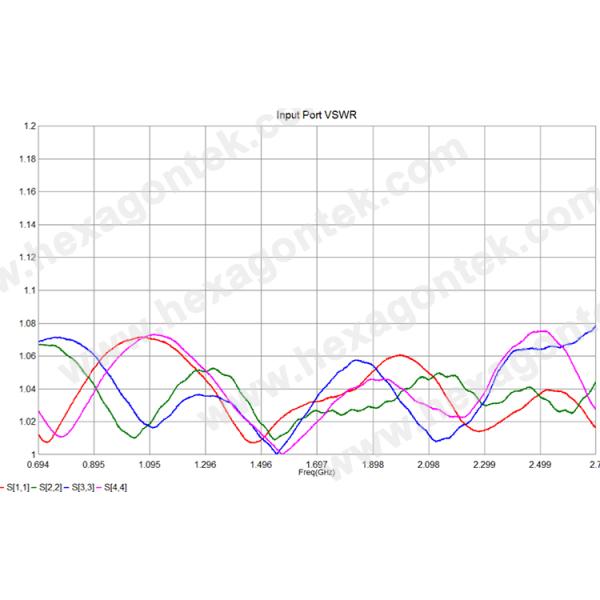

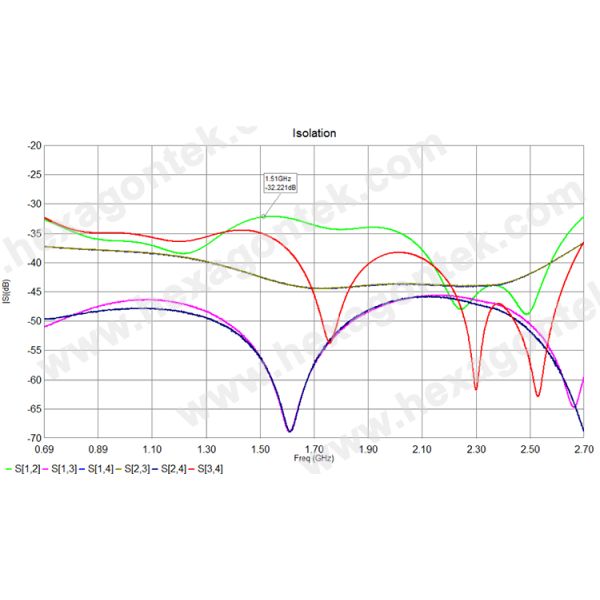

S Parameters

4.3-10 N Female Wideband Hybrid Coupler RoHS Compliant Stable Performance4.3-10 N Female Wideband Hybrid Coupler RoHS Compliant Stable Performance4.3-10 N Female Wideband Hybrid Coupler RoHS Compliant Stable Performance
