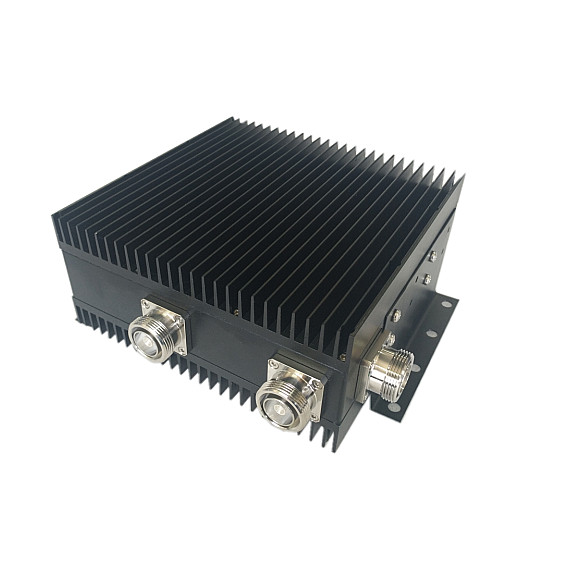

Low PIM Passive Combiner Broadband RF Hybrid Coupler 698 - 2700 MHz - 160 Dbc
Low PIM Passive Combiner Broadband RF Hybrid Coupler 698 - 2700 MHz - 160 Dbc
Low PIM Passive Combiner Broadband RF Hybrid Coupler 698 - 2700 MHz - 160 Dbc
Low PIM Passive Combiner Broadband RF Hybrid Coupler 698 - 2700 MHz - 160 Dbc
Specifications
Brand Name :
Sinoscite
Model Number :
SNSD
Certification :
ISO 9001:2015
Place of Origin :
Sichuan, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Piece per month
Delivery Time :
Less than 4weeks
Packaging Details :
Standard exporting carton , each product individually wrapped, high density foam protection professional packing.
Frequency Range :
698-2700 MHz
Insertion Loss(dB :
0.6dB
Isolation :
23dB
VSWR :
1.25
Power Handling :
200/300/500W
Impedance :
50Ω
PIM :
-160dBc
Connector :
NF/DINF/4.3-10F
Description

Low PIM Passive Combiner Hybrid Coupler 698 - 2700 MHz - 160 dbc

Technical Specification:

product name. Low PIM passive combiner hybrid combinercoupler 698-2700MHz-160dBC
Frequency(MHz) 698-2700
Coupling(dB) 3.1
Coupling Accuracy (dB) ±0.6
Isolation(dB) ≥25
VSWR ≤1.25
PIM(dBc) ≤-150/160dBc@2*43dBm
Average Power(W) 200
Impedance 50 ohm
Connector NF/DINF/4.3-10F
Color Black
Working Temperature (deg) -40~+65
Application Indoor & Outdoor, IP67
Relative Humidity 5%-95%

Low PIM Passive Combiner Broadband RF Hybrid Coupler 698 - 2700 MHz - 160 DbcLow PIM Passive Combiner Broadband RF Hybrid Coupler 698 - 2700 MHz - 160 Dbc
