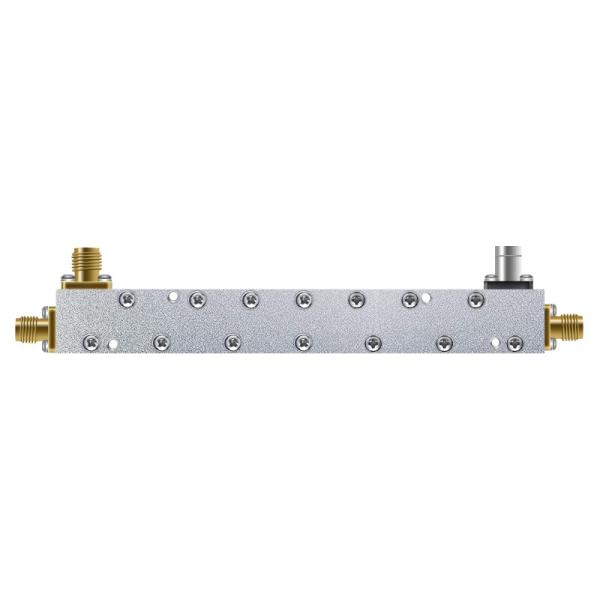

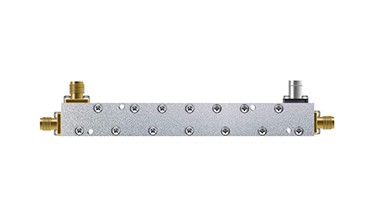

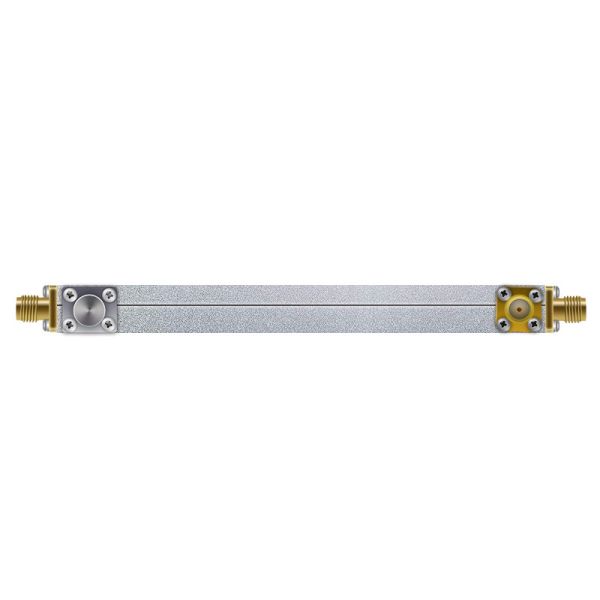

400-6000 GHz 10 Dbi Hybrid Directional Coupler With SMA Female Connector Adapter
400-6000 GHz 10 Dbi Hybrid Directional Coupler With SMA Female Connector Adapter
400-6000 GHz 10 Dbi Hybrid Directional Coupler With SMA Female Connector Adapter
400-6000 GHz 10 Dbi Hybrid Directional Coupler With SMA Female Connector Adapter
Specifications
Brand Name :
Sinoscite
Model Number :
SNSD
Certification :
ISO 9001:2015
Place of Origin :
Sichuan, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Piece per month
Delivery Time :
Less than 4weeks
Packaging Details :
Standard exporting carton , each product individually wrapped, high density foam protection professional packing.
Frequency Range :
400-6000MHz
Insertion Loss(dB :
≤1.2dB
Coupling :
10±0.5dB
VSWR :
≤1.4 : 1
Directivity :
≥12dB
Impedance :
50Ω
RF Connector :
SMA Female
Dimensions :
114.99*15.4*11mm
Description
Low PIM Passive Combiner Hybrid Coupler 698 - 2700 MHz - 160 dbc
Product Description
400-6000 GHz 10 Dbi Hybrid Directional Coupler With SMA Female Connector Adapter

Features

1.Compact size and light weight
2.Super wide frequency range
3.Lower insertion loss
4.High power

Parameter
Items
Specifications
Frequency Range
400-6000MHz
Insertion Loss
≤1.2dB
Coupling
10±0.5dB
Impedance
50 Ohms
Directivity
≥12dB
VSWR
≤1.4 : 1
Max Input Power
100 W
Operating Temperature
-40℃~65℃
Storage Temperature
-40℃~120℃
Operating Humidity
<95%RH
RF Connector
SMA Female
Dimensions
114.99*15.4*11mm
Net Weight
0.065Kg

400-6000 GHz 10 Dbi Hybrid Directional Coupler With SMA Female Connector Adapter400-6000 GHz 10 Dbi Hybrid Directional Coupler With SMA Female Connector Adapter
