Brass Tin Plated Steel Honeycomb Waveguide Air Vents For Ventilation / Heating
Brass Tin Plated Steel Honeycomb Waveguide Air Vents For Ventilation / Heating
Specifications
Brand Name :
Jovi
Model Number :
1-CF-4
Certification :
CE
Place of Origin :
China
MOQ :
5 pc
Price :
$135/pc-$450/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
within 10-14 wroking days after receiving payment
Packaging Details :
in piece and in wooden case
Product name :
Brass/Tin-Plated Steel Honeycomb Waveguide Air Vents for Ventilation/Heating
Type :
Air Conditioning
Frame :
Frame or Unframe
Cell size :
4.2mm cell size is hot sale
Size :
300mm x 300mm / 300mm x 600mm
Usage :
Outdoor,HVAC system
Description

Brass/Tin-Plated Steel Honeycomb Waveguide Air Vents for Ventilation/Heating

1.Specification:

EMI shielded ventilation panels for ventilation and heating in screened rooms, EMI shielding rooms & Faraday cages

Honeycomb vents are used to shield openings for ventilation or acoustic/visual contact. We can make these vents according to your drawing within a few days, or you can use our standard range from stock.

We can supply Honeycomb vents with frames, pre-drilled with fasteners, or with flow-drilled thread holes. The standard material is aluminum which can be given a nickel finish (or any other finish you choose).

If high shielding levels are required, the use of cross-cell honeycombs is recommended. These are constructed from multiple sections of 6.35 mm or 12.7 mm or 26.3 mm thick honeycombs within a single frame. The shielding performance will improve as airflow is decreased, but not eliminated.

2.Details :

material brass /Tin plated steel
core area size 300mm*300mm hole cell 3.2mm hole cell 4.2mm hole cell 5.2mm
thickness 25mm 300mm*300mm*25mm*3.2mm 300mm*300mm*25mm*4.2mm 300mm*300mm*25mm*5.2mm
thickness 50mm 300mm*300mm*50mm*3.2mm 300mm*300mm*50mm*4.2mm 300mm*300mm*50mm*5.2mm

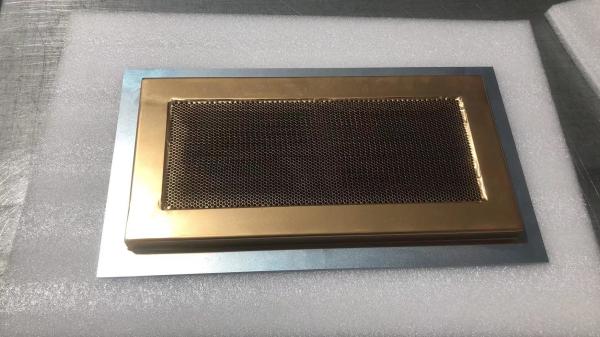

Brass Tin Plated Steel Honeycomb Waveguide Air Vents For Ventilation / Heating

3.Application :

Options
Cross-cell honeycomb for extra high shielding performance
Slant honeycomb 30°, 45°, 60° for outdoor rainproof applications
45° degrees is the most common implementation

Stainless steel, mild steel or brass versions
Cell sizes 1.6mm, 3.2mm, 6.4mm, 9.5mm, 12.7mm, or 19mm (standard 3.2mm)
Gaskets for firm connections

4.FAQ:

1. Can we get a product sample?

Yes, we can offer sample to you.

2. As for the honeycomb, what materials can you offer ?

We can offer brass / stainless steel/ tin plated steel materials....

3. What is packing ?

It is packed with wooden case.
