Zf6 Radiation Protection Lead X Ray Shielding Glass For Nuke Industry
Zf6 Radiation Protection Lead X Ray Shielding Glass For Nuke Industry
Specifications
Brand Name :
Jovi
Model Number :
1-CF-15
Certification :
CE
Place of Origin :
China
MOQ :
1 PC
Price :
USD200-2167/ PC
Payment Terms :
L/ C, T/ T, Western Union
Supply Ability :
3000PCS per month
Delivery Time :
5- 8 work days
Packaging Details :
Wrapped in kraft paper, then packed in wooden case. Size according to lead glass size, usually 5 pcs per case.
Size :
Common 1000* 800mm, 1200* 800mm, customized size accept
Thickness :
40mm
MOQ :
1 pc
Function :
Nuke Industry
Description

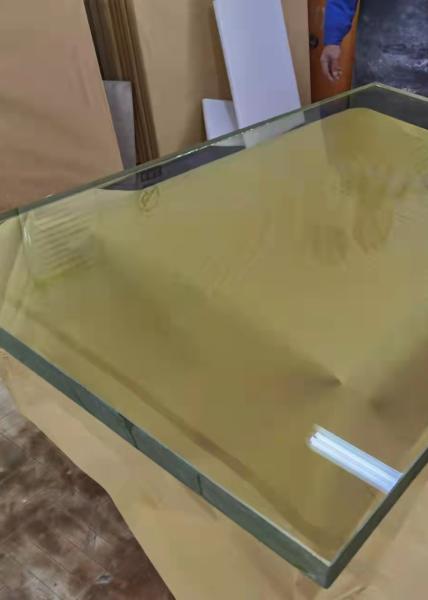

ZF6 Radiation Protection Lead Glass for Nuke Industry

Quick Detail:

· Customized Size accepted

· Stainless Steel frame

· Packing in wooden case

· CE Certificate

Specification:

　 8mm 10mm 12mm 15mm 18mm 20mm 25mm
( 1.7mmpb) ( 2.1mmpb) ( 2.6mmpb) ( 3.3 mmpb) ( 3.96 mmpb) ( 4.4 mmpb) ( 6.71 mmpb)
200* 300 200* 300* 8 200* 300* 10 200* 300* 12 200* 300* 15 200* 300* 18 200* 300* 20 -
300* 400 300* 400* 8 300* 400* 10 300* 400* 12 300* 400* 15 300* 400* 18 300* 400* 20 -
400* 600 400* 600* 8 400* 600* 10 400* 600* 12 400* 600* 15 400* 600* 18 400* 600* 20 -
600* 800 600* 800* 8 600* 800* 10 600* 800* 12 600* 800* 15 600* 800* 18 600* 800* 20 -
600* 900 600* 900* 8 600* 900* 10 600* 900* 12 600* 900* 15 600* 900* 18 600* 900* 20 -
1000* 800 1000* 800* 8 1000* 800* 10 1000* 800* 12 1000* 800* 15 1000* 800* 18 1000* 800* 20 1000* 800* 25
1200* 800 1200* 800* 8 1200* 800* 10 1200* 800* 12 1200* 800* 15 1200* 800* 18 1200* 800* 20 1200* 800* 25
1200* 900 1200* 900* 8 1200* 900* 10 1200* 900* 12 1200* 900* 15 1200* 900* 18 1200* 900* 20 1200* 900* 25
1200* 1000 1200* 1000* 8 1200* 1000* 10 1200* 1000* 12 1200* 1000* 15 1200* 1000* 18 1200* 1000* 20 1200* 1000* 25
1200* 1200 - 1200* 1200* 10 1200* 1200* 12 1200* 1200* 15 1200* 1200* 18 1200* 1200* 20 1200* 1200* 25
1500* 900 - 1500* 900* 10 1500* 900* 12 1500* 900* 15 1500* 900* 18 1500* 900* 20 1500* 900* 25
1500* 1000 - 1500* 1000* 10 1500* 1000* 12 1500* 1000* 15 1500* 1000* 18 1500* 1000* 20 1500* 1000* 25
1500* 1200 - 1500* 1200* 10 1500* 1200* 12 1500* 1200* 15 1500* 1200* 18 1500* 1200* 20 1500* 1200* 25
1600* 1000 - 1600* 1000* 10 1600* 1000* 12 1600* 1000* 15 1600* 1000* 18 1600* 1000* 20 1600* 1000* 25
1600* 1200 - 1600* 1200* 10 1600* 1200* 12 1600* 1200* 15 1600* 1200* 18 1600* 1200* 20 1600* 1200* 25
1800* 1000 - 1800* 1000* 10 1800* 1000* 12 1800* 1000* 15 1800* 1000* 18 1800* 1000* 20 1800* 1000* 25
1800* 1200 - 1800* 1200* 10 1800* 1200* 12 1800* 1200* 15 1800* 1200* 18 1800* 1200* 20 1800* 1200* 25
2000* 1000 - 2000* 1000* 10 2000* 1000* 12 2000* 1000* 15 2000* 1000* 18 2000* 1000* 20 2000* 1000* 25
2000* 1200 - 2000* 1200* 10 2000* 1200* 12 2000* 1200* 15 2000* 1200* 18 2000* 1200* 20 2000* 1200* 25
2400* 1200 - 2400* 1200* 10 2400* 1200* 12 2400* 1200* 15 2400* 1200* 18 2400* 1200* 20 2400* 1200* 25

Description:

Lead glass is widely and mainly used for X-ray CT Installation Projects.

To provide viewing of the patient in the x-ray room while protecting the operator, lead glass

viewing windows can be furnished in the barrier.

Lead glass can be installed in multiple layers to provide a lead equivalency to the lead in the wall in

which it is installed.

Application:

Lead glass is mainly used in the manufacturing of optical instruments, art vessels, etc.

Lead glass is also known as medical X- ray radiation-proof lead glass plate in the medical field.

Lead glass is mainly used for diagnostic X- ray machine rooms, CT, ECT, PET, ct- pet and other machine

rooms,

as well as observation of Windows on the protective screen of protective doors.

Zf6 Radiation Protection Lead X Ray Shielding Glass For Nuke Industry

FAQ:

ZF6 Radiation Protection Lead Glass for Nuke Industry

Q1. What about the lead time?

A: Usually 5-7 working days.

Q2. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by Air and Sea.

Q5. How to proceed with an order for lead glass?

A: Firstly let us know your requirements or size, thickness, and quantity.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms.

Fourthly We arrange the production.
