Electrodeposited Pure Copper Foil Shielding 1320mm Width
Electrodeposited Pure Copper Foil Shielding 1320mm Width
Specifications
Brand Name :
Jovi
Model Number :
1-CF-1
Certification :
SGS
Place of Origin :
China
MOQ :
200kg
Price :
USD + 18-20 + kg
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20MT per month
Delivery Time :
5-8 work days
Packaging Details :
Wooden Case
Product Name :
1320mm Width Electrodeposited Copper Foil Shielding
Packing :
Wooden Case
Width :
1320mm
MOQ :
200kg
Description
1320mm Width Electrodeposited Pure Copper Foil Shielding

Quick Detail:

1. 4oz Thickess

2. In roll and in wooden case, wooden case gross weight 35kg

Description:

1. Copper serves as an eddy current shield for EMI protection

2. High performance, vertically-supported modular enclosure.

3. Necessary to prevent RF noise from entering into the MRI scanner and distorting the image. Copper is generally considered the best shielding for MRI rooms compared with Al and GL..

Application:

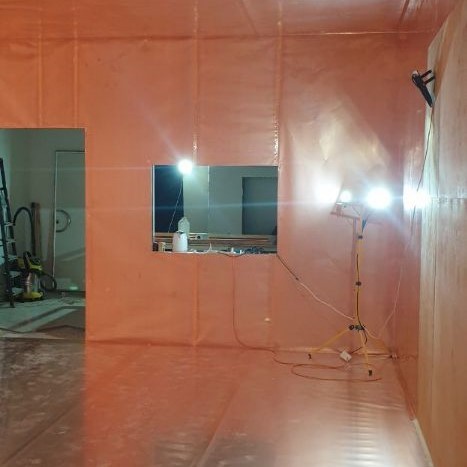

Copper foil can be well used in MRI RF Room Shielding Installation and Faraday Cage.

Specification:

Quality Items General Technical Terms
Normal Thickness 2 oz 0.07 mm

3 oz

0.105 mm

4 oz

0.140 mm

5 oz

0.175 mm

6 oz

0.210 mm
Area Weight (g/sqm) 560-610 838-960 1100-1280 1380-1600 1650-1920

Tensile Strength

(kg/sqmm)

 Room Temperature ≥28 ≥28 ≥28 ≥28 ≥28

Elongation

(%)

 Room Temperature ≥10 ≥10 ≥10 ≥10 ≥10

Leakage Points

(Points/sqm)

 No
High Temperature Anti-Oxidization Performance(180℃/h) No Oxidization
Width(mm) 1280-1295 1320-1370 1320-1370 1320-1370 1320-1370
Width Tolerance(mm) (-2.0,+2.0)

Electrodeposited Pure Copper Foil Shielding 1320mm Width
