Emc Testing Honeycomb Waveguide Air Vents Faraday Cage Material High Shielded Effective
Emc Testing Honeycomb Waveguide Air Vents Faraday Cage Material High Shielded Effective
Emc Testing Honeycomb Waveguide Air Vents Faraday Cage Material High Shielded Effective
Emc Testing Honeycomb Waveguide Air Vents Faraday Cage Material High Shielded Effective
Specifications
Brand Name :
Jovi
Model Number :
1-CF-4
Place of Origin :
Beijing, China
MOQ :
1 piece
Price :
USD 170 piece
Payment Terms :
T/T, L/C, D/A
Supply Ability :
200pieces per month
Delivery Time :
7-14days
Packaging Details :
In carton box
Material :
Stainless Steel
Function :
Ventilaion
Design Style :
Traditional
Size :
300mm x 300mm/300mm*600mmc/Customizable
Application :
Hospital
Description

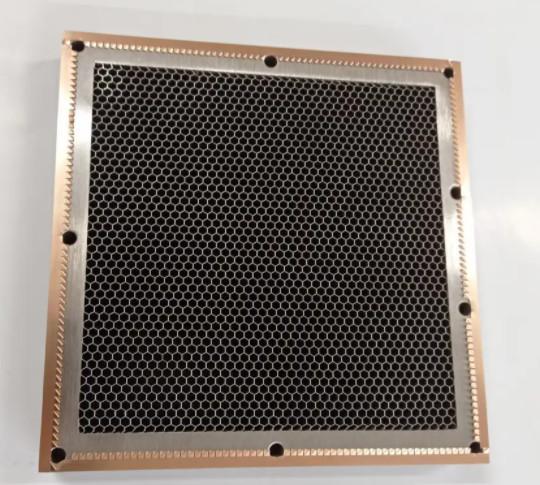

Honeycomb Vent

Honeycomb Vent is a special but indispensable part of a MRI/ RF shielding room

and shielded cabinet. It is usually using for air pass. Its shielding range is ≤20GHz.

In common, we distinguish it from its material, thickness, cell hole size, outer size,
with or without frame.
We have Stainless Steel, Tin plate, Brass, even Aluminum materials.
Emc Testing Honeycomb Waveguide Air Vents Faraday Cage Material High Shielded Effective
Product Specification
Material
Thickness
Cell Hole Size
Outer Size
Frame
Stainless Steel
25mm, 50mm, Customized.
3.2mm, 4.8mm, 5.2mm, 6.2mm, 8.2mm
300*300, 300*600, 600*600, Customized
H type, C type, without frame.
Tin Plate
Brass
Aluminum

Product features

the cut-off waveguide ventilation window is composed of hexagonal honeycomb core material with frame.

On the premise of ensuring efficient ventilation, the principle of high pass and low resistance of cut-off waveguide

is used to effectively shield electromagnetic wave. Generally speaking, the cut-off principle of cut-off waveguide is:

l ≥ 5D (L: waveguide length, D: maximum diameter of waveguide section), Therefore, the shielding effectiveness of

the cut-off waveguide ventilation window depends on the length of the waveguide (i.e. the thickness of the honeycomb

core and the size of the aperture of the honeycomb core)

Emc Testing Honeycomb Waveguide Air Vents Faraday Cage Material High Shielded Effective

Emc Testing Honeycomb Waveguide Air Vents Faraday Cage Material High Shielded Effective
