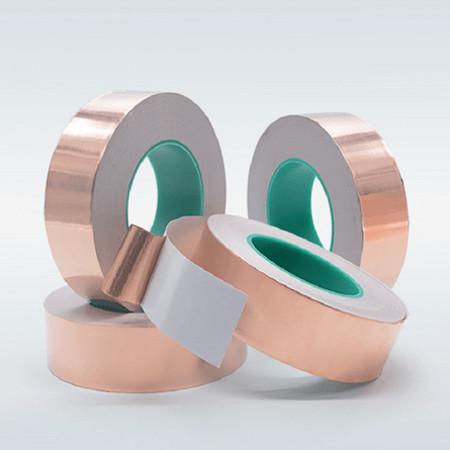

0.06mm Thick Mri Room Conductive Adhesive Copper Tape Customized Width
0.06mm Thick Mri Room Conductive Adhesive Copper Tape Customized Width
Specifications
Brand Name :
Jovi
Model Number :
1-CF-7
Certification :
SGS
Place of Origin :
China
MOQ :
1 roll
Price :
USD 10-39 per roll
Payment Terms :
L/C, T/T
Supply Ability :
28000/roll per month
Delivery Time :
7-10 working days
Packaging Details :
Paper carton/ wooden case
Product Name :
0.06mm Thick MRI Room Copper Foil Double Conductive Tape
Thickness :
0.06mm
Adhesive type :
conductive adhesive or normal adhesive
Width :
25mm, 50mm or customized
Length :
25m/roll, 50m/roll or customized
Application :
MRI Room, RF Cage
Description

0.06mm Thick MRI Room Copper Foil Double Conductive Tape

Product Description

The purity of copper foil is higher than 99.95%, and its function is to eliminate electromagnetic(EMI) interference,

isolate electromagnetic waves on the human body injury, and avoid unwanted voltage and current without

affecting functionality.

In addition, electrostatic discharge after the ground has a good effect.

Paste strong, good electrical properties, according to customer requirements, are cut into various specifications.

Specification of 0.06mm thickness copper tape

Specifications:
Item Unit Specification Texting Standard Texting Method Others
Copper Thickness um 25 25+ 3 　 　
Basis Weight g/ m2 160 160+ 10 　 　
Width mm 25 ± 0. 2mm 　 　
Copper Foil % 99. 99 99. 99 　 　
Glue Thickness um 25 25+ 3 ASTM- 1000 　
Composition - 　 　 　 　
Total thickness um 50 50+ 5 　 　
Steel Adhesion kg/ 1" 0. 8 0. 8 ASTM- 1000 Initial adhesion tester
Initial Adhesion kg/ 1" 1 1 J. DOW Electronic Stripping Tester
Rentention(cohesion) kg/ h 48 48 PSPC- 7 Viscosity Tester
Weather Resistance ℃ minus10- 120℃ minus10- 120℃ 　 　
Inventory Condition - - temperature: 25℃ 　 　
RH: 65% 　 　
Insulation Resistance - 0. 01- 0. 06 0. 01- 0. 06 　 Low dc resistance tester
Inventory Validity 　 six month 　 　

Application

Suitable for all kinds of transformers, mobile phones, computers, PDA, PDP, LCD monitors, notebook

computers, photocopiers, and other electronic products where domestic electromagnetic shielding.

Copper foil tape Is a metal tape, mainly used in electromagnetic shielding.

And other digital products. Currently, on the market most commonly used copper foil tape, general test

performance is as follows: copper foil tape Material: CU 99.98%.
