25mm 5.2mm Brass Ventilation Plate Honeycomb Ventilation Panels With Frame
25mm 5.2mm Brass Ventilation Plate Honeycomb Ventilation Panels With Frame
25mm 5.2mm Brass Ventilation Plate Honeycomb Ventilation Panels With Frame
25mm 5.2mm Brass Ventilation Plate Honeycomb Ventilation Panels With Frame
Specifications
Brand Name :
Jovi
Model Number :
1-CF-4
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
$130/pc-$380/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs per month
Delivery Time :
within 10-14 wroking days after receiving payment
Packaging Details :

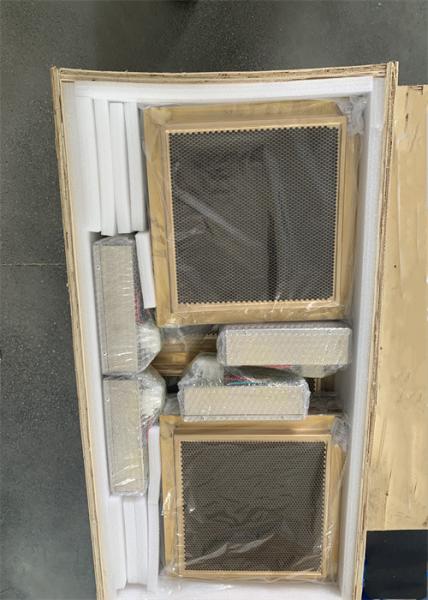

in piece and in wooden case
Product Name :
MRI Room Shielding Use Tinplate Honeycomb Waveguide Air Vents With Frame
Material :
Tinplate
Standard Size of honeycomb :
300mm*300mm*25mm*5.2mm
Usage :
MRI RF Room EMC Room
MOQ :
1 pcs
Packing :
Wooden case
Description

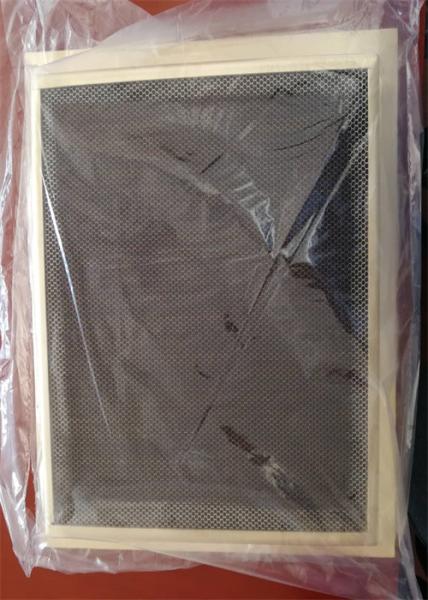

MRI Room Shielding Use Tinplate Honeycomb Waveguide Air Vents With Frame

Description:

Honeycomb window guide through the strom is widely used in the field of electromagnetic shielding,

shielding cabinet for shielding room air circulation and good shielding performance. Depending on the

pore size and thickness, the shielding effectiveness can be improved.

We can offer different specificaition Honeycomb Vent product, 3.2mm, 4.2mm, 4.8mm, 5.2mm, 6.2mm,

8.2mm cell size, 25mm thickness or 50mm thickness, 300mm x 300mm, 300mm x 600mm, 600mm x

600mm size honeycomb vent.

Steel, Brass, Copper, three type honeycomb vent products we can offer for rf shielding room.

Honeycomb Filter Specification:

Technical Parameter
Cell Diameter 4.80mm
Core Thickness 25.00mm
Frequency Band Attenuation
100KHz > 100dB
1MHz- 10MHz > 100dB
10MHz- 30MHz > 100dB
3MHz- 1G Hz > 100dB
1GHz- 10GHz > 100dB
Available Thickness
12.5mm 25mm 50mm
Available Material
Stainless Steel Brass Tinplate
Available Size
The largest vent size is 600mm*900mm
