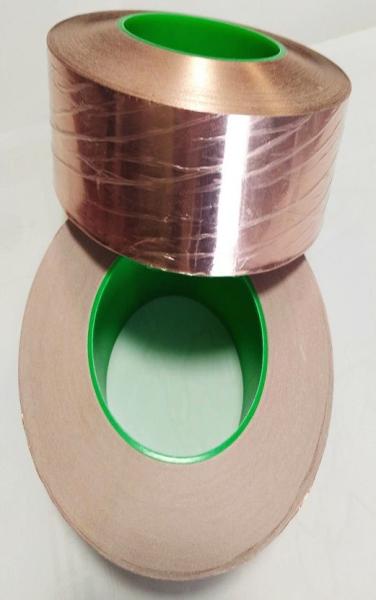

50mm 0.1mm Sticky Back Conductive Adhesive Copper Tape For MRI Room
50mm 0.1mm Sticky Back Conductive Adhesive Copper Tape For MRI Room
Specifications
Brand Name :
Jovi
Model Number :
1-CF-7
Certification :
SGS
Place of Origin :
China
MOQ :
1 roll
Price :
USD 27-32 per roll
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
28000/roll per month
Delivery Time :
5-8 work days
Packaging Details :
Paper carton/ wooden case
Color :
Red Copper Color
Width :
50mm
Length :
50m/roll
Material :
99.99% Copper
Thickness :
0.1mm
Application :
MRI Room
Description

MRI Room 0.1mm Thickness Conductive Adhesive Copper Tape

Product Description:

The purity of copper foil is higher than 99.95%, and its function is to eliminate electromagnetic(EMI) interference,

isolate electromagnetic waves on the human body injury, avoid unwanted voltage and current without affecting functionality.

In addition, electrostatic discharge after the ground has a good effect.

Paste strong, good electrical properties, according to customer requirements cut into a variety of specifications.

We can offer different specification copper foil tapes products for you, thickness with 0.06mm, 0.1mm or 0.15mm thickness, and width is with 25mm or 50mm, while the maximum is 380mm. As for the length, it is with 25m or 50m length. Surely, we can offer customized size for you.

Specification:

Specification(0.06mm thickness)
Item Unit Specification Texting Standard Texting Method Others
Copper Thickness u 25 25± 3 　 　
Basis Weight g/ m2 160 160± 10 　 　
Copper Foil % 99.95 99.95 　 　
Glue Thickness u 35 35+ 3 ASTM- 1000 　
Composition ----- Acrylic glue Acrylic glue 　 　
Total thickness u 60 60+5 　 　
Steel Adhesion kg/ 1" 0.8 0.8 ASTM- 1000 Initial adhesion tester
Initial Adhesion kg/ 1" 1 1 J.DOW Electronic Stripping Tester
Rentention(cohesion) kg/ h 48 48 PSPC-7 Viscosity Tester
Weather Resistance ℃ minus10- 120℃ minus10-120℃ 　 　
Inventory Condition ----- ----- temperature:25℃ 　 　
　 　 　 RH:65% 　 　
Insulation Resistance Ω 0.01- 0.06 0.01-0.06 　 　
Inventory Validity 　 　 6 month 　 　

50mm 0.1mm Sticky Back Conductive Adhesive Copper Tape For MRI Room

Application:

Suitable for all kinds of transformers, mobile phones, computers, PDA, PDP, LCD monitors, notebook computers, photocopiers,

and other electronic products where domestic electromagnetic shielding.

The copper foil tape Is a metal tape, mainly used in electromagnetic shielding,that is electrical shielding and magnetic signals of shielded two kinds,

Electrical shielding mainly relies on conductive properties of copper itself, which is excellent, But magnetic shielding foil relies on conductive substance "Nickel ",

which is on the surface of acrylic adhesive, to achieve magnetic shielding effect. Copper foil tape is widely used in mobile phones, notebook computers,

and other digital products. Currently, on the market most commonly used copper foil tape, general test performance is as follows: copper foil tape Material: CU 99.98%.
