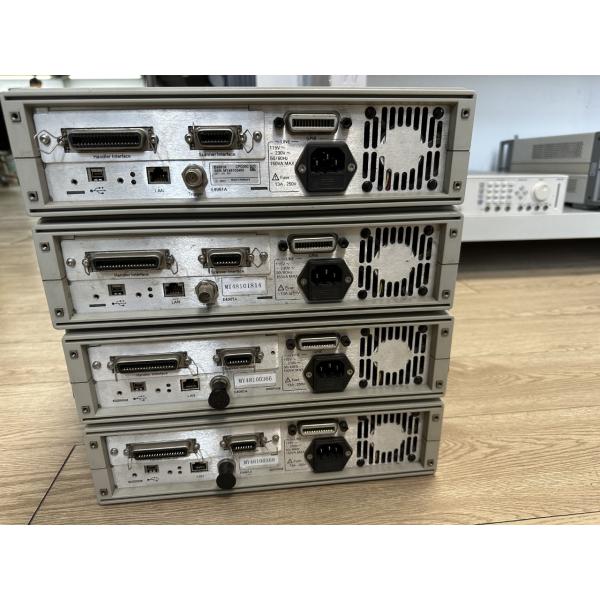

Tested in full working condutions Keysight Agilent E4981A Capacitance Meter Precision LCR Meter

Description of Keysight Agilent E4981A

The E4981A capacitance meter offers a high-speed with reliable measurements for ceramic capacitor testing in the production lines. The E4981A realizes the measurement capabilities of capacitance from small to large values with accurate measurements. The E4981A capacitance meter contributes improvements of the test throughput, while attaining excellent component quality for ceramic capacitor testing.

Measurement Time

• High speed measurement: 2.3 ms (1 MHz), 3.0 ms (1 kHz), 11.0 ms (120 Hz)

Basic Accuracy

• Accurate C-D testing: 0.07%, 0.0005

More Features

• 9 Bin Sorting
• 256 Multi-channel correction
• Compatible SCPI command and Handler/Scanner interfaces with the 4268A and 4288A
• Test signal level compensation for high value ceramic capacitor tests
• Versatile PC connectivity (LAN, USB and GPIB)

A Complete Solution that Replaces the 4268Aand 4288A

• Fast measurement speed – 2 ms (From trigger to EOM at 1 MHz)
• Accurate and repeatable measurements, even small capacitance can be measured.
• Wide measurement range from small to large capacitance 0 F to 2.0 mF
  • (0 F to 1.5 nF/1 MHz)
  • (68 pF to 200 nF/1 kHz)
  • (6.8 nF to 2 mF/120 Hz)
• Compatibility with the 4268A and 4288A
  • SCPI commands
  • Handler I/F
  • Scanner I/F
• Enhanced functions for production test
  • Enhanced contact failure detections
  • Synchronous source
  • Frequency shift (±1%, ±2%) at 1 MHz
  • Faster data transfer

List of Options
