Keysight Agilent DAQ970A Data Acquisition System

Description of Keysight Agilent DAQ970A Data Acquisition System

Get the next-generation data acquisition (DAQ) system with a three-slot mainframe and your choice of nine plug-in modules. Interface with the DAQ using Keysight BenchVue DAQ software or use the intuitive graphical front panel with task-oriented, self-guiding menus. The DAQ970A / DAQ973A data acquisition systems have high-quality switching and an advanced 6.5 digit multimeter built-in that allows you to measure accurately.

Highlights of Keysight Agilent DAQ970A Data Acquisition System

• Three-slot mainframe with built-in 6.5 digit DMM
• Choice of USB, LAN, or GPIB interfaces for easy connectivity to your PC
• Graphical Web interface for point and click monitor and control
• Nine switch and control plug-in modules
• USB flash drive support to copy/log data in standalone applications
• Measures and converts 12 different input signals: temperature with thermocouples, RTDs and thermistors, dc/ac volts, 2- and 4-wire resistance, frequency and period, dc/ac current, and capacitance

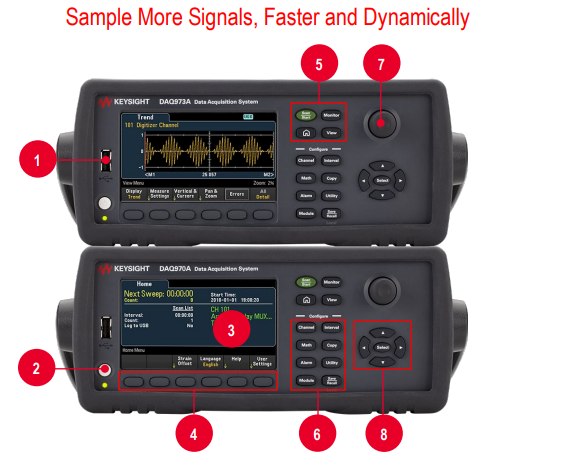

1. USB drive

2. On/Standby switch with LED indicator

3. Color LCD Display / GUI

4. Softkeys

5. Measurement operation keys

6. Measurement configuration keys (to set measurement parameters)

7. Knob

8.Cursor navigation keypad

Key DAQ970A and DAQ973A Capabilities

Types of measurements: Temperature, voltage, current, resistance, frequency, diode and capacitance, direct strain and bridge strain

Digital Input/Output: Up to 48-bits

Analog output: -10 V to +10 V, 20 mA

Multiplexing: Maximum 120 (1-wire), 60 (2-wire) channels

Matrix switching: Maximum 96 cross points

General purpose: Maximum 60 switches

RF multiplexing: Maximum 24 channels, 2 GHz

Simultaneous sampling: Maximum 12 channels, up to 800 kSa/s, 24-bit resolution

Interface: Graphic web, USB front/rear, LAN/LXI, GPIB (only for DAQ973A)

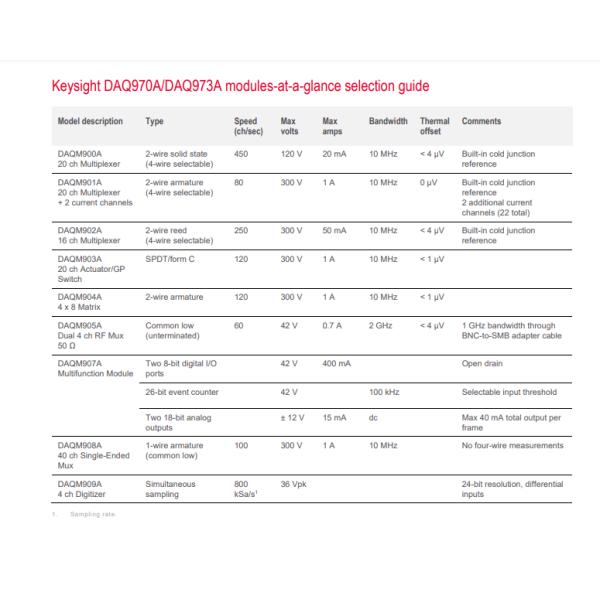

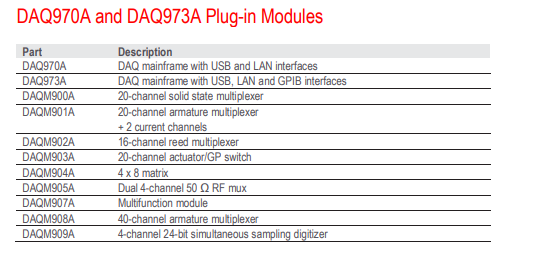

List of Plug-in Modules of Keysight DAQ970A

Standard connectivity to the PC

The DAQ970A has built-in Gigabit LAN and USB 2.0. With the standard LAN connection, you also get the added benefit of a graphical Web interface for easy configuration of measurements and monitoring of results using a standard Web browser. In addition to LAN and USB, the DAQ973A comes with a built-in GPIB interface.

Built-in signal conditioning to get your job done faster

Whether you need to measure temperature, ac/dc volts, resistance, frequency, or current, the DAQ970A/DAQ973A can handle it. The internal auto-ranging DMM directly measures 12 different functions, eliminating the need for expensive external signal conditioning. And our unique design allows complete per channel configurability for maximum flexibility and quick, easy set up. It’s like having an independent, high-performance DMM behind each channel

Virtual front panel control via Web interface

The built-in graphical Web interface provides easy access and control of the instrument using a Web browser such as Chrome and Internet Explorer. Using this interface, you can configure measurements, define and execute scan lists, or monitor measurement results from anywhere on the network. Simply enter the instrument host name or IP address into the browser URL and gain access to the instrument’s front panel capabilities.

• Specify per channel measurement configuration

• Monitor measurement readings

• Define and execute switch scans

• View error queue

• View and save data

• View instrument information like module configuration, relay counts, firmware revisions, and more

Additionally, since the Web interface is built into the instrument, you can access it on any operating system that supports a Web browser without having to install any special software. Password protection and LAN lock out are also provided to limit access. The graphical Web interface makes it easy to configure measurements, set up and execute scans or troubleshoot your designs from anywhere on the network.

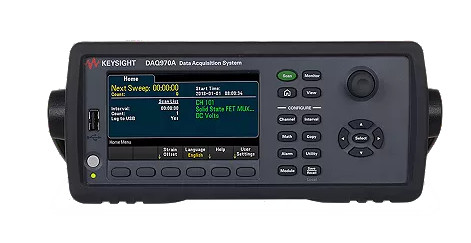

Large 4.3” color display for ease of setup, configure and viewing data

The DAQ970A/DAQ973A 4.3” graphical color display and soft keys are designed to be intuitive for easy configuration and measurement displays in multiple formats. You can view the measurements in numeric digit, bar graph, trend chart and histogram, giving you a quick overview of your measurement.
